26 MT 160

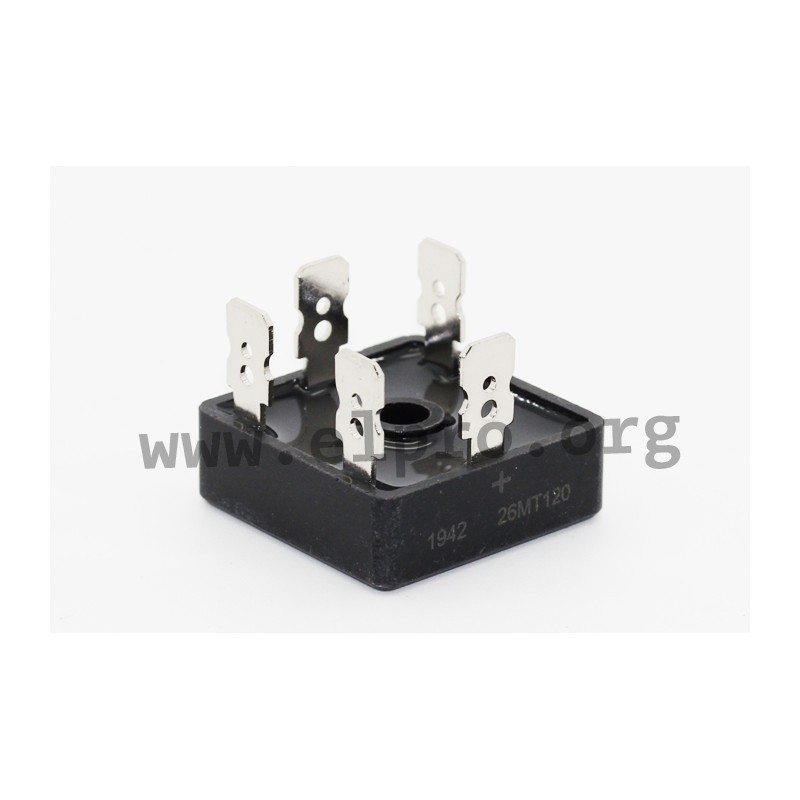

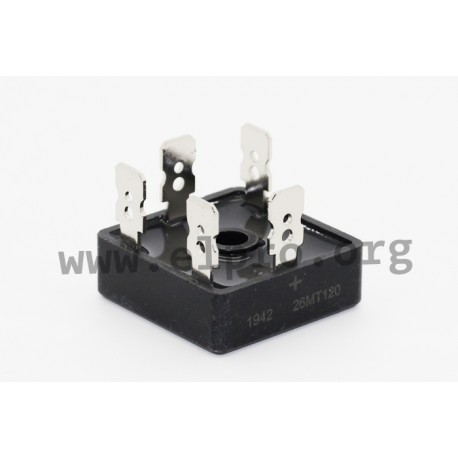

Vishay 3-phase bridge rectifier series VS-26MT and VS-36MT

  • 3-phase power bridge rectifiers
  • in an epoxy housing with cooling plate
  • maximal solderability: 260°C (10s)
  • operating temperature: -55 to +150°C
  • forward current: 25 to 35A
VS-26MT160, 3-phase power bridges 25 to 35A

26 MT 160

1956 26 MT 160 VS-26MT160 VS-26MT160 Vishay 3-phase bridge rectifier series VS-26MT and VS-36MT. 3-phase power bridge rectifiers in an epoxy housing with cooling plate maximal solderability: 260°C (10s) operating temperature: -55 to +150°C forward current: 25 to 35A

Specifications

manufacturer
Manufacturer's name VS-26MT160

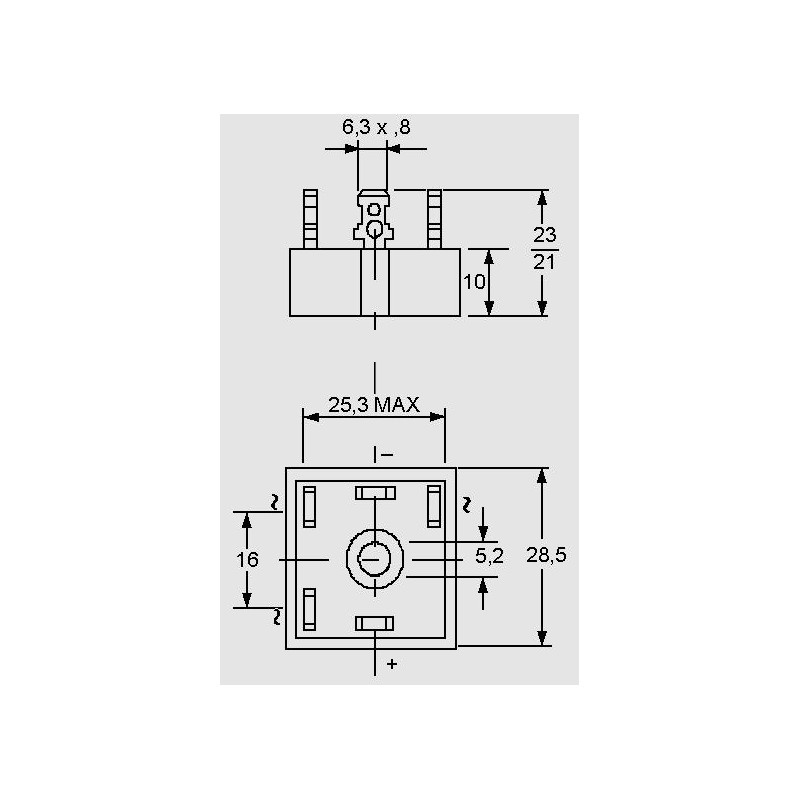

Case 3-phase...
(Max.) peak recurrent reverse voltage [V] 1600
Forward voltage [V] 1,26
(Max.) average forward (rectified) current [A] 25
Reverse current [µA] 100
(Max.) RMS voltage [V] 1700
Data Sheet

Unit price

10,19 €

Stock: 67
Further delivery:
CW 11/2025
