> Passive elements>Potentiometers>Trimmer potentiometers>Vishay SMD multiturn trimmers, 0,25W, 1,4", TS63Y series>64 Y 1 k SMD

Manufacturers

64 Y 1 k SMD

0.25 W, SMD

* standard tolerance: ±10%
* resistive element: cermet
* temperature range: -55...+155°C
* climatic category: 55/125/56
* sealing: IP67
* mechanical travel: 15 ±5
* operating torque, end position: clutch action
* operating torque (max.): 1.5Ncm
* weight: 0.5

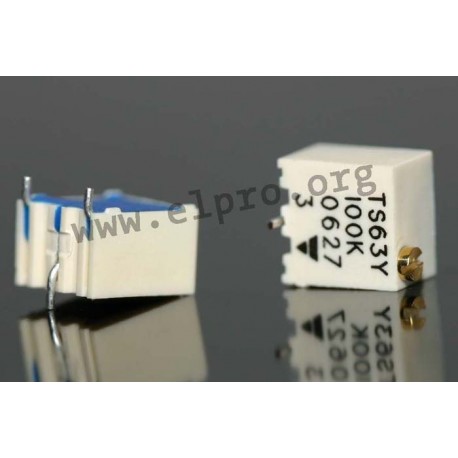

Vishay series TS63Y

64 Y 1 k SMD

6190 64 Y 1 k SMD TS63Y102KT20 TS63Y102KT20 0.25 W, SMD. * standard tolerance: ±10%* resistive element: cermet* temperature range: -55...+155°C* climatic category: 55/125/56* sealing: IP67* mechanical travel: 15 ±5* operating torque, end position: clutch action* operating torque (max.): 1.5Ncm* weight: 0.5

Specifications

manufacturer
Manufacturer's name TS63Y102KT20
Resistance [Ω] 1k
Power, max. [W] 0,25
Data Sheet

Unit price

2,29 €

Stock: 400
Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
