> Passive elements>Potentiometers>Trimmer potentiometers>Vishay multiturn trimmers, 0,5W, precision trimmers 3/8", T93 series>64 X 500 k

Manufacturers

64 X 500 k

3/8, 0.5W

* developed for compact packing as the housing width is only 5mm
* wiper in precise multi-functional finger design
* contact resistance variation <1% (typical)
* standard tolerance: ±10%
* resistive element: cermet
* temperature range: -55...+155°C

64 X

64 X 500 k

6214 64 X 500 k 64 X 500 k 3/8, 0.5W. * developed for compact packing as the housing width is only 5mm* wiper in precise multi-functional finger design* contact resistance variation &lt;1% (typical)* standard tolerance: ±10%* resistive element: cermet* temperature range: -55...+155°C

Discontinued items. Only remainder of stock available.

Specifications

Resistance [Ω] 500k
Power, max. [W] 0,5

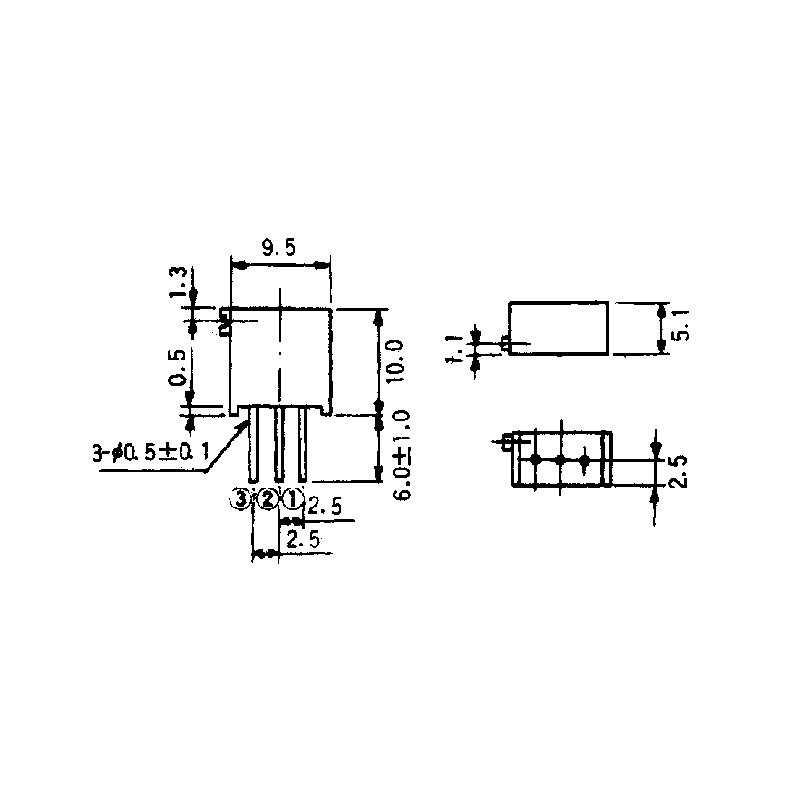

Data Sheet

Unit price

0,291 €

Stock: 43

Minimum order quantity 1 to 18 units or multiples of 25 plus 0 to 18 .
