> Passive elements>Potentiometers>Trimmer potentiometers>Vishay multiturn trimmers, 0,5W, precision trimmers 3/8", T93 series>64 W 4,7 k

Manufacturers

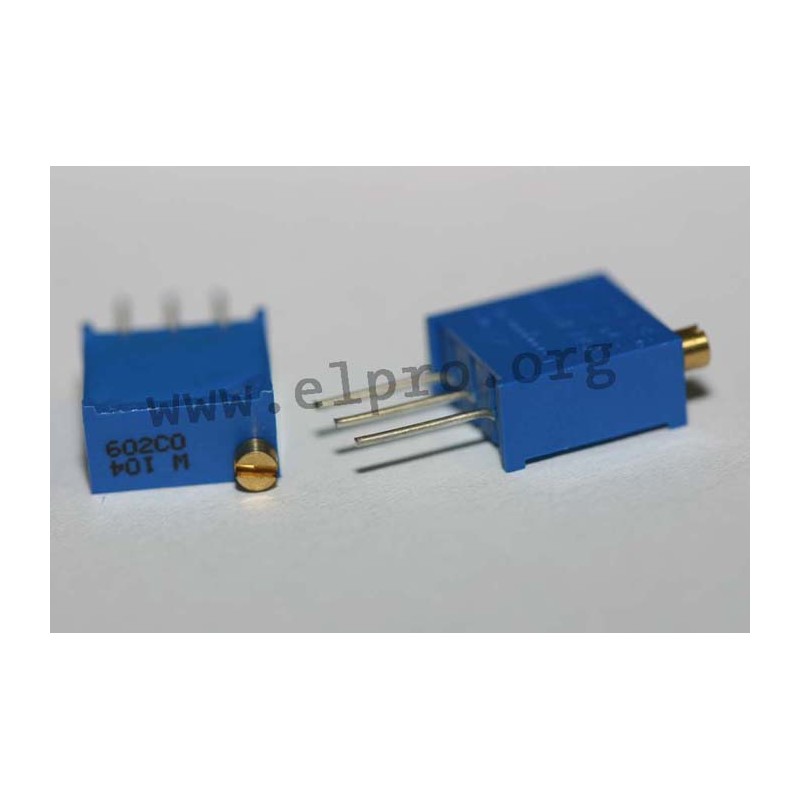

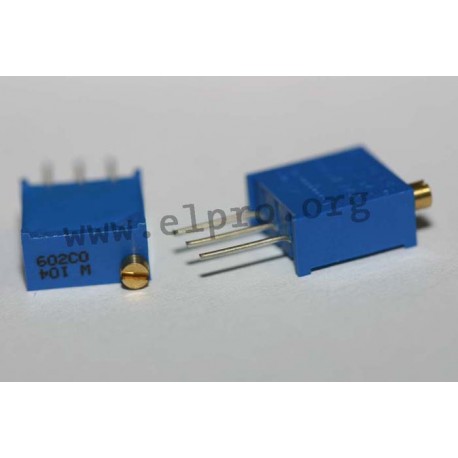

64 W 4,7 k

3/8, 0.5W

* developed for compact packing as the housing width is only 5mm
* wiper in precise multi-functional finger design
* contact resistance variation <1% (typical)
* standard tolerance: ±10%
* resistive element: cermet
* temperature range: -55...+155°C

64 W

64 W 4,7 k

6184 64 W 4,7 k T93YA472KT20 T93YA472KT20 3/8, 0.5W. * developed for compact packing as the housing width is only 5mm* wiper in precise multi-functional finger design* contact resistance variation &lt;1% (typical)* standard tolerance: ±10%* resistive element: cermet* temperature range: -55...+155°C

Specifications

manufacturer
Manufacturer's name T93YA472KT20
Resistance [Ω] 4,7k
Power, max. [W] 0,5
Data Sheet

Unit price

0,84 €

Stock: 3370
Next incoming goods:
CW 07/2025
2000 units

Further delivery:
CW 12/2025

Minimum order quantity 10 units or
multiples of 10.
