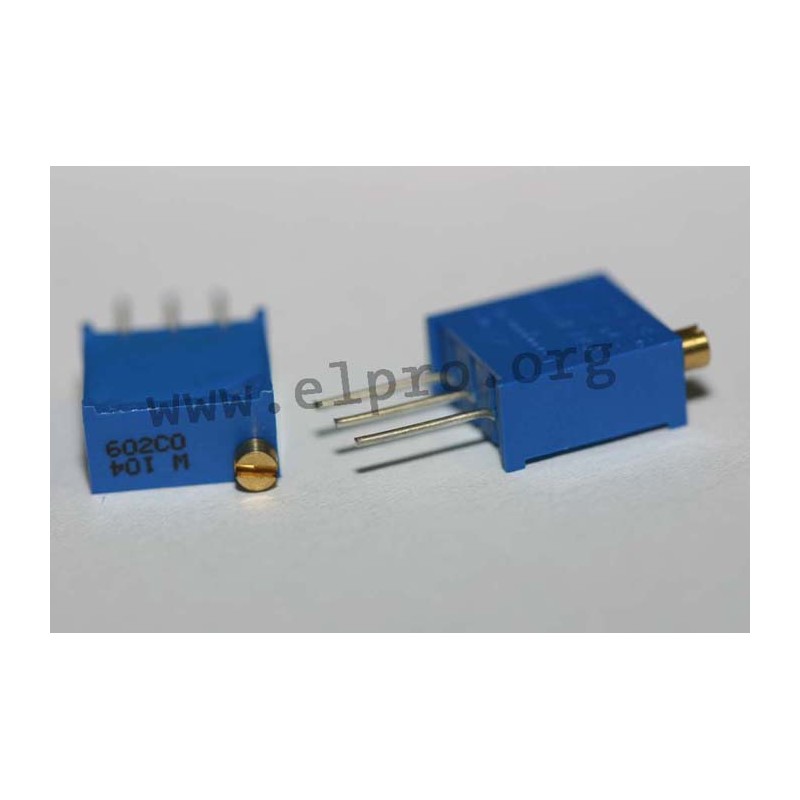

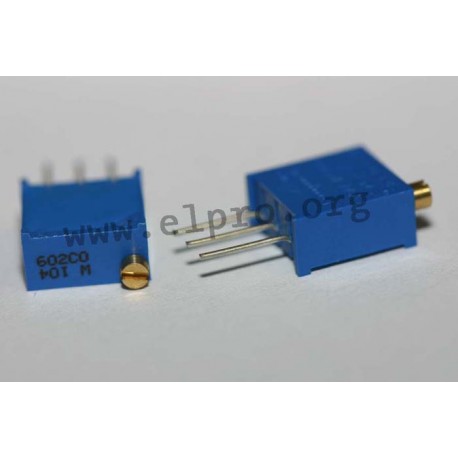

64 W 100 k

3/8, 0.5W

• developed for compact packing as the housing width is only 5mm
• wiper in precise multi-functional finger design
• contact resistance variation <1% (typical)
• standard tolerance: ±10%
• resistive element: cermet
• temperature range: -55...+155°C

64 W

64 W 100 k

6175 64 W 100 k T93YA104KT20 T93YA104KT20 3/8, 0.5W. * developed for compact packing as the housing width is only 5mm* wiper in precise multi-functional finger design* contact resistance variation &lt;1% (typical)* standard tolerance: ±10%* resistive element: cermet* temperature range: -55...+155°C

Specifications

manufacturer
Manufacturer's name T93YA104KT20
Resistance [Ω] 100k
Power, max. [W] 0,5
Data Sheet

Unit price

0,84 €

Stock: 1.180
Next incoming goods:
CW 18/2025
1.200 units

Further delivery:
CW 30/2025

Minimum order quantity 10 units or
multiples of 10.
