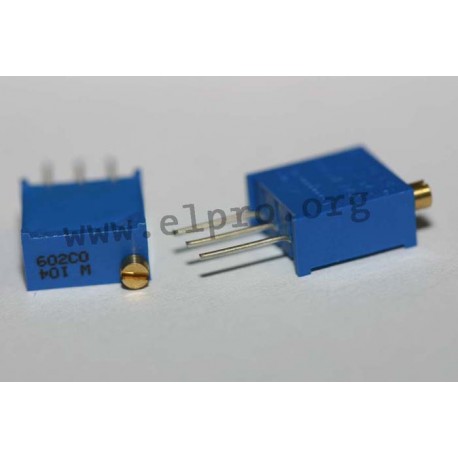

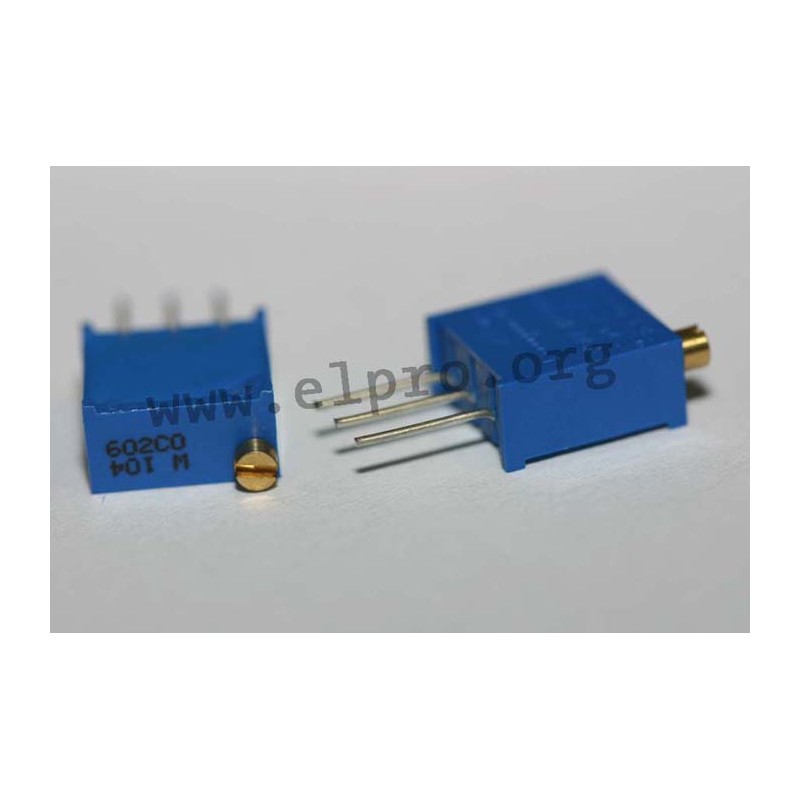

64 W 10 R

3/8, 0.5W

• developed for compact packing as the housing width is only 5mm
• wiper in precise multi-functional finger design
• contact resistance variation <1% (typical)
• standard tolerance: ±10%
• resistive element: cermet
• temperature range: -55...+155°C

64 W

64 W 10 R

6174 64 W 10 R 64 W 10 R 3/8, 0.5W. * developed for compact packing as the housing width is only 5mm* wiper in precise multi-functional finger design* contact resistance variation &lt;1% (typical)* standard tolerance: ±10%* resistive element: cermet* temperature range: -55...+155°C

Discontinued items. Only remainder of stock available.

Specifications

Resistance [Ω] 10
Power, max. [W] 0,5
Data Sheet

Unit price

0,291 €

Stock: 58

Minimum order quantity 1 to 8 units or multiples of 25 plus 0 to 8 .
