> Passive elements>Potentiometers>Trimmer potentiometers>Vishay multiturn trimmers, 0,25W, precision trimmers 1/4", T63 series>3266 Z 47 k

Manufacturers

3266 Z 47 k

1/4, 0.25 Watt

* vertical
* standard tolerance: ±10%
* resistive element: Cermet
* sealing: IP67
* mechanical travel: 15 ±5
* operating torque, end position: clutch action
* operating torque (max.): 1 Ncm
* weight: 0.5g

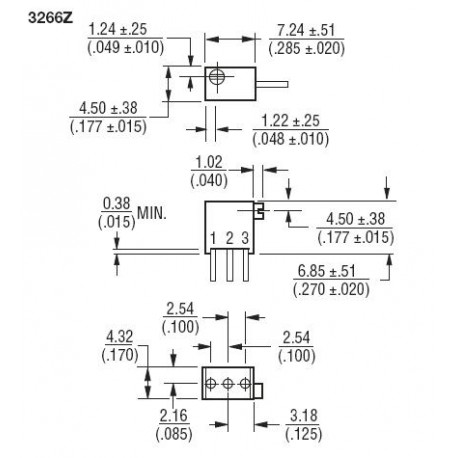

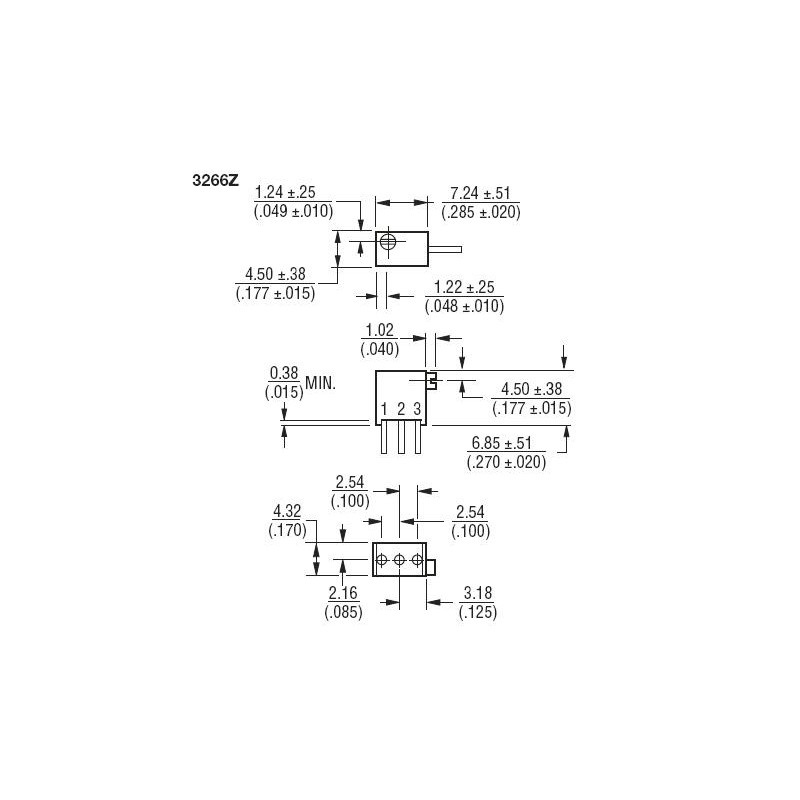

dimensions 3266 Z

3266 Z 47 k

6169 3266 Z 47 k 3266 Z 47 k 1/4, 0.25 Watt. * vertical* standard tolerance: ±10%* resistive element: Cermet* sealing: IP67* mechanical travel: 15 ±5* operating torque, end position: clutch action* operating torque (max.): 1 Ncm* weight: 0.5g

Discontinued items. Only remainder of stock available.

Specifications

Resistance [Ω] 47k
Power, max. [W] 0,25
Data Sheet

Unit price

0,99 €

Stock: 15
