> Passive elements>Potentiometers>Trimmer potentiometers>Vishay multiturn trimmers, 0,25W, precision trimmers 1/4", T63 series>3266 W 1 M

Manufacturers

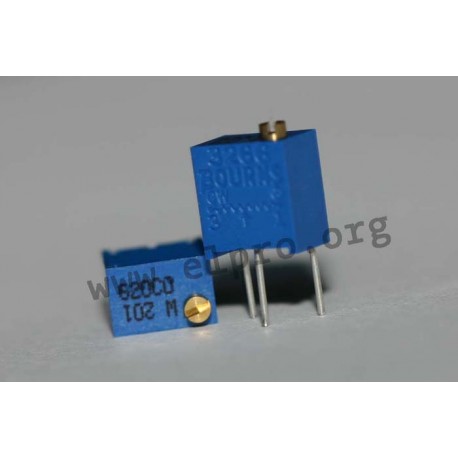

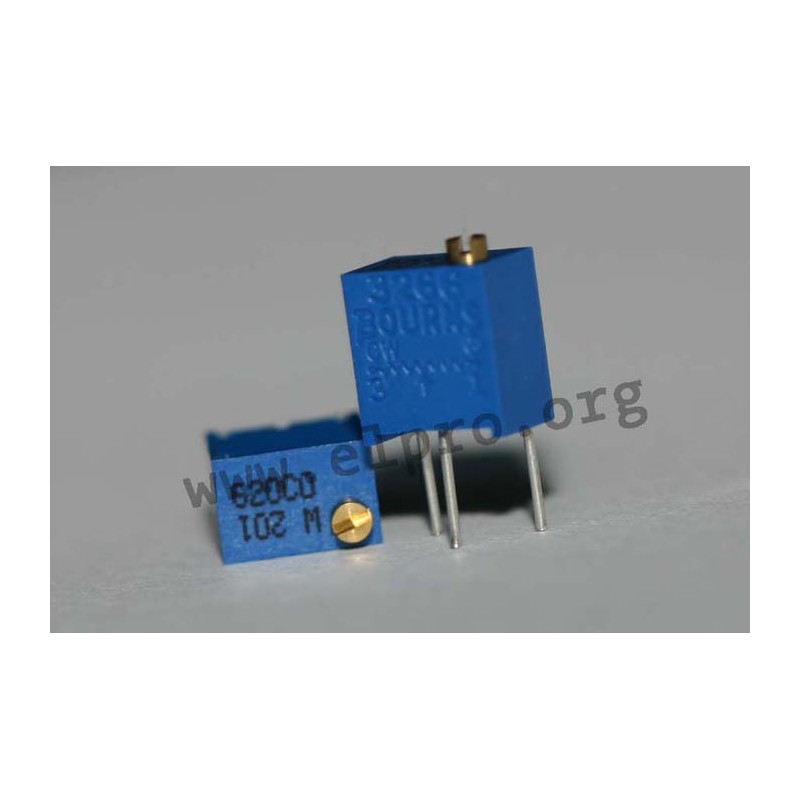

3266 W 1 M

1/4, 0.25 Watt

* vertical
* standard tolerance: ±10%
* resistive element: Cermet
* sealing: IP67
* mechanical travel: 15 ±5
* operating torque, end position: clutch action
* operating torque (max.): 1 Ncm
* weight: 0.5g

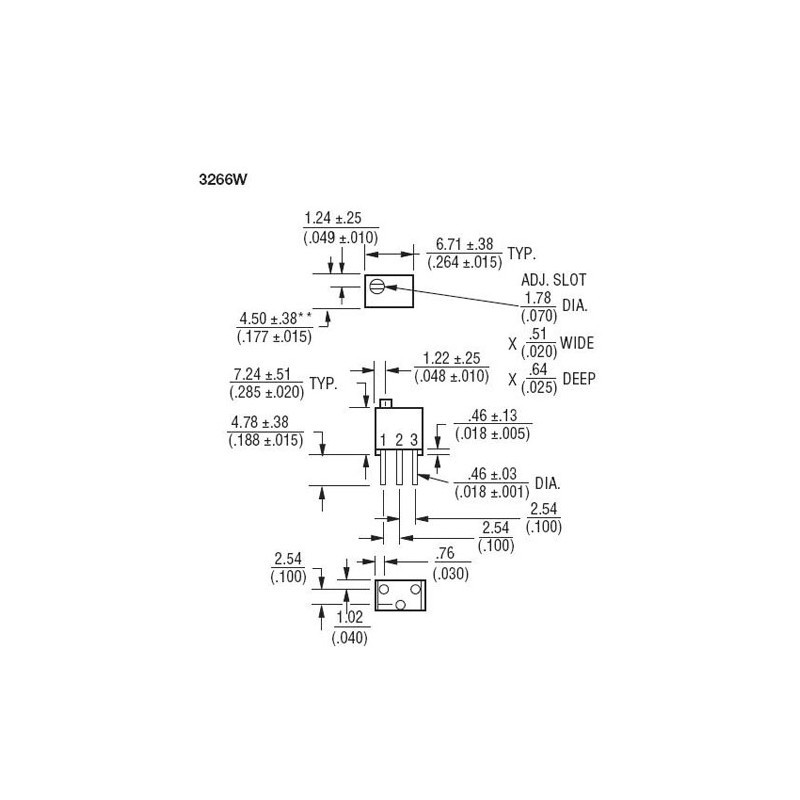

3266 W

3266 W 1 M

6144 3266 W 1 M 3266 W 1 M 1/4, 0.25 Watt. * vertical* standard tolerance: ±10%* resistive element: Cermet* sealing: IP67* mechanical travel: 15 ±5* operating torque, end position: clutch action* operating torque (max.): 1 Ncm* weight: 0.5g

Discontinued items. Only remainder of stock available.

Specifications

Resistance [Ω] 1M
Power, max. [W] 0,25
Data Sheet

Unit price

0,99 €

Stock: 45
