> Passive elements>Potentiometers>Trimmer potentiometers>Vishay multiturn trimmers, 0,5W, T18 series>43 P 10 k

Manufacturers

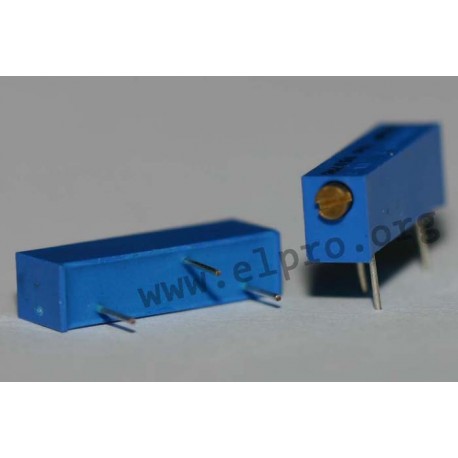

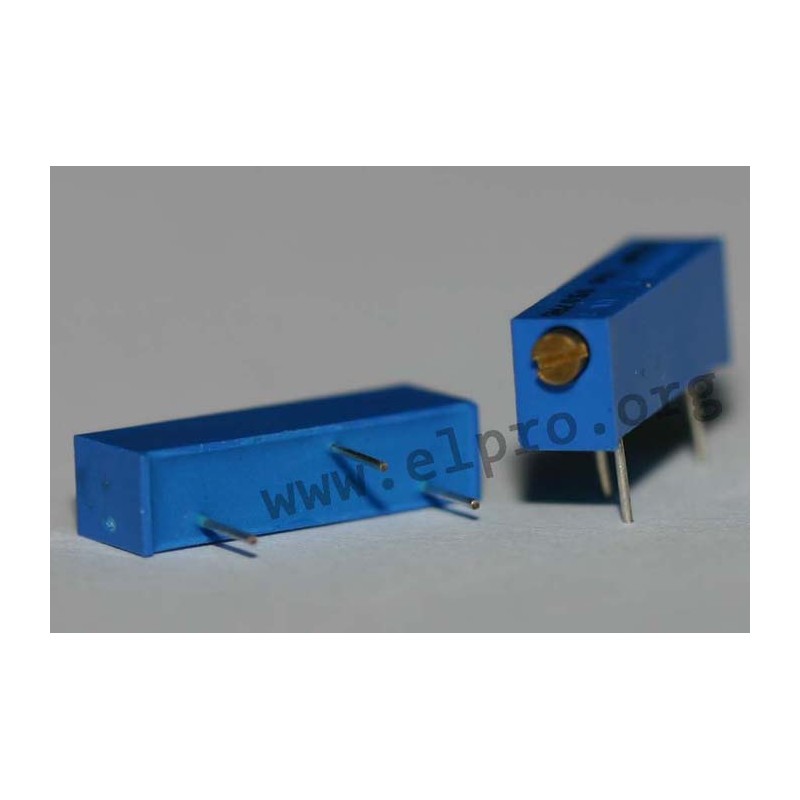

43 P 10 k

0,5 Watt, multiturn trimmers

* resistance tolerance: ±10%
* resistive element: cermet
* temperature range: -55...+125°C
* climatic category: 55/125/56
* sealing: IP67
* mechanical travel: 18 ±5
* end stop torque: clutch action
* operating torque (max.): 3.5Ncm
* weight (max.): 1.2g
43 P 10 k

43 P 10 k

5203 43 P 10 k T18103KT10 T18103KT10 0,5 Watt, multiturn trimmers. * resistance tolerance: ±10%* resistive element: cermet* temperature range: -55...+125°C* climatic category: 55/125/56* sealing: IP67* mechanical travel: 18 ±5* end stop torque: clutch action* operating torque (max.): 3.5Ncm* weight (max.): 1.2g

Specifications

manufacturer
Manufacturer's name T18103KT10
Resistance [Ω] 10k
Power, max. [W] 0,5
Data Sheet

Unit price

1,16 €

Stock: 3217
Next incoming goods:
CW 06/2025
1000 units

Further delivery:
CW 17/2025

Minimum order quantity 1 to 17 units or multiples of 25 plus 0 to 17 .
