> Passive elements>Resistors>Thick-film resistors>Vishay thick-film resistors, TO220, 5%, 2,25/50W, RTO 50 series>RTO 50 F 10 k

Manufacturers

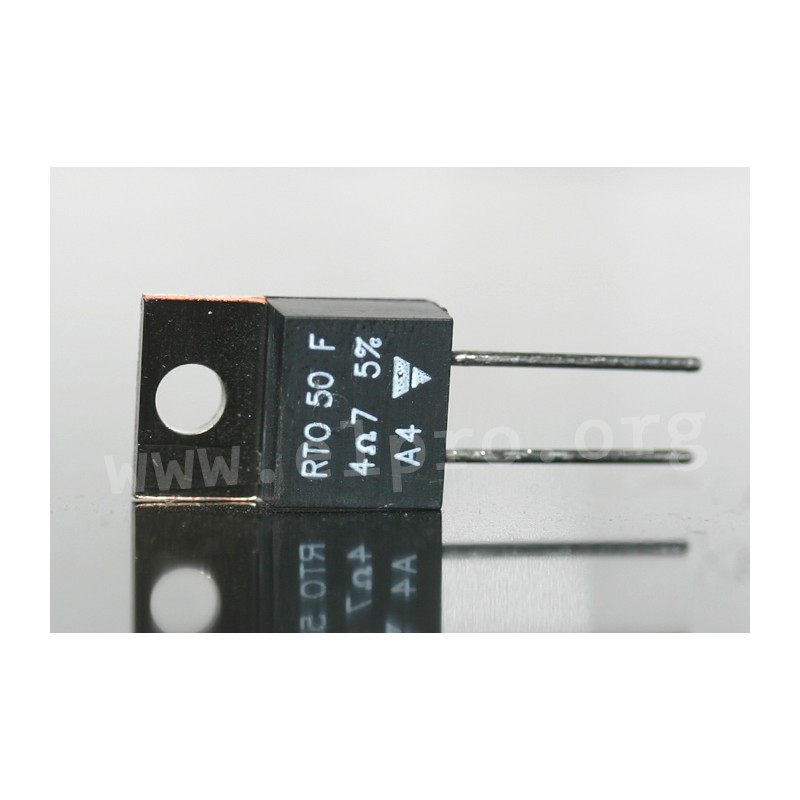

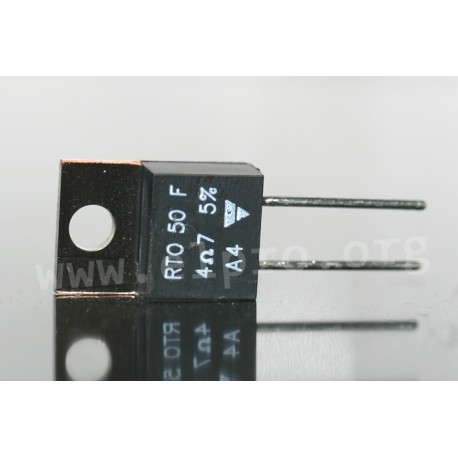

RTO 50 F 10 k

thick-film resistors

• by Vishay
• series RTO50
* low inductance
• compact size
• easy mounting due to TO220-package
• tolerance: ±5%
• power rating with heatsink: 50 Watt
• power rating without heatsink: 2.25W
• operating voltage, max.: 300V
• dielectric strength: 2000Vrms
• operating temperature range: -55 to 155°C
• climatic category: 55/155/156

Vishay series RTO 50 F

RTO 50 F 10 k

4758 RTO 50 F 10 k RTO050F10001JTE1 RTO050F10001JTE1 thick-film resistors. • by Vishay• series RTO50* low inductance• compact size• easy mounting due to TO220-package• tolerance: ±5%• power rating with heatsink: 50 Watt• power rating without heatsink: 2.25W• operating voltage, max.: 300V• dielectric strength: 2000Vrms• operating temperature range: -55 to 155°C• climatic category: 55/155/156

Specifications

manufacturer
Manufacturer's name RTO050F10001JTE1

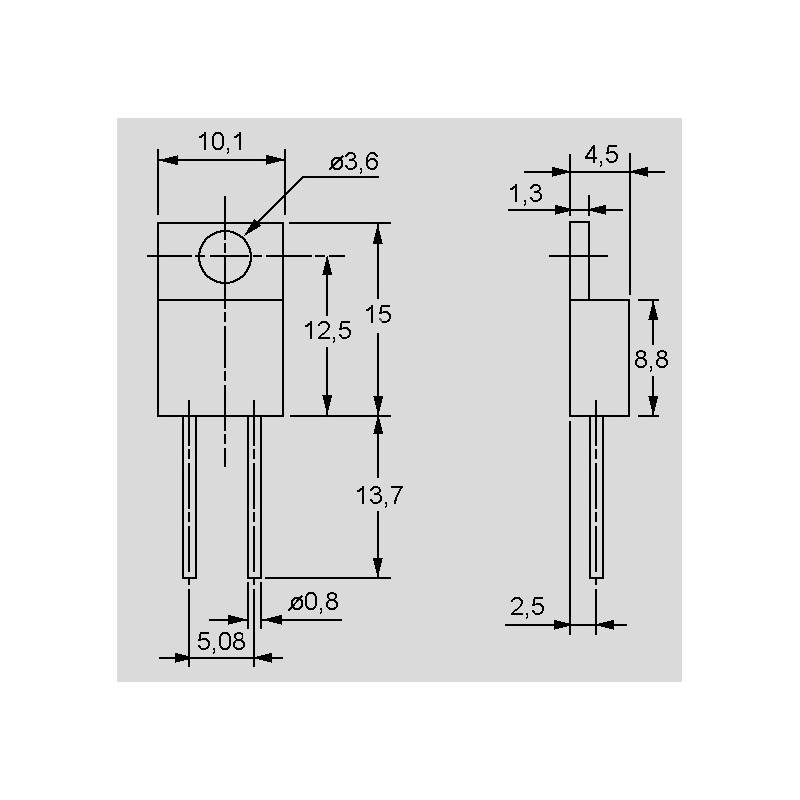

Design TO220
Resistance [Ω] 10
Power [W] 2,25/50
Tolerance [%] 5
Data Sheet

Unit price

5,39 €

Stock: 86
Further delivery:
CW 06/2025

Minimum order quantity 2 units or
multiples of 2.
