> Passive elements>Resistors>Thick-film resistors>Vishay thick-film resistors, TO220, 5%, 2/20W, RTO 20 series>RTO 20 F 330 R

Manufacturers

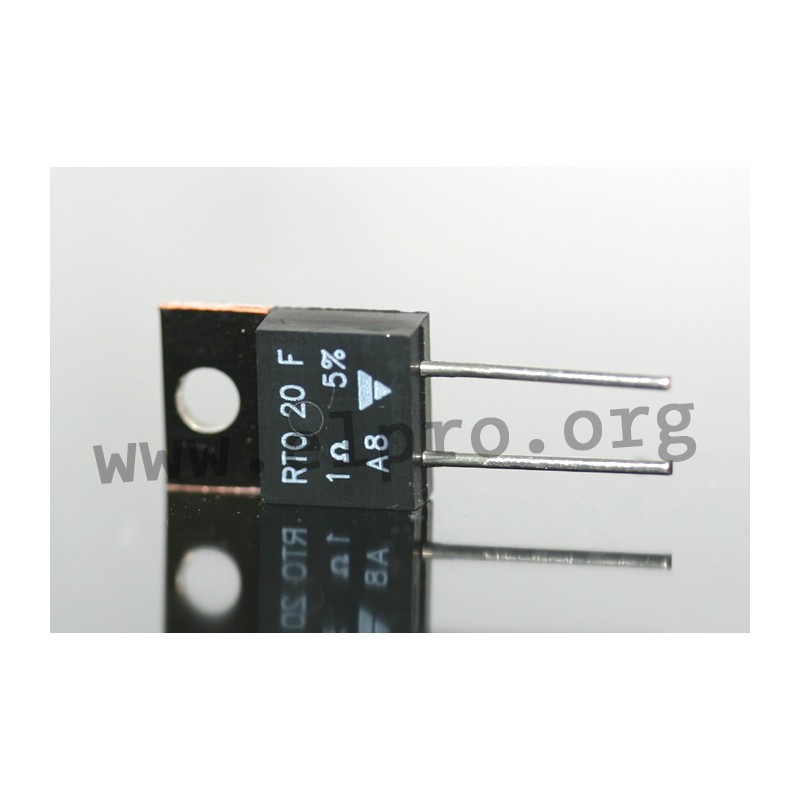

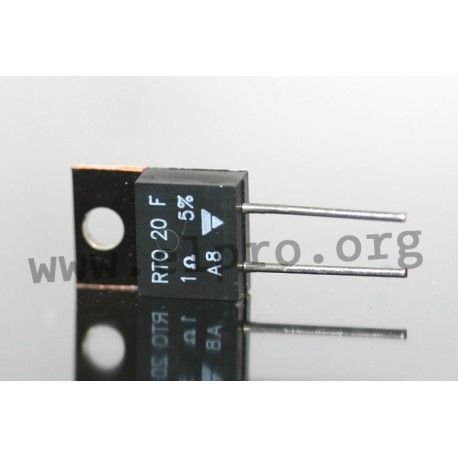

RTO 20 F 330 R

thick-film resistors

• by Vishay
• series RTO20
• low inductance
• compact size
• easy to mount due to TO220-package
• tolerance: 5%
• power rating with heatsink: 20W
• power rating without heatsink: 2W
• max. operating voltage: 250V
• dielectric strength: 2000 Veff
• temperature range: -55 to +155°C
• tolerance: 5%
* climatic category: 55/155/56

Vishay series RTO 20 F

RTO 20 F 330 R

4750 RTO 20 F 330 R RTO020F330R0JTE3 RTO020F330R0JTE3 thick-film resistors. • by Vishay• series RTO20• low inductance• compact size• easy to mount due to TO220-package• tolerance: 5%• power rating with heatsink: 20W• power rating without heatsink: 2W• max. operating voltage: 250V• dielectric strength: 2000 Veff• temperature range: -55 to +155°C• tolerance: 5%* climatic category: 55/155/56

Specifications

manufacturer
Manufacturer's name RTO020F330R0JTE3

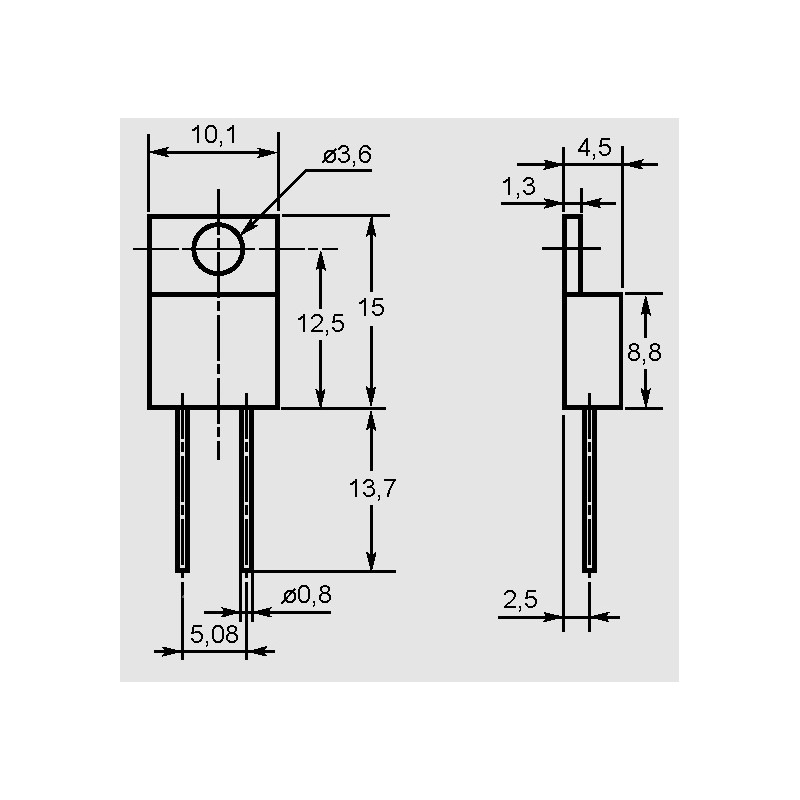

Design TO220
Resistance [Ω] 330
Power [W] 2/20
Tolerance [%] 5
Data Sheet

Unit price

6,19 €

Stock: 43
Further delivery:
CW 13/2025

Minimum order quantity 1 unit or multiples of 2 plus 0 to 1 .
