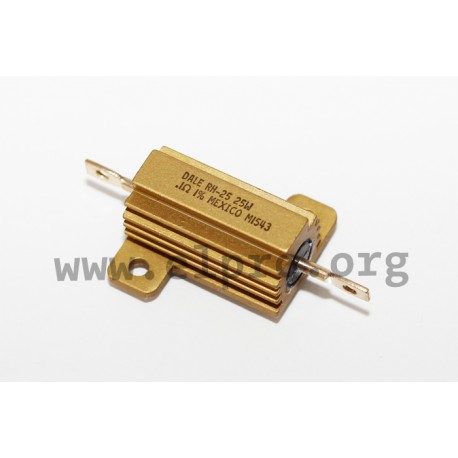

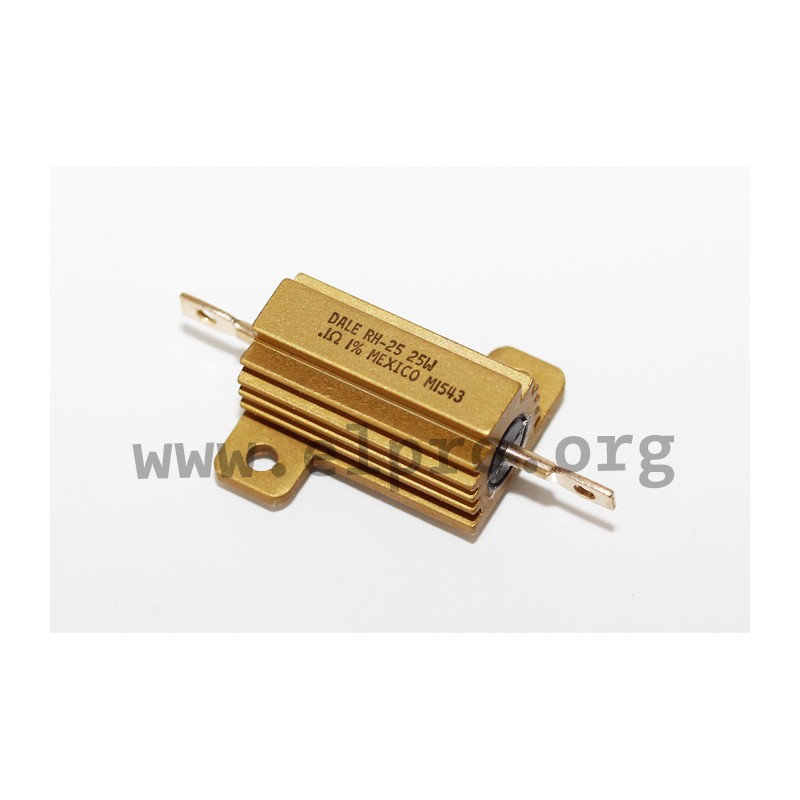

RH-25 0,1 R

wirewound resistors, aluminum housed, RH025 by Vishay

• series: RH025
• bulk
• hermetically sealed design aluminum housed
• heat sink with high thermal conductivity
• mounts on chassis to utilize heat-sink effect
• spot-welded compounds
• meets applicable requirements of MIL-PRF-18546
• resistance tolerance: ±1,0%
• power rating (25°C): 25W
• operating voltage, max.: (PxR)1/2
• insulation resistance: >103MΩ
• insulation voltage: 1000Vrms
• temperature coefficient
0.1R...0.99R: ±100ppm/°C
1R...9.9R: ±50ppm/°C
>9.9R: ±20ppm/°C
• temperature range: -55...+250°C
• terminal strength, min.: 10lb
• derating: linear 25°C to 250°C (0Ω)
• by Vishay

RH-25 0,1 R

RH-25 0,1 R

42435 RH-25 0,1 R RH025R1000FE05 RH025R1000FE05 wirewound resistors, aluminum housed, RH025 by Vishay. • series: RH025• bulk• hermetically sealed design aluminum housed• heat sink with high thermal conductivity• mounts on chassis to utilize heat-sink effect• spot-welded compounds• meets applicable requirements of MIL-PRF-18546• resistance tolerance: ±1,0%• power rating (25°C): 25W• operating voltage, max.: (PxR)1/2• insulation resistance: >103MΩ• insulation voltage: 1000Vrms• temperature coefficient0.1R...0.99R: ±100ppm/°C1R...9.9R: ±50ppm/°C>9.9R: ±20ppm/°C• temperature range: -55...+250°C• terminal strength, min.: 10lb• derating: linear 25°C to 250°C (0Ω)• by Vishay

Specifications

manufacturer
Manufacturer's name RH025R1000FE05
Resistance [Ω] 0,1
Power [W] 25
Tolerance [%] 1
Data Sheet

Unit price

6,59 €

Stock: 55
Next incoming goods:
CW 49/2024
100 units

Further delivery:
CW 04/2025

Minimum order quantity 5 units or
multiples of 5.
