> Passive elements>Resistors>Wire resistors>Vishay wire resistors, aluminium housing, 1%, 5W, RH005 series>RH-5 10 k

Manufacturers

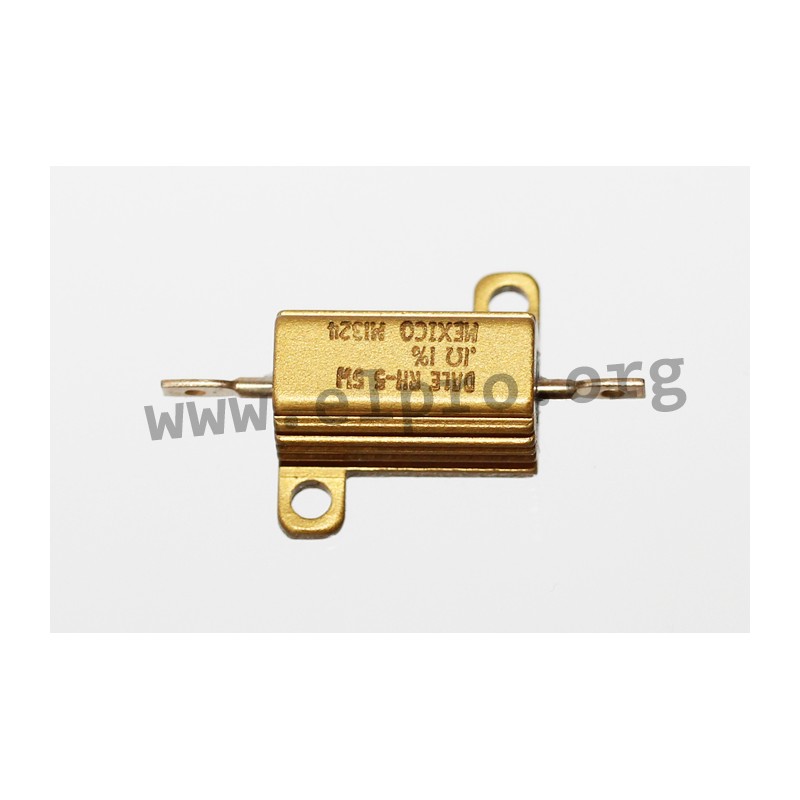

RH-5 10 k

wirewound resistors, aluminum housed, RH005 by Vishay

• series: RH005
• bulk
• hermetically sealed design aluminum housed
• heat sink with high thermal conductivity
• mounts on chassis to utilize heat-sink effect
• spot-welded compounds
• meets applicable requirements of MIL-PRF-18546
• resistance tolerance: ±1,0%
• power rating (25°C): 5W
• operating voltage, max.: (PxR)1/2
• insulation resistance: >103MΩ
• insulation voltage: 1000Vrms
• temperature coefficient
0.1R...0.99R: ±100ppm/°C
1R...9.9R: ±50ppm/°C
>9.9R: ±20ppm/°C
• temperature range: -55...+250°C
• terminal strength, min.: 5lb
• derating: linear 25°C to 250°C (0Ω)
• by Vishay

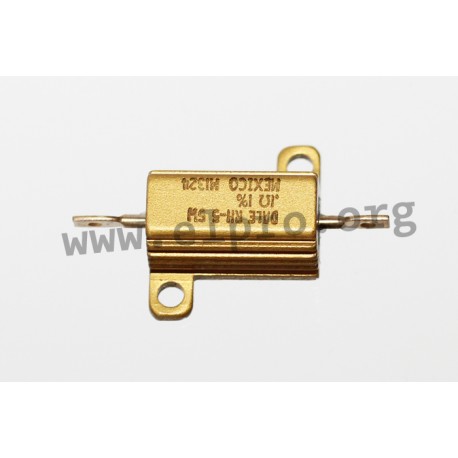

series RH-5 by Vishay

RH-5 10 k

42421 RH-5 10 k RH00510K00FE05 RH00510K00FE05 wirewound resistors, aluminum housed, RH005 by Vishay. • series: RH005• bulk• hermetically sealed design aluminum housed• heat sink with high thermal conductivity• mounts on chassis to utilize heat-sink effect• spot-welded compounds• meets applicable requirements of MIL-PRF-18546• resistance tolerance: ±1,0%• power rating (25°C): 5W• operating voltage, max.: (PxR)1/2• insulation resistance: >103MΩ• insulation voltage: 1000Vrms• temperature coefficient0.1R...0.99R: ±100ppm/°C1R...9.9R: ±50ppm/°C>9.9R: ±20ppm/°C• temperature range: -55...+250°C• terminal strength, min.: 5lb• derating: linear 25°C to 250°C (0Ω)• by Vishay

Specifications

manufacturer
Manufacturer's name RH00510K00FE05
Resistance [Ω] 10k
Power [W] 5
Tolerance [%] 1
Data Sheet

Unit price

2,79 €

Stock: 75
Further delivery:
CW 07/2025

Minimum order quantity 5 units or
multiples of 5.
