RCH 50 2,2 k

thick-film resistors

• by Vishay
• series RCH50
* style: bulk
• compact size
• easy mounting
* high insulation 106MΩ
• tolerance: ±5%
• power rating with heatsink: 50W
• power rating without heatsink: 5.5W
• operating voltage, max.: 1285V
• dielectric strength: 3500Vrms
• operating temperature range: -55 to 125°C
• climatic category: 55/125/56

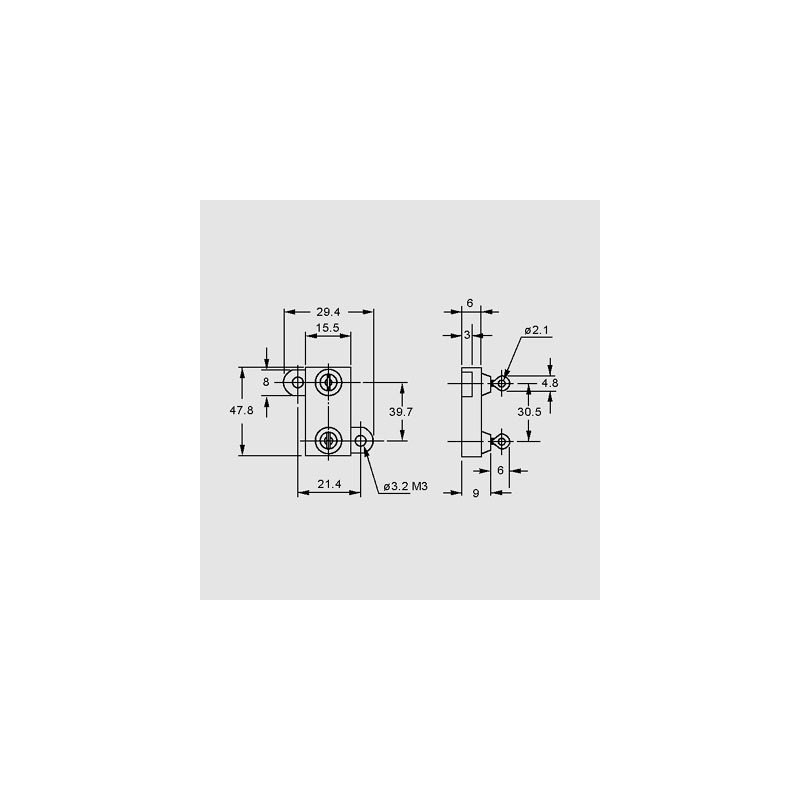

dimensions

RCH 50 2,2 k

4734 RCH 50 2,2 k RCH50S22000JS06 RCH50S22000JS06 thick-film resistors. • by Vishay• series RCH50* style: bulk• compact size• easy mounting* high insulation 106MΩ• tolerance: ±5%• power rating with heatsink: 50W• power rating without heatsink: 5.5W• operating voltage, max.: 1285V• dielectric strength: 3500Vrms• operating temperature range: -55 to 125°C• climatic category: 55/125/56

Specifications

manufacturer
Manufacturer's name RCH50S22000JS06
Resistance [Ω] 2,2k
Power [W] 5,5/50
Tolerance [%] 5
Data Sheet

Unit price

8,69 €

Stock: 7
Further delivery:
CW 07/2025
