P 40 10 R

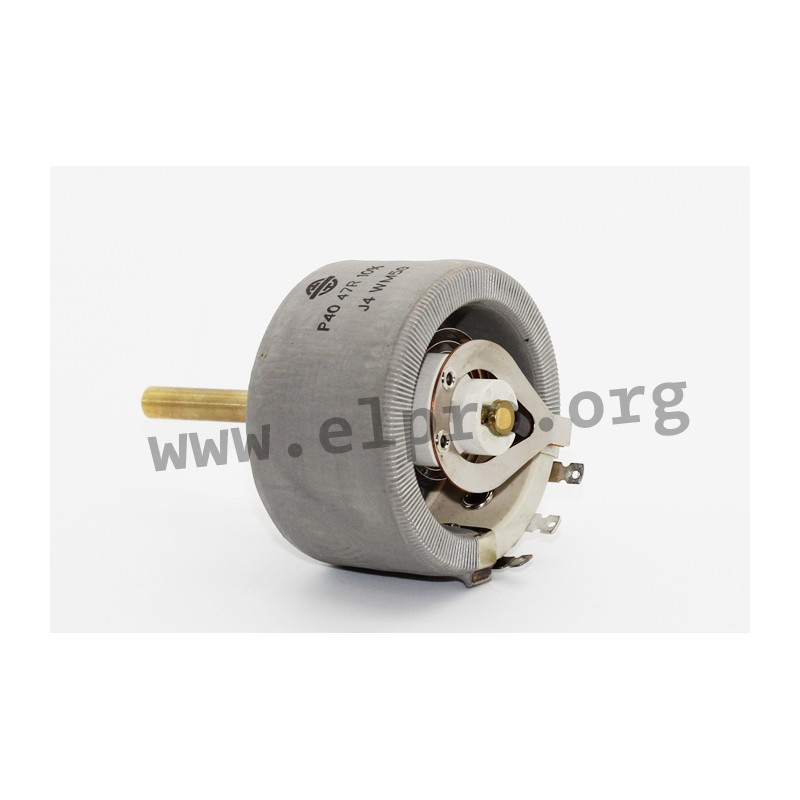

Heavy duty wirewound potentiometers series P40

These wirewound potentiometers are characterized by a high power rating. They are overdrawn with cement coating. Furthermore, they possess a precious metal rivet wipper and are marked by tinned solder tag terminals. We are offering the following types by Vishay: P 40 10 R, P 40 22 R, P 40 47 R, P 40 100 R, P 40 220 R, P 40 470 R, P 40 1 k, P 40 2,2 k and P 40 4,7 k.
• rated dissipation (40°C): 50W
• insulation voltage: 2500V / 50Hz
• angle
start to stop: 290°
over winding: 276°
• max. torque: 4Ncm
• max. torque at stop, ca.: 100Ncm
• torque for mounting:: 200Ncm
• weight: 170g

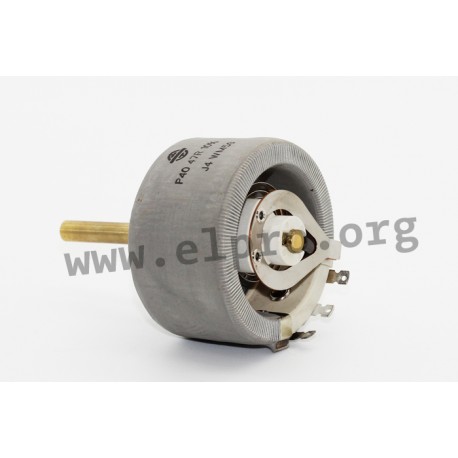

P40 50 10R 10% AGX, 6mm, wirewound potentiometers, 50 W, series P 40 by Vishay

P 40 10 R

109729 P 40 10 R P40 50 10R 10% AGX P40 50 10R 10% AGX Heavy duty wirewound potentiometers series P40. These wirewound potentiometers are characterized by a high power rating. They are overdrawn with cement coating. Furthermore, they possess a precious metal rivet wipper and are marked by tinned solder tag terminals. We are offering the following types by Vishay: P 40 10 R, P 40 22 R, P 40 47 R, P 40 100 R, P 40 220 R, P 40 470 R, P 40 1 k, P 40 2,2 k and P 40 4,7 k.• rated dissipation (40°C): 50W• insulation voltage: 2500V / 50Hz• anglestart to stop: 290°over winding: 276°• max. torque: 4Ncm• max. torque at stop, ca.: 100Ncm• torque for mounting:: 200Ncm• weight: 170g

Specifications

manufacturer
Manufacturer's name P40 50 10R 10% AGX
Data Sheet

Unit price

317,99 €

Stock: 0
Further delivery:
CW 13/2025
