P 20 100 R

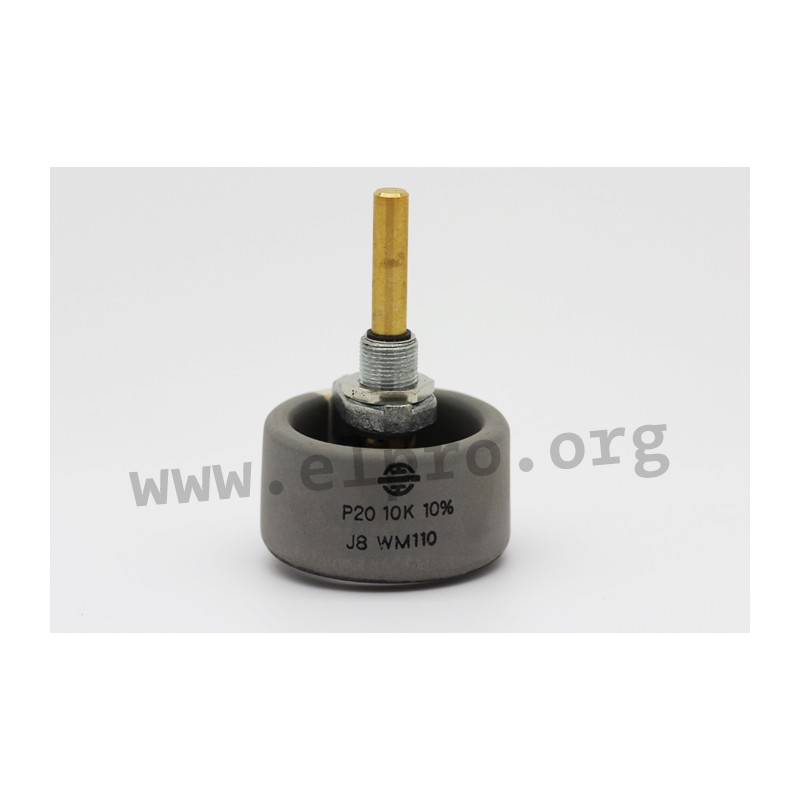

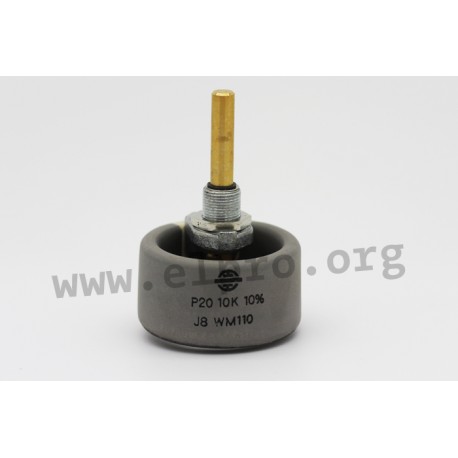

Heavy duty wirewound potentiometers series P20 by Vishay

The potentiometers are marked by a high power rating and cement coating. Furthermore, they possess precious metal rivet wipper and tinned solder tag terminals. We are offering the following types by Vishay: P 20 10 R, P 20 22 R, P 20 47 R, P 20 100 R, P 20 220 R, P 20 470 R, P 20 1 k, P 20 2,2 k, P 20 4,7k and P 20 10 k.

• rated dissipation (40°C): 30W
• insulation voltage: 2500V / 50Hz
• angle
start to stop: 290°
over winding: 276°
• max. torque: 4Ncm
• max. torque at stop, ca.: 100Ncm
• torque for mounting:: 200Ncm
• weight: 70g

P 20

P 20 100 R

109723 P 20 100 R P20 50 100R 10% AEY P20 50 100R 10% AEY Heavy duty wirewound potentiometers series P20 by Vishay. The potentiometers are marked by a high power rating and cement coating. Furthermore, they possess precious metal rivet wipper and tinned solder tag terminals. We are offering the following types by Vishay: P 20 10 R, P 20 22 R, P 20 47 R, P 20 100 R, P 20 220 R, P 20 470 R, P 20 1 k, P 20 2,2 k, P 20 4,7k and P 20 10 k. • rated dissipation (40°C): 30W• insulation voltage: 2500V / 50Hz• anglestart to stop: 290°over winding: 276°• max. torque: 4Ncm• max. torque at stop, ca.: 100Ncm• torque for mounting:: 200Ncm• weight: 70g

Specifications

manufacturer
Manufacturer's name P20 50 100R 10% AEY
Data Sheet

Unit price

216,09 €

Stock: 0
Further delivery:
CW 10/2025

Minimum order quantity 5 units or
multiples of 5.
