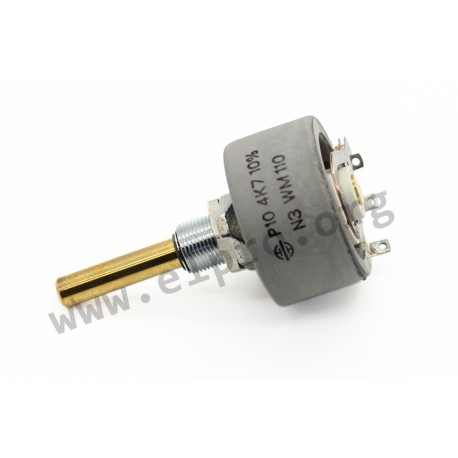

P 10 470 R

Heavy duty wirewound potentiometers by Vishay

These duty wirewound potentiometers have a high power rating and are characterized by a cement coating. They possess a precious metal rivet wipper and tinned solder tag terminals. We are offering the following types by Vishay: P 10 100 R, P 10 22 R, P 10 47 R, P 10 100 R, P 10 220 R, P 10 470 R, P 10 1 k, P 10 2,2 k and P 10 4, 7k.

• rated dissipation (40°C): 16W
• insulation voltage: 2500V / 50Hz
• angle
start to stop: 270°
over winding: 252°
• max. torque: 4Ncm
• max. torque at stop, ca.: 100Ncm
• torque for mounting:: 200Ncm
• weight: 50g

P10 50 470R 10% BXB, Vishay wirewound rotary potentiometers, 6mm, 16W, P 10 series

P 10 470 R

109715 P 10 470 R P10 50 470R 10% BXB P10 50 470R 10% BXB Heavy duty wirewound potentiometers by Vishay. These duty wirewound potentiometers have a high power rating and are characterized by a cement coating. They possess a precious metal rivet wipper and tinned solder tag terminals. We are offering the following types by Vishay: P 10 100 R, P 10 22 R, P 10 47 R, P 10 100 R, P 10 220 R, P 10 470 R, P 10 1 k, P 10 2,2 k and P 10 4, 7k. • rated dissipation (40°C): 16W• insulation voltage: 2500V / 50Hz• anglestart to stop: 270°over winding: 252°• max. torque: 4Ncm• max. torque at stop, ca.: 100Ncm• torque for mounting:: 200Ncm• weight: 50g

Specifications

manufacturer
Manufacturer's name P10 50 470R 10% BXB
Data Sheet

Unit price

216,09 €

Stock: 4
Further delivery:
CW 06/2025
