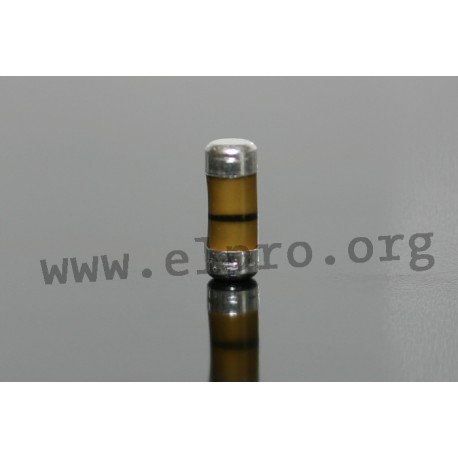

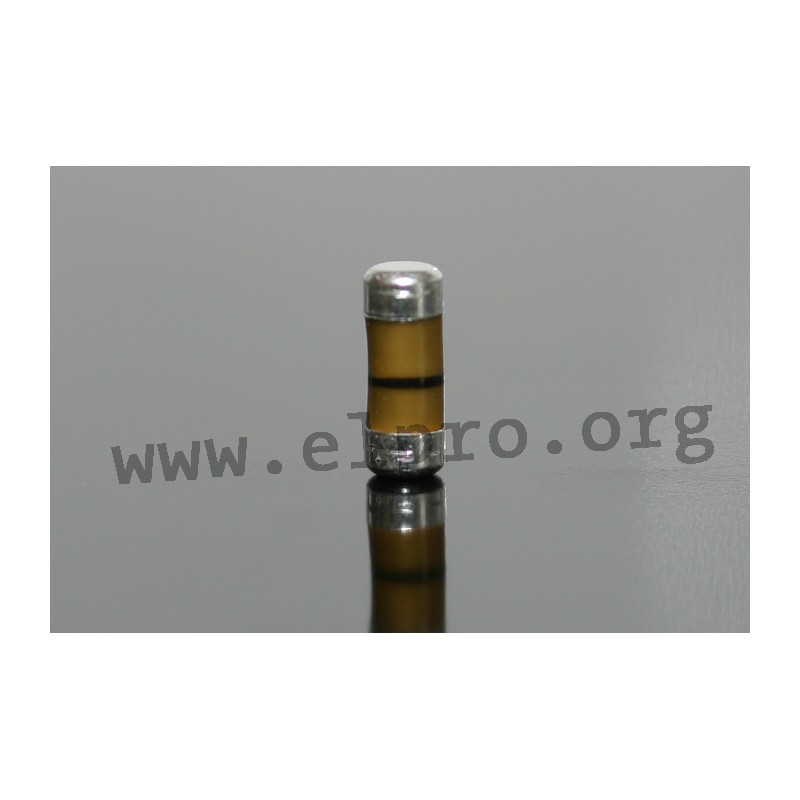

Melf 0207 1% 18 R

SMD resistors

• housing: melf, 0207
• style: taped
• power: 0.4 Watt
• tolerance: ±1%
• by Vishay
• series MMB0204
• thin film technology resistors
• low TC and high tolerances
• excellent stability in different environmental conditions
* pure tin termination on nickel barrier layer
• operating voltage, max.: 300V or (PxR)1/2
• temperature coefficient: 50ppm/K
• temperature range: -55 to +125°C
• climatic category: 55/125/56

Melf 0207 0 R

Melf 0207 1% 18 R

30996 Melf 0207 1% 18 R MMB02070C1809FB200 MMB02070C1809FB200 SMD resistors. • housing: melf, 0207• style: taped• power: 0.4 Watt• tolerance: ±1%• by Vishay• series MMB0204• thin film technology resistors• low TC and high tolerances• excellent stability in different environmental conditions* pure tin termination on nickel barrier layer• operating voltage, max.: 300V or (PxR)1/2• temperature coefficient: 50ppm/K• temperature range: -55 to +125°C• climatic category: 55/125/56

Specifications

manufacturer
Manufacturer's name MMB02070C1809FB200
Design Melf
Resistance [Ω] 18
Power [W] 0,4
Tolerance [%] 1
Data Sheet

Unit price

0,056 €

Stock: 2200
Further delivery:
CW 08/2025

Minimum order quantity 100 units or
multiples of 100.
