MMA02040C1102FB300 11k

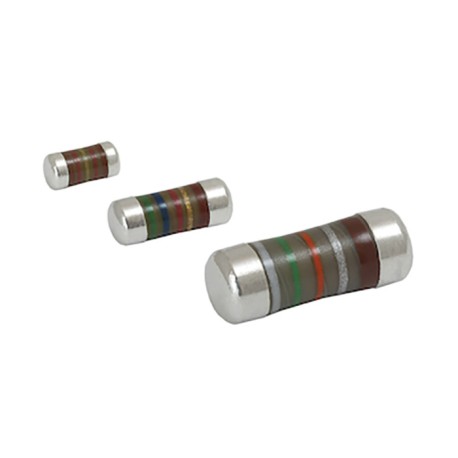

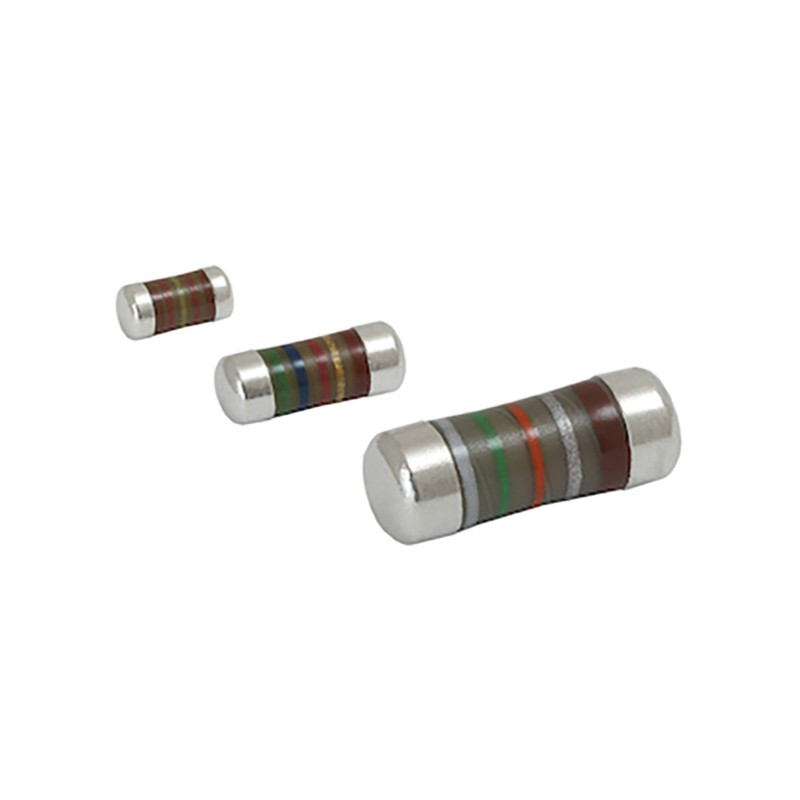

Vishay MELF metal film resistors series MMA

These MELF metal film resistors in a 0204 housing are equipped with a standard current of 0,25W and a tolerance of ±1%. They have a stable ressistor film made of quality ceramic and contact terminals that are nickel tinned. These resistors have a good ressistance of environmental factors, as well as they have a low temperature coefficient (TC). We offer various types of this Vishay series.

  • current: 0,25
  • tolerance: ±1%
  • housing: 0204
  • style: taped
  • operating voltage, max.: 200V AC/DC
  • temperature coefficient (TC): 50ppm/K
  • climate category: 55/125/56
  • failure rate, max.: 0,05 x 10^-9/h
  • derating: linear from 70 to 125°C (0W)
  • operating temperature: -55 to +125°C
MMA02040C1102FB300, Vishay MELF metal film resistors, 0,25W, 0204 housing, MMA series

MMA02040C1102FB300 11k

247337 MMA02040C1102FB300 11k MMA02040C1102FB300 MMA02040C1102FB300 Vishay MELF metal film resistors series MMA. These MELF metal film resistors in a 0204 housing are equipped with a standard current of 0,25W and a tolerance of ±1%. They have a stable ressistor film made of quality ceramic and contact terminals that are nickel tinned. These resistors have a good ressistance of environmental factors, as well as they have a low temperature coefficient (TC). We offer various types of this Vishay series.  current: 0,25 tolerance: ±1% housing: 0204 style: taped operating voltage, max.: 200V AC/DC temperature coefficient (TC): 50ppm/K climate category: 55/125/56 failure rate, max.: 0,05 x 10^-9/h derating: linear from 70 to 125°C (0W) operating temperature: -55 to +125°C

Specifications

manufacturer
Manufacturer's name MMA02040C1102FB300
Data Sheet

Unit price

0,0181 €

Stock: 3000
Further delivery:
CW 08/2025

Minimum order quantity 100 units or
multiples of 100.
