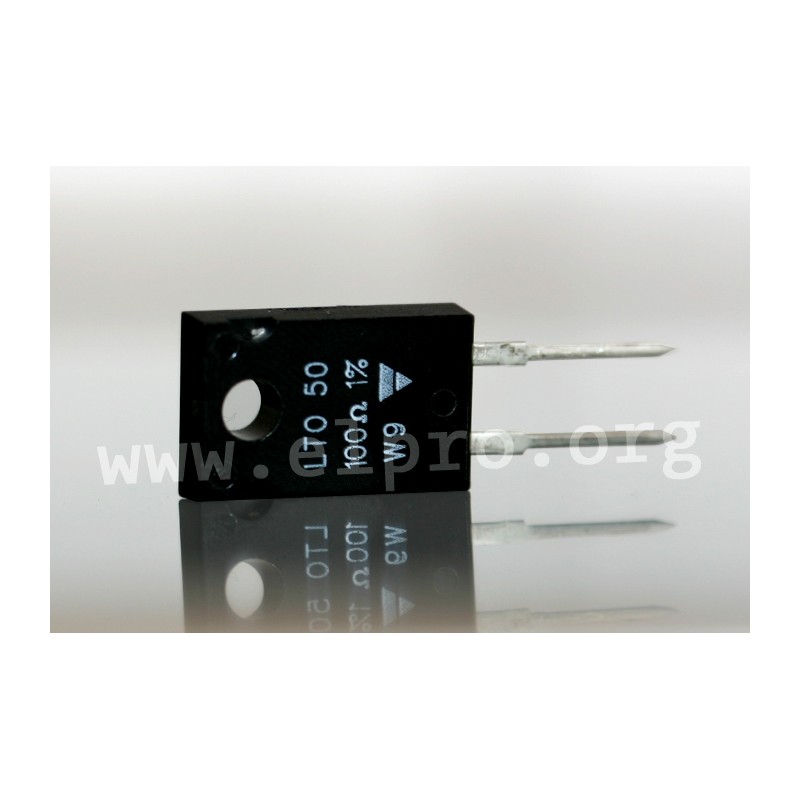

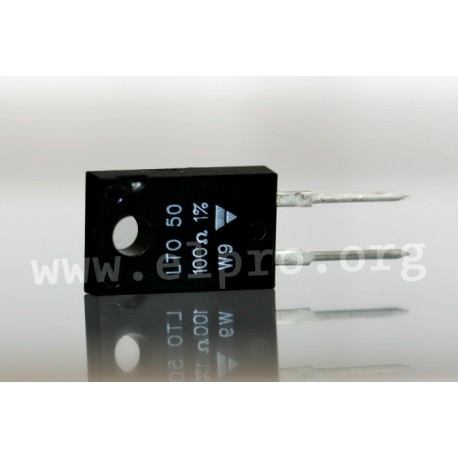

LTO 50 F 100 R

thick-film resistors

• by Vishay
• series LTO50
* low inductance
• compact size
• easy mounting due to TO220-package
* direct ceramic mounting design (no metal tab)
• tolerance: ±1%
• power rating with heatsink: 50W
• power rating without heatsink: 2.5W
• operating voltage, max.: 250V
• dielectric strength: 1500Vrms
• operating temperature range: -55 to 155°C
• climatic category: 55/155/56

Vishay series LTO 50 F

LTO 50 F 100 R

4712 LTO 50 F 100 R LTO050F100R0FTE3 LTO050F100R0FTE3 thick-film resistors. • by Vishay• series LTO50* low inductance• compact size• easy mounting due to TO220-package* direct ceramic mounting design (no metal tab)• tolerance: ±1%• power rating with heatsink: 50W• power rating without heatsink: 2.5W• operating voltage, max.: 250V• dielectric strength: 1500Vrms• operating temperature range: -55 to 155°C• climatic category: 55/155/56

Specifications

manufacturer
Manufacturer's name LTO050F100R0FTE3

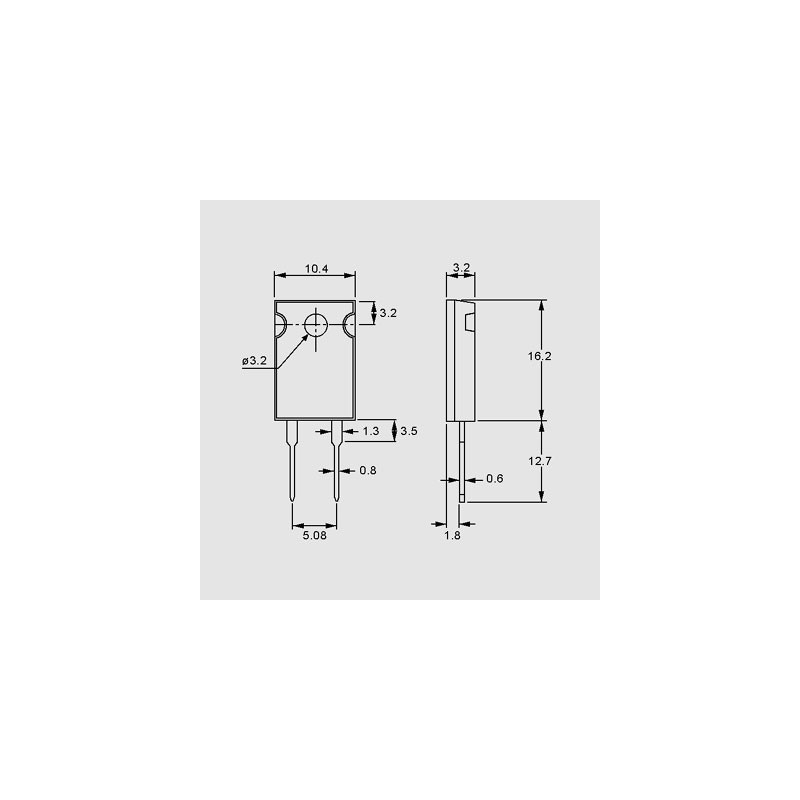

Design TO220
Resistance [Ω] 100
Power [W] 2,5/50
Tolerance [%] 1
Data Sheet

Unit price

5,89 €

Stock: 38
Further delivery:
CW 11/2025

Minimum order quantity 2 units or
multiples of 2.
