> Passive elements>Resistors>Thick-film resistors>Vishay thick-film resistors, TO220, 1%, 2,25/30W, LTO 30 series>LTO 30 F 2,2 R

Manufacturers

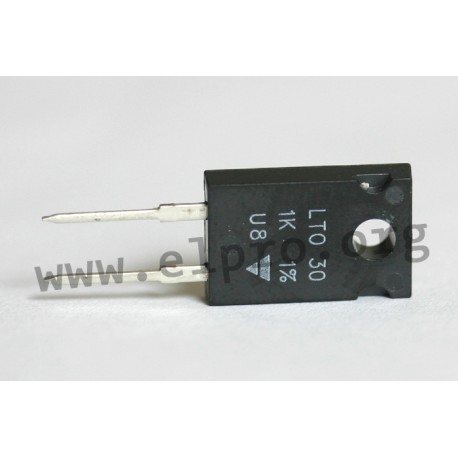

LTO 30 F 2,2 R

thick-film resistors

• by Vishay
• series LTO30
* low inductance
• compact size

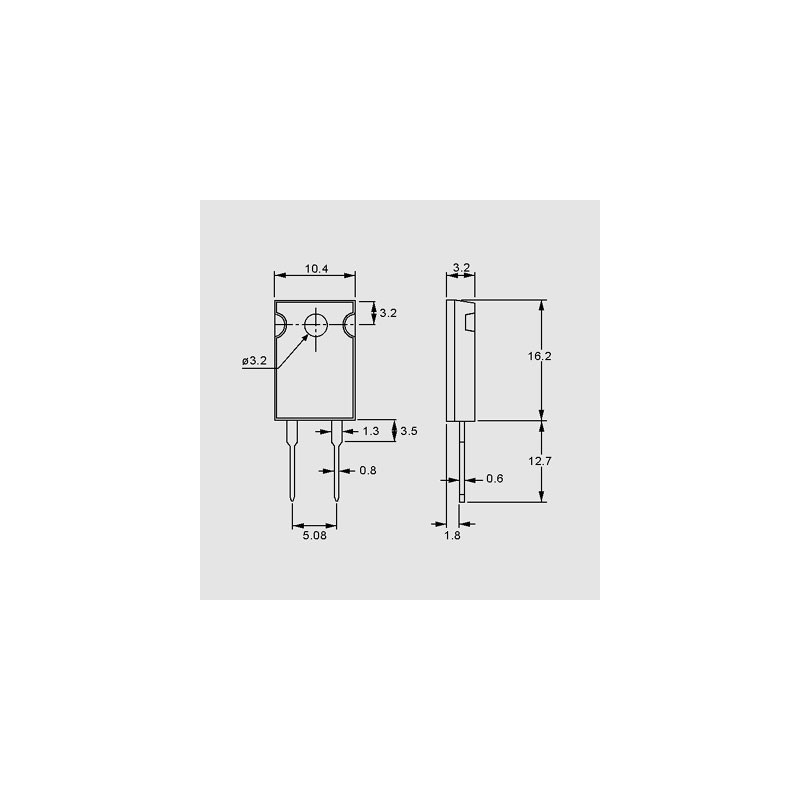

• easy mounting due to TO220-package
* direct ceramic mounting design (no metal tab)
• tolerance: ±1%
• power rating with heatsink: 30 Watt
• power rating without heatsink: 2.25W
• operating voltage, max.: 250V
• dielectric strength: 1500Vrms
• operating temperature range: -55 to 155°C
• climatic category: 55/155/56

LTO 30 F 1 k

LTO 30 F 2,2 R

4704 LTO 30 F 2,2 R LTO030F2R200FTE3 LTO030F2R200FTE3 thick-film resistors. • by Vishay• series LTO30* low inductance• compact size• easy mounting due to TO220-package* direct ceramic mounting design (no metal tab)• tolerance: ±1%• power rating with heatsink: 30 Watt• power rating without heatsink: 2.25W• operating voltage, max.: 250V• dielectric strength: 1500Vrms• operating temperature range: -55 to 155°C• climatic category: 55/155/56

Specifications

manufacturer
Manufacturer's name LTO030F2R200FTE3
Design TO220
Resistance [Ω] 2,2
Power [W] 2,25/30
Tolerance [%] 1
Data Sheet

Unit price

4,69 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 50 units or
multiples of 50.
