0613 5% 4,7 k

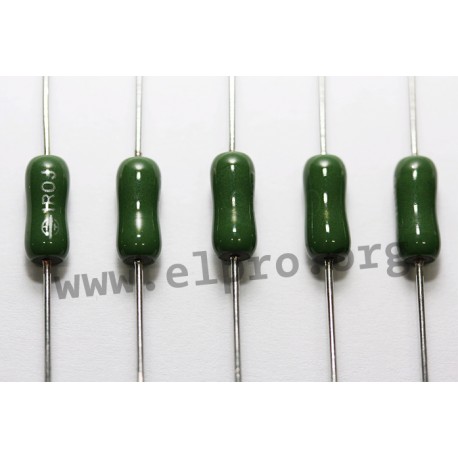

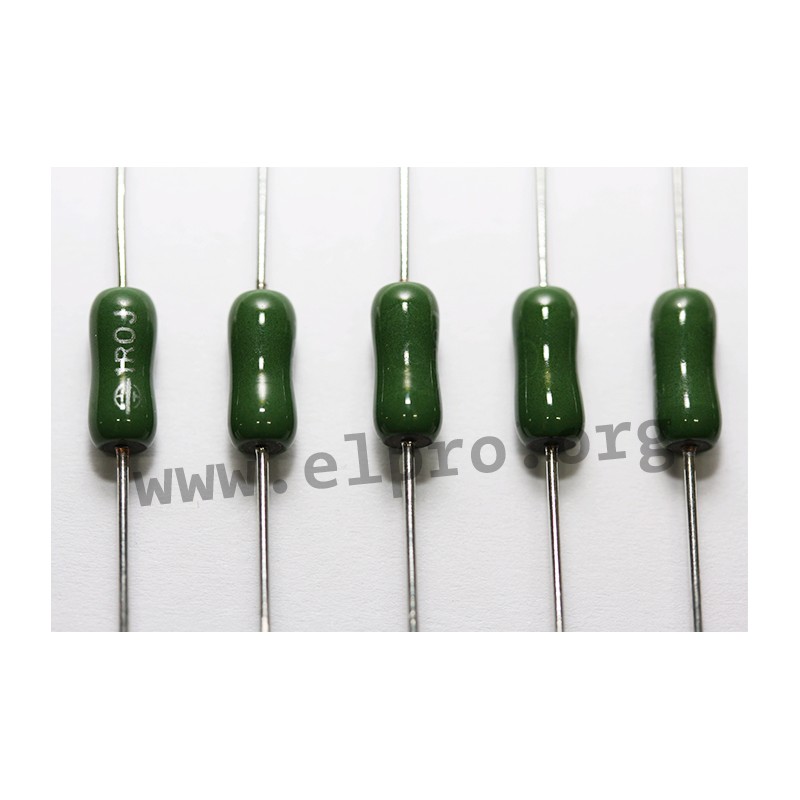

wirewound resistors G202 by Vishay

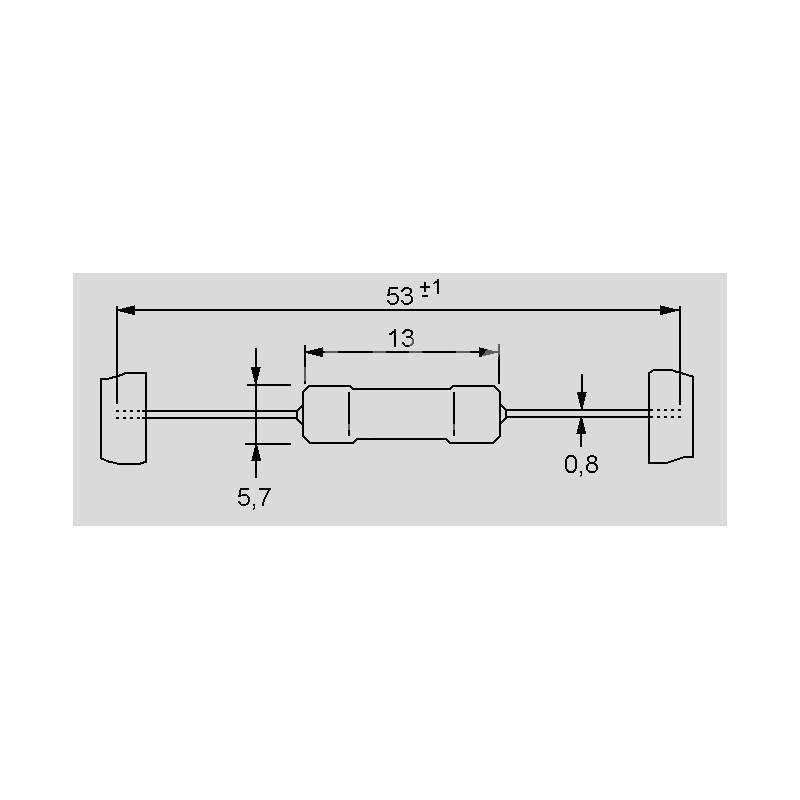

* housing: 0613
* taped
* series: G202
* all welded construction
* ceramic core
* resistance tolerance: ±5%
* power rating (40°C): 4W
* working voltage, max.: 200Vrms
* temperature coefficient: 100...180x10-6/K
* by Vishay
series G202 by Vishay

0613 5% 4,7 k

42386 0613 5% 4,7 k G22041434701J4C000 G22041434701J4C000 wirewound resistors G202 by Vishay. * housing: 0613* taped* series: G202* all welded construction* ceramic core* resistance tolerance: ±5%* power rating (40°C): 4W* working voltage, max.: 200Vrms* temperature coefficient: 100...180x10-6/K* by Vishay

Specifications

manufacturer
Manufacturer's name G22041434701J4C000
Design 0613
Resistance [Ω] 4,7k
Power [W] 4
Tolerance [%] 5
Data Sheet

Unit price

1,13 €

Stock: 277
Further delivery:
CW 13/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
