> Passive elements>Resistors>Wire resistors>Vishay wire resistors, 0613 housing, 5%, 4W, Draloric, G200 series>0613 5% 1 k

Manufacturers

0613 5% 1 k

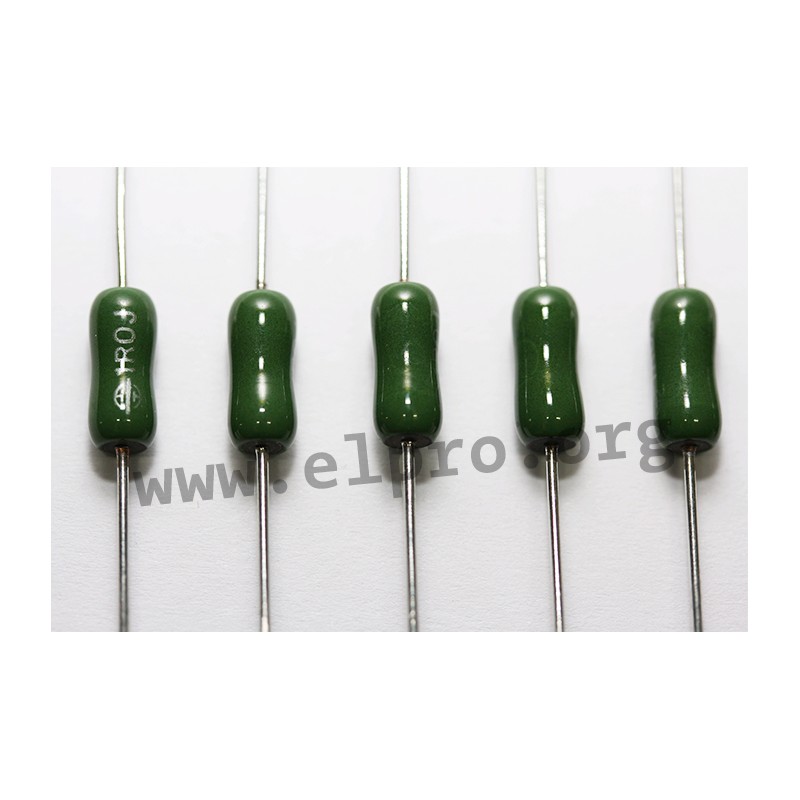

wirewound resistors G202 by Vishay

* housing: 0613
* taped
* series: G202
* all welded construction
* ceramic core
* resistance tolerance: ±5%
* power rating (40°C): 4W
* working voltage, max.: 200Vrms
* temperature coefficient: 100...180x10-6/K
* by Vishay

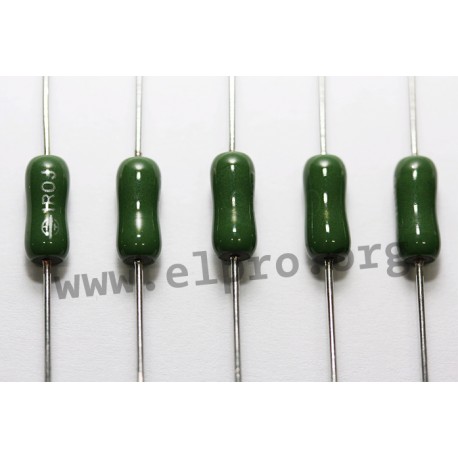

series G202 by Vishay

0613 5% 1 k

42382 0613 5% 1 k G22041431001J4C000 G22041431001J4C000 wirewound resistors G202 by Vishay. * housing: 0613* taped* series: G202* all welded construction* ceramic core* resistance tolerance: ±5%* power rating (40°C): 4W* working voltage, max.: 200Vrms* temperature coefficient: 100...180x10-6/K* by Vishay

Specifications

manufacturer
Manufacturer's name G22041431001J4C000
Design 0613
Resistance [Ω] 1k
Power [W] 4
Tolerance [%] 5
Data Sheet

Unit price

0,414 €

Stock: 195
Next incoming goods:
CW 49/2024
1000 units

Further delivery:
CW 09/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
