0613 5% 33 R

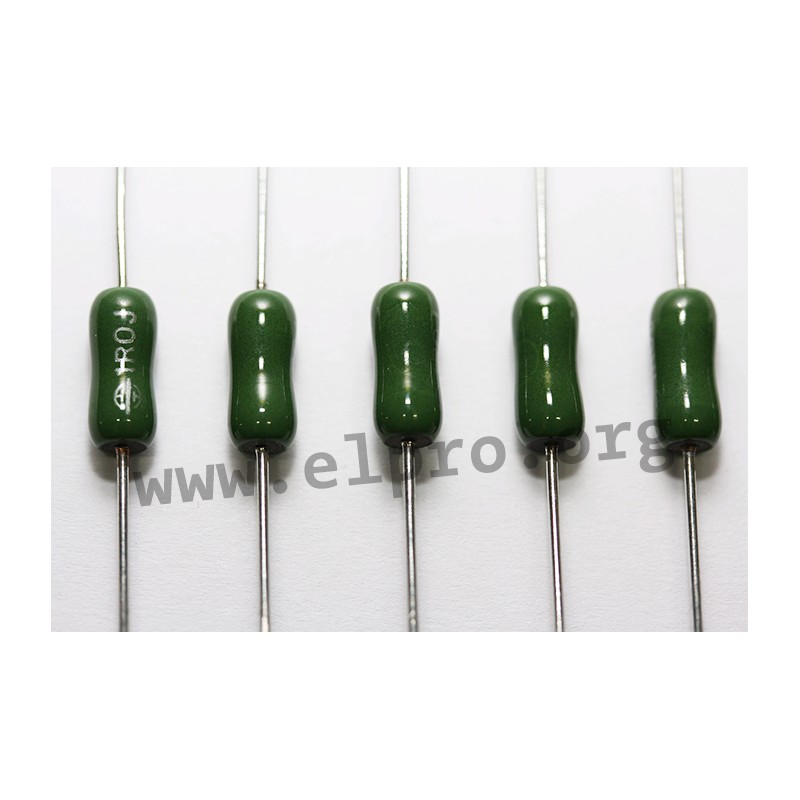

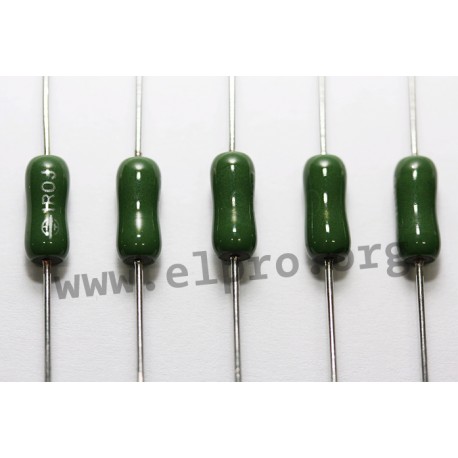

wirewound resistors G202 by Vishay

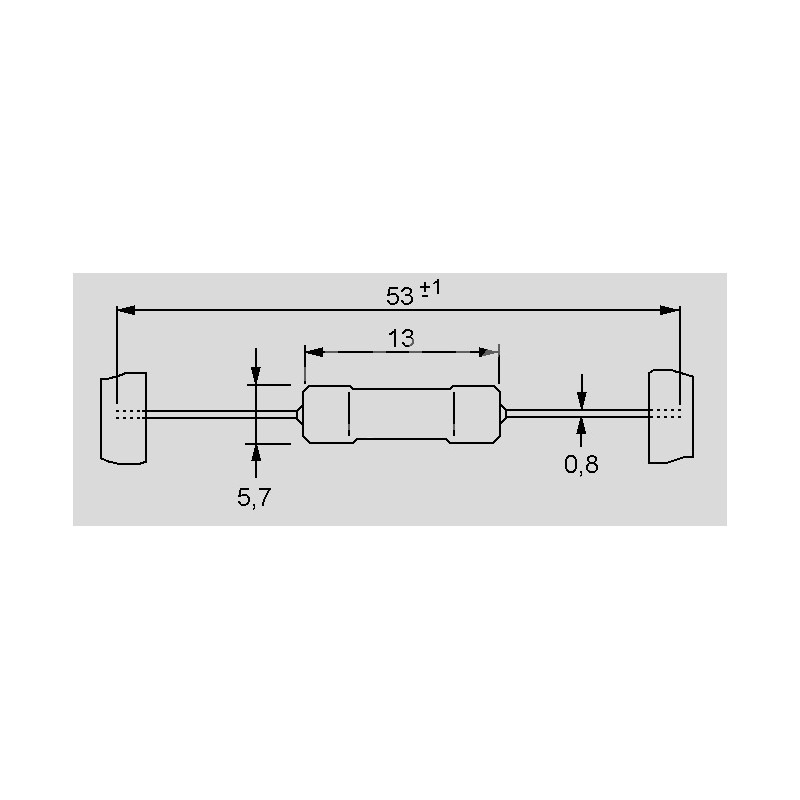

* housing: 0613
* taped
* series: G202
* all welded construction
* ceramic core
* resistance tolerance: ±5%
* power rating (40°C): 4W
* working voltage, max.: 200Vrms
* temperature coefficient: 100...180x10-6/K
* by Vishay

0613 5% 33 R

42373 0613 5% 33 R G22041433309J4C000 G22041433309J4C000 wirewound resistors G202 by Vishay. * housing: 0613* taped* series: G202* all welded construction* ceramic core* resistance tolerance: ±5%* power rating (40°C): 4W* working voltage, max.: 200Vrms* temperature coefficient: 100...180x10-6/K* by Vishay

Specifications

manufacturer
Manufacturer's name G22041433309J4C000
Design 0613
Resistance [Ω] 33
Power [W] 4
Tolerance [%] 5
Data Sheet

Unit price

0,414 €

Stock: 140
Next incoming goods:
CW 10/2025
500 units


Further delivery:
CW 13/2025

Minimum order quantity 10 units or
multiples of 10.
