0613 5% 0,22 R

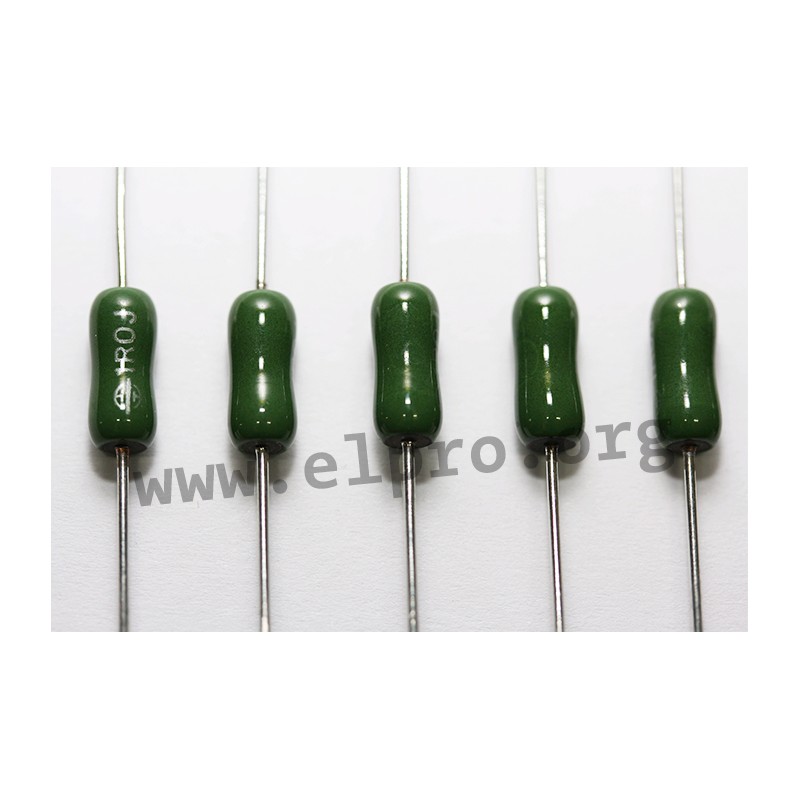

wirewound resistors G202 by Vishay

* housing: 0613
* taped
* series: G202
* all welded construction
* ceramic core
* resistance tolerance: ±5%
* power rating (40°C): 4W
* working voltage, max.: 200Vrms
* temperature coefficient: 100...180x10-6/K
* by Vishay

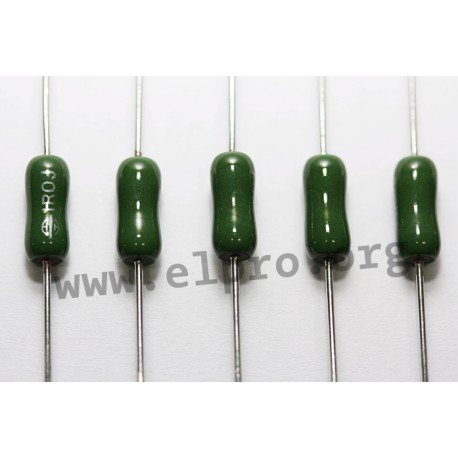

series G202 by Vishay

0613 5% 0,22 R

42364 0613 5% 0,22 R G22041432207J4C000 G22041432207J4C000 wirewound resistors G202 by Vishay. * housing: 0613* taped* series: G202* all welded construction* ceramic core* resistance tolerance: ±5%* power rating (40°C): 4W* working voltage, max.: 200Vrms* temperature coefficient: 100...180x10-6/K* by Vishay

Specifications

manufacturer
Manufacturer's name G22041432207J4C000

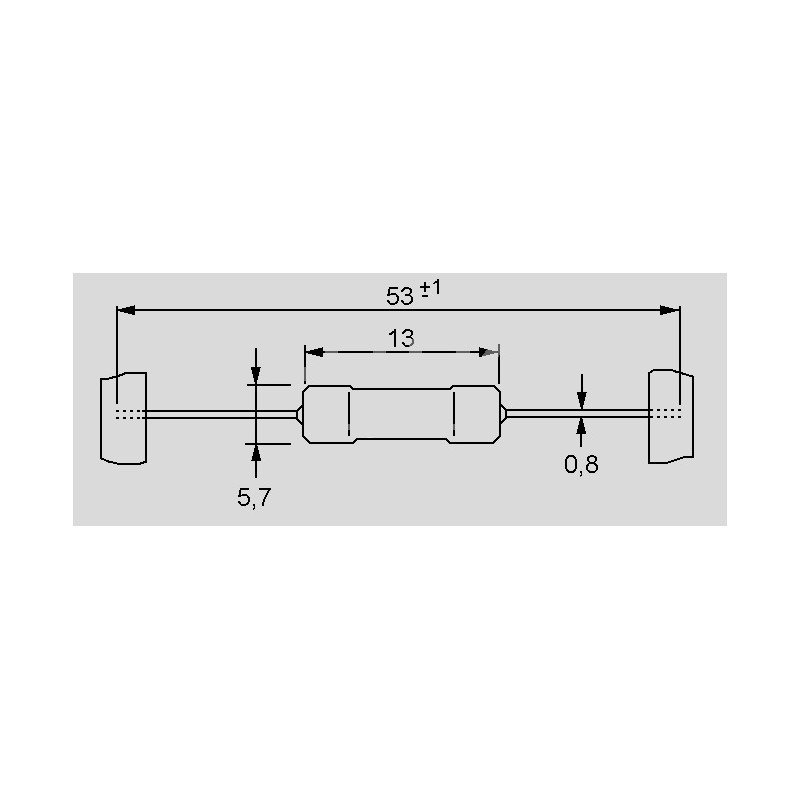

Design 0613
Resistance [Ω] 0,22
Power [W] 4
Tolerance [%] 5
Data Sheet

Unit price

0,491 €

Stock: 840
Next incoming goods:
CW 10/2025
500 units

Further delivery:
CW 13/2025

Minimum order quantity 10 units or
multiples of 10.
