0603-SMD 1% 2,2 M

SMD thick film chip resistors

• housing: 0603
• taped
• power: 0.1 Watt
• tolerance: 1%
• resistive film on high quality ceramic
• protective overglaze
• excellent stability in different environmental conditions
• 75 Vrms  max. operating voltage
• 550 K/W thermal resistance
• temperature coefficient: ±100x10-6/K
• temperature range: up -55 to +155°C
• climatic category: 55/125/56
• 0,1x10 -9/h failure rate
• derating up 70 ° to 155 °C (0 W), linear

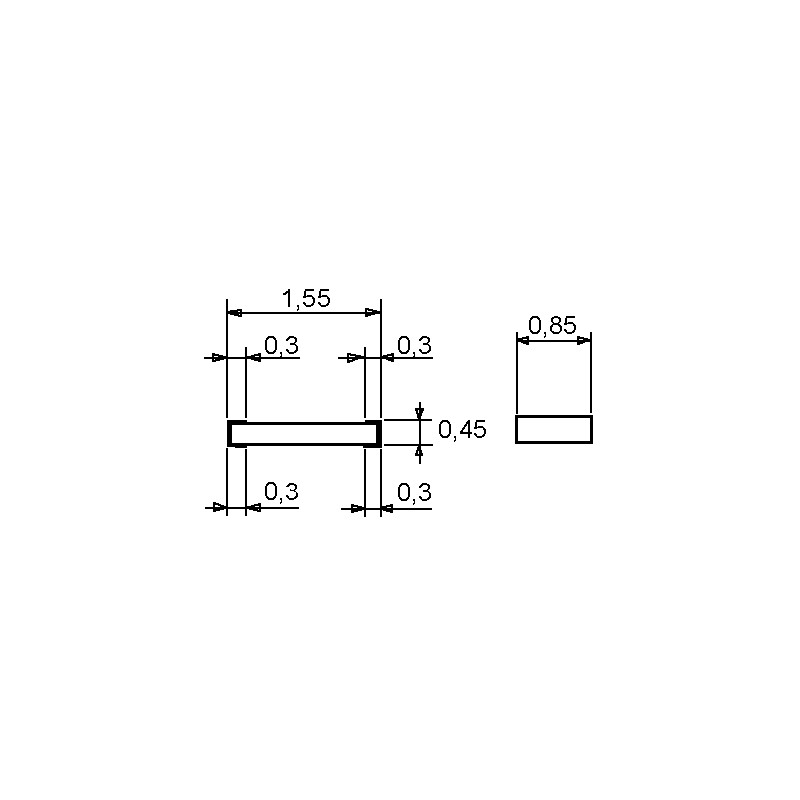

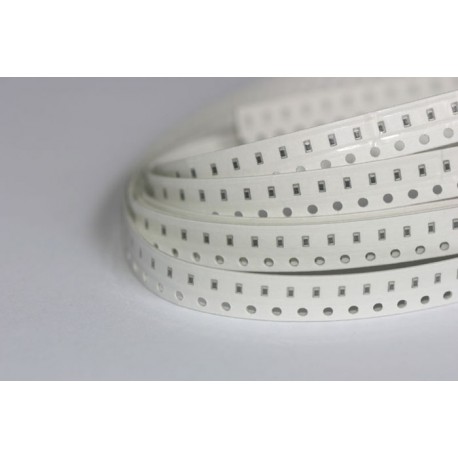

case 0603

0603-SMD 1% 2,2 M

26813 0603-SMD 1% 2,2 M CRCW06032M20FKEA CRCW06032M20FKEA SMD thick film chip resistors. • housing: 0603• taped• power: 0.1 Watt• tolerance: 1%• resistive film on high quality ceramic• protective overglaze• excellent stability in different environmental conditions• 75 Vrms  max. operating voltage• 550 K/W thermal resistance• temperature coefficient: ±100x10-6/K• temperature range: up -55 to +155°C• climatic category: 55/125/56• 0,1x10 -9/h failure rate• derating up 70 ° to 155 °C (0 W), linear

Specifications

manufacturer
Manufacturer's name CRCW06032M20FKEA
Design 0603
Resistance [Ω] 2,2M
Power [W] 0,1
Tolerance [%] 1

Unit price

0,0054 €

Stock: 32740
Further delivery:
CW 09/2025

Minimum order quantity 1 to 740 units or multiples of 1.000 plus 0 to 740 .
