0603-SMD 1% 8,2 k

SMD thick film chip resistors

• housing: 0603

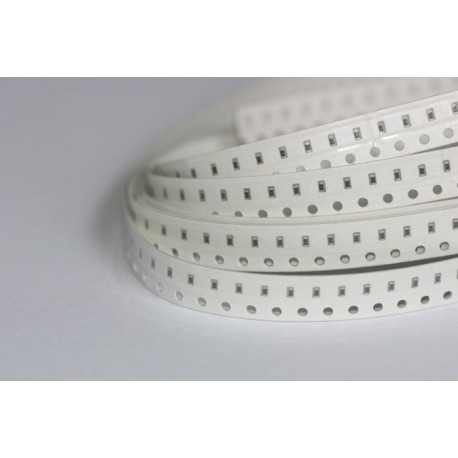

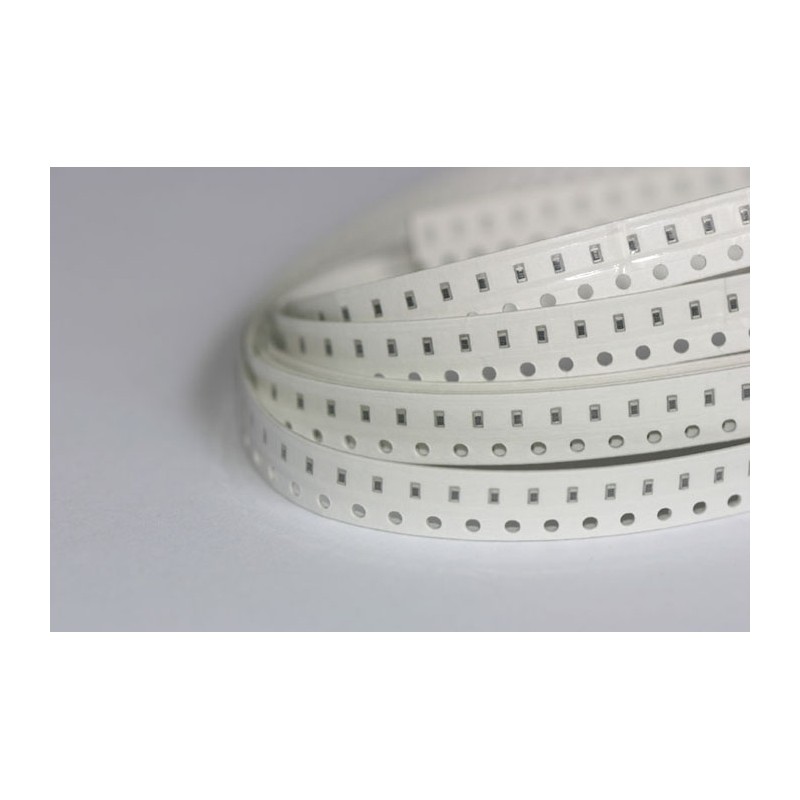

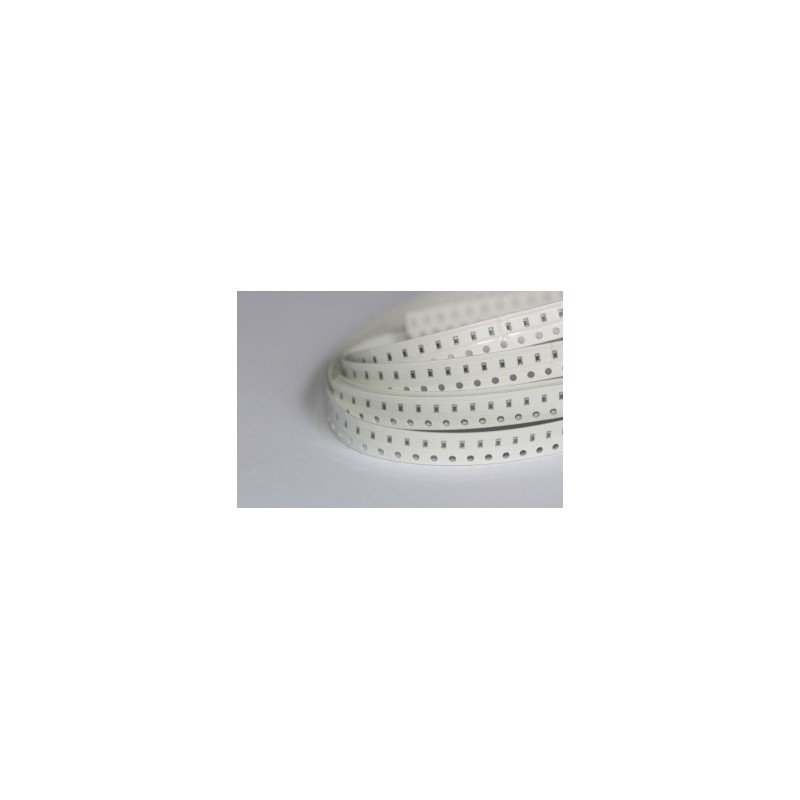

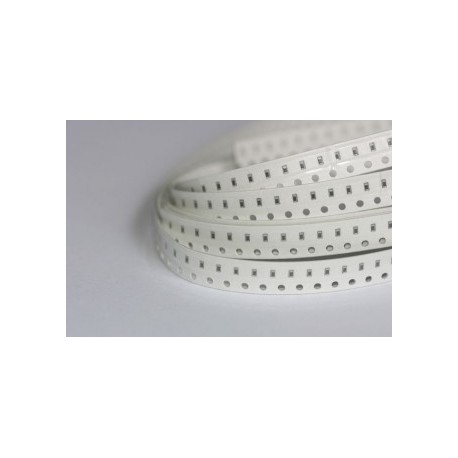

• taped
• power (at 70 °C): 0.1 Watt
• tolerance: 1%
* suitable for commercial applications
• resistive film on high quality ceramic
• protective overglaze
• excellent stability in different environmental conditions
• 50 Veff  max. operating voltage
* min. insulation resistance: 109Ω
• 550 K/W thermal resistance
• temperature coefficient: ±100x10-6/K
• temperature range: up -55 to +125°C
• climatic category: 55/125/56
* 3x10 -9/h failure rate
* derating up 70 ° to 125 °C (0 W), linear

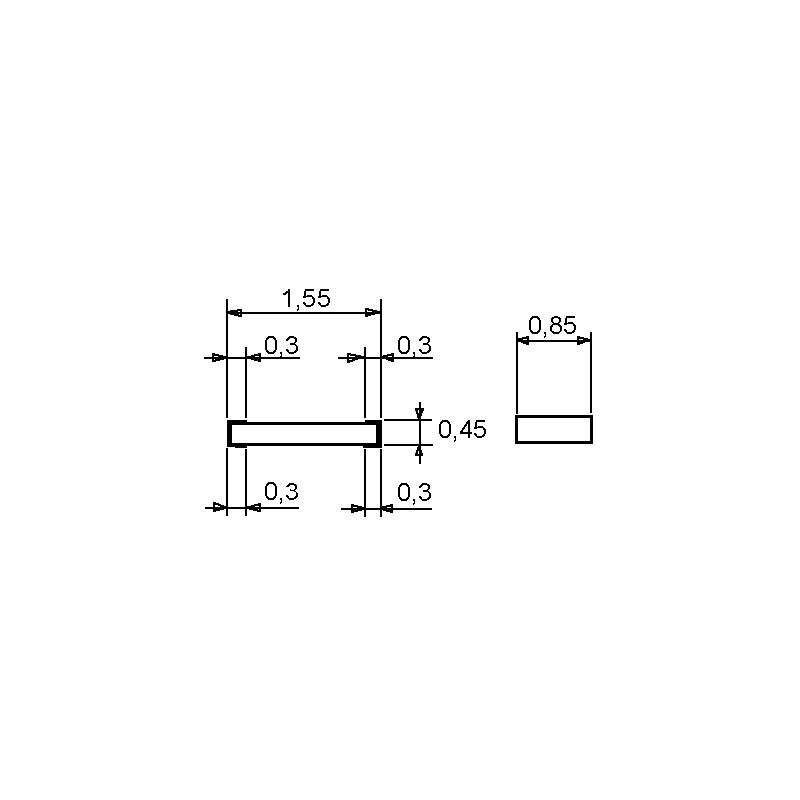

case 0603

0603-SMD 1% 8,2 k

18720 0603-SMD 1% 8,2 k CRCW06038K20FKTABC CRCW06038K20FKTABC SMD thick film chip resistors. • housing: 0603• taped• power (at 70 °C): 0.1 Watt• tolerance: 1%* suitable for commercial applications• resistive film on high quality ceramic• protective overglaze• excellent stability in different environmental conditions• 50 Veff  max. operating voltage* min. insulation resistance: 109Ω• 550 K/W thermal resistance• temperature coefficient: ±100x10-6/K• temperature range: up -55 to +125°C• climatic category: 55/125/56* 3x10 -9/h failure rate* derating up 70 ° to 125 °C (0 W), linear

Specifications

manufacturer
Manufacturer's name CRCW06038K20FKTABC
Design taped
Design 0603
Resistance [Ω] 8,2k
Power [W] 0,1
Tolerance [%] 1
Data Sheet

Unit price

0,0016 €

Stock: 74900
Further delivery:
CW 24/2025

Minimum order quantity 1 to 4900 units or multiples of 5.000 plus 0 to 4900 .
