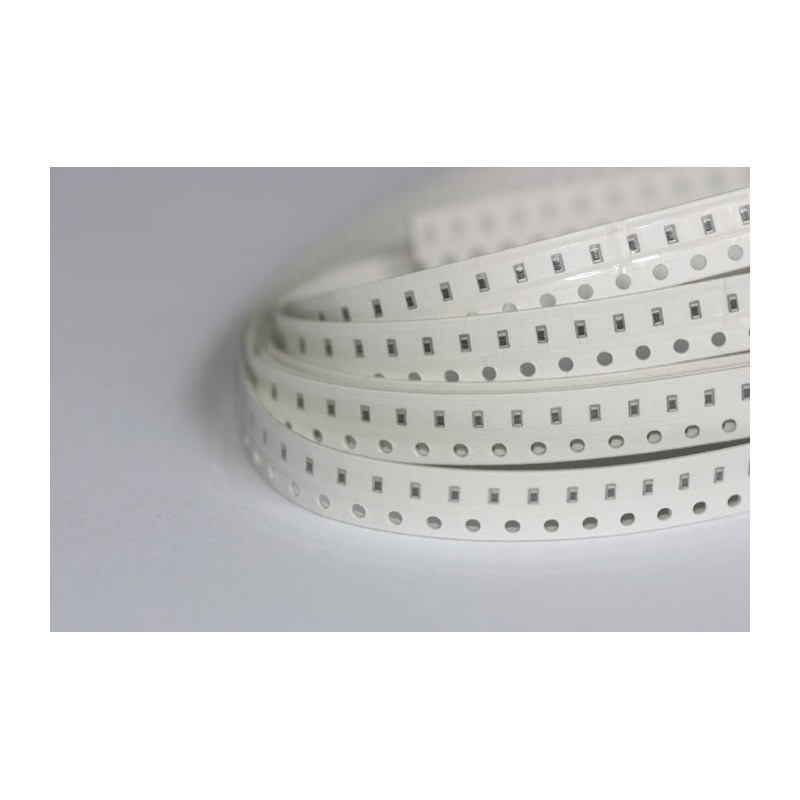

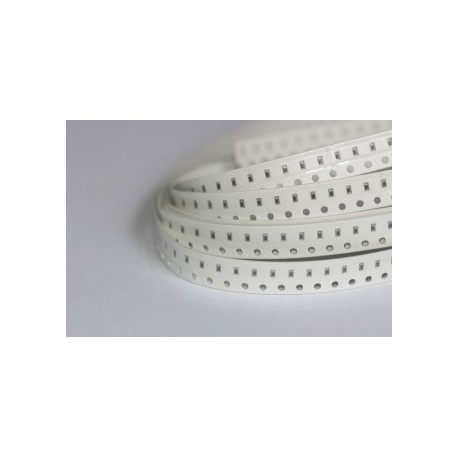

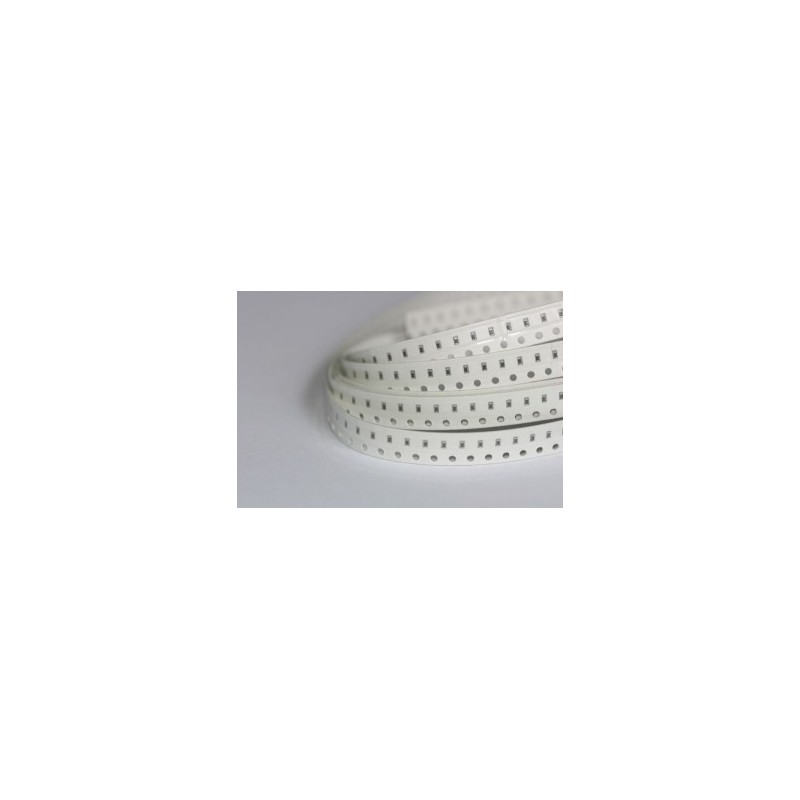

0603-SMD 1% 56 R

SMD thick film chip resistors

• housing: 0603
• taped
• power (at 70 °C): 0.1 Watt
• tolerance: 1%
• suitable for commercial applications
• resistive film on high quality ceramic
• protective overglaze
• excellent stability in different environmental conditions
• 50 Veff  max. operating voltage
• min. insulation resistance: 109Ω
• 550 K/W thermal resistance
• temperature coefficient: ±100x10-6/K
• temperature range: up -55 to +125°C
• climatic category: 55/125/56
• 3x10 -9/h failure rate
• derating up 70 ° to 125 °C (0 W), linear

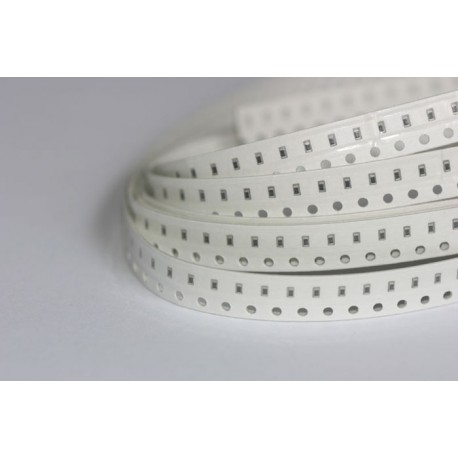

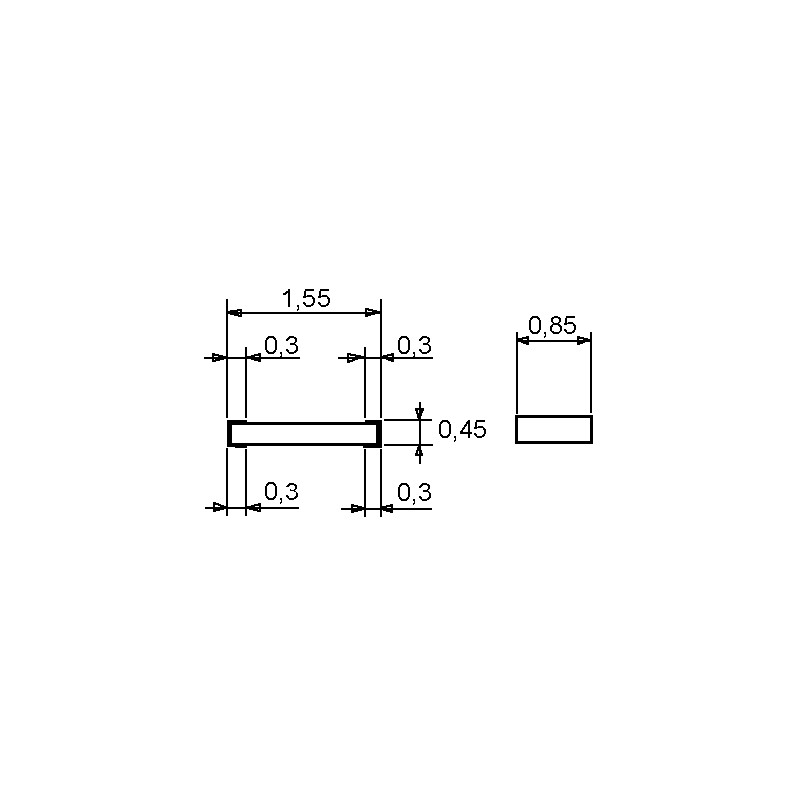

case 0603

0603-SMD 1% 56 R

18694 0603-SMD 1% 56 R CRCW060356R0FKTABC CRCW060356R0FKTABC SMD thick film chip resistors. • housing: 0603• taped• power (at 70 °C): 0.1 Watt• tolerance: 1%• suitable for commercial applications• resistive film on high quality ceramic• protective overglaze• excellent stability in different environmental conditions• 50 Veff  max. operating voltage• min. insulation resistance: 109Ω• 550 K/W thermal resistance• temperature coefficient: ±100x10-6/K• temperature range: up -55 to +125°C• climatic category: 55/125/56• 3x10 -9/h failure rate• derating up 70 ° to 125 °C (0 W), linear

Specifications

manufacturer
Manufacturer's name CRCW060356R0FKTABC
Design taped
Design 0603
Resistance [Ω] 56
Power [W] 0,1
Tolerance [%] 1
Data Sheet

Unit price

0,0016 €

Stock: 54286
Further delivery:
CW 24/2025

Minimum order quantity 1 to 4286 units or multiples of 5.000 plus 0 to 4286 .
