> Passive elements>Resistors>SMD resistors>Vishay SMD resistors, 0603 housing, 1%, 0,1W, CRCW0603 series>0603-SMD 0 R

Manufacturers

0603-SMD 0 R

SMD thick film chip resistors

• housing: 0603

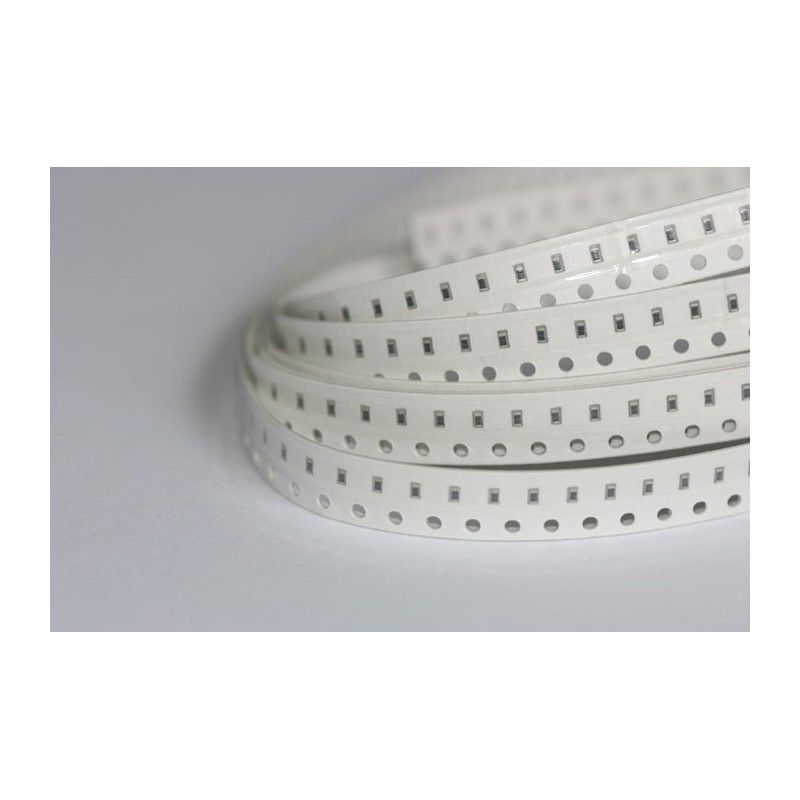

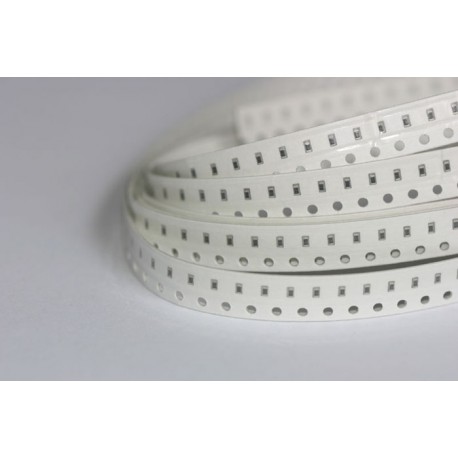

• taped
• power (at 70 °C): 0.1 Watt
• tolerance: 1%
• suitable for commercial applications
• resistive film on high quality ceramic
• protective overglaze
• excellent stability in different environmental conditions
• 50 Veff  max. operating voltage
• min. insulation resistance: 109Ω
• 550 K/W thermal resistance
• temperature coefficient: ±100x10-6/K
• temperature range: up -55 to +125°C
• climatic category: 55/125/56
• 3x10 -9/h failure rate
• derating up 70 ° to 125 °C (0 W), linear

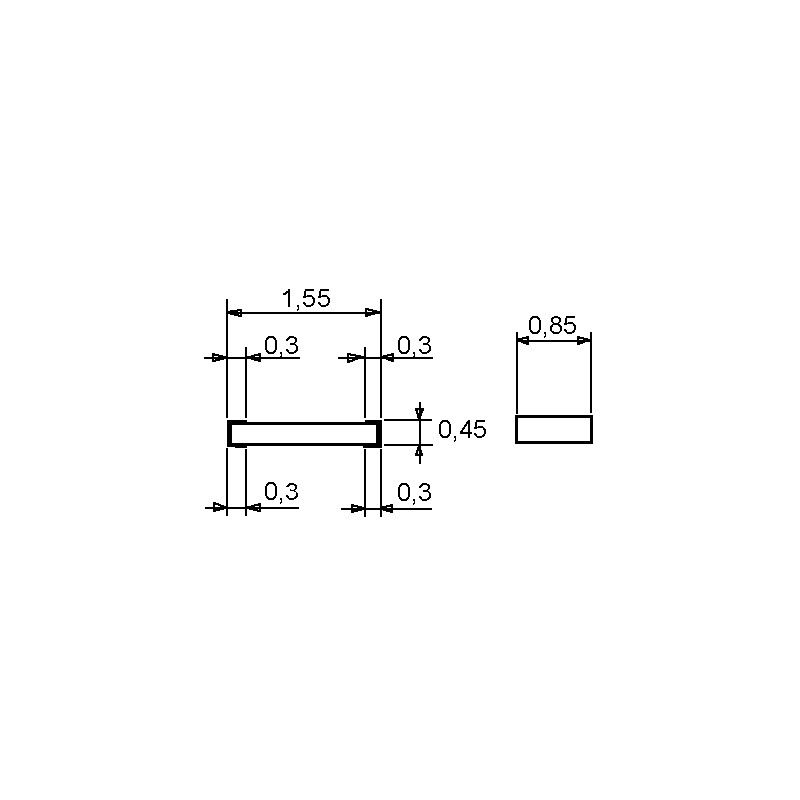

case 0603

0603-SMD 0 R

18388 0603-SMD 0 R CRCW06030000Z0TABC CRCW06030000Z0TABC SMD thick film chip resistors. • housing: 0603• taped• power (at 70 °C): 0.1 Watt• tolerance: 1%• suitable for commercial applications• resistive film on high quality ceramic• protective overglaze• excellent stability in different environmental conditions• 50 Veff  max. operating voltage• min. insulation resistance: 109Ω• 550 K/W thermal resistance• temperature coefficient: ±100x10-6/K• temperature range: up -55 to +125°C• climatic category: 55/125/56• 3x10 -9/h failure rate• derating up 70 ° to 125 °C (0 W), linear

Specifications

manufacturer
Manufacturer's name CRCW06030000Z0TABC
Design 0603
Power [W] 0,1
Data Sheet

Unit price

0,0016 €

Stock: 151895
Next incoming goods:
CW 10/2025
40000 units

Further delivery:
CW 29/2025

Minimum order quantity 1 to 1895 units or multiples of 5.000 plus 0 to 1895 .
