R 10 SC 8 Ohm

Visaton miniature speaker series K, SL and R

Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

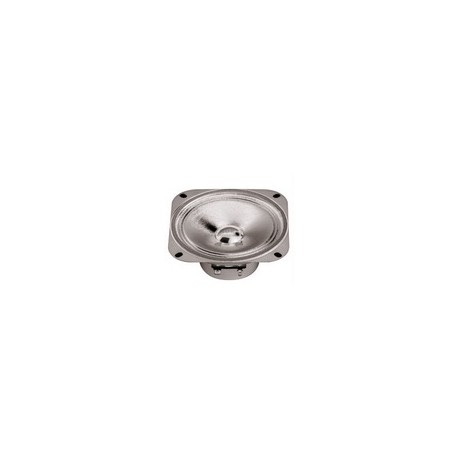

fullrange speakers by Visaton

R 10 SC 8 Ohm

108788 R 10 SC 8 Ohm 2041 2041 Visaton miniature speaker series K, SL and R. Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

Specifications

manufacturer
Manufacturer's name 2041
Voice coil-∅[mm] 15
W [g] 240
Cut-out diameter [mm] 93
Height of winding [mm] 4
Height of front pole-plate [mm] 3
Resonant frequency [Hz] 165
Sound pressure level [dB] 90
Frequency response [Hz] 100-13000
Music power rating [W] 30
Rated power [W] 20
Impedance [Ω] 8
Data Sheet

Unit price

8,09 €

Stock: 0
Further delivery:
CW 49/2024

Minimum order quantity 5 units or
multiples of 5.
