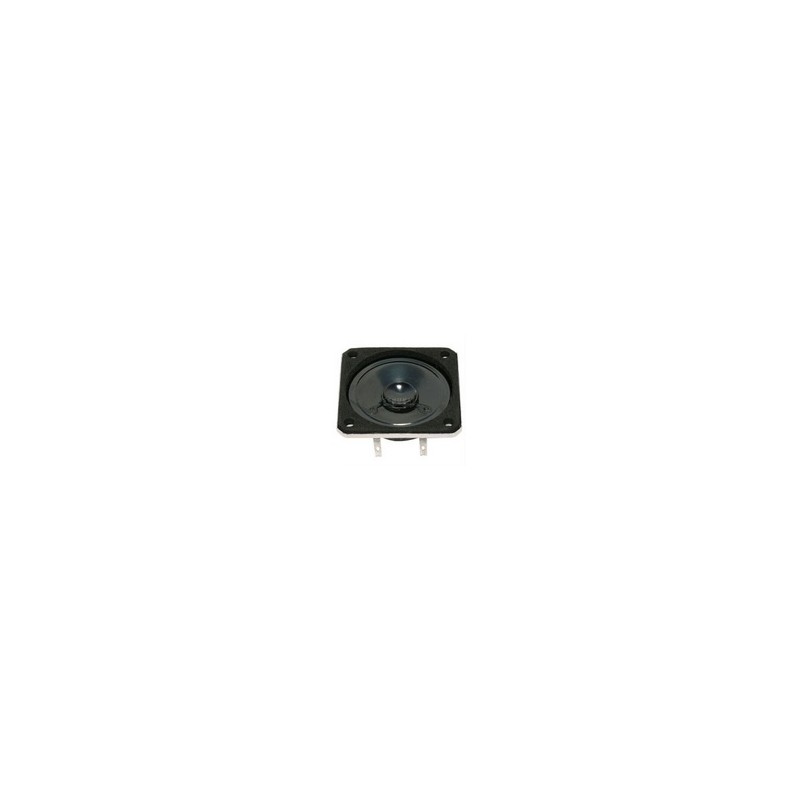

K 50 SQ 8 Ohm

Visaton miniature speaker series K, SL and R

Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

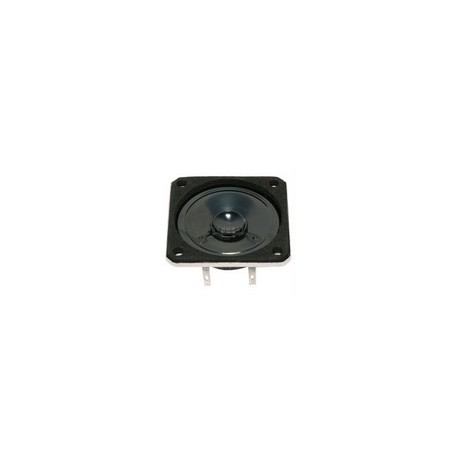

miniature speakers by Visaton

K 50 SQ 8 Ohm

108783 K 50 SQ 8 Ohm 2897 2897 Visaton miniature speaker series K, SL and R. Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

Specifications

manufacturer
Manufacturer's name 2897
Voice coil-∅[mm] 14
W [g] 50
Cut-out diameter [mm] 45
Height of winding [mm] 3
Height of front pole-plate [mm] 2
Resonant frequency [Hz] 480
Sound pressure level [dB] 83
Frequency response [Hz] 250...10000
Music power rating [W] 3
Rated power [W] 2
Impedance [Ω] 8

Unit price

6,19 €

Stock: 0
Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
