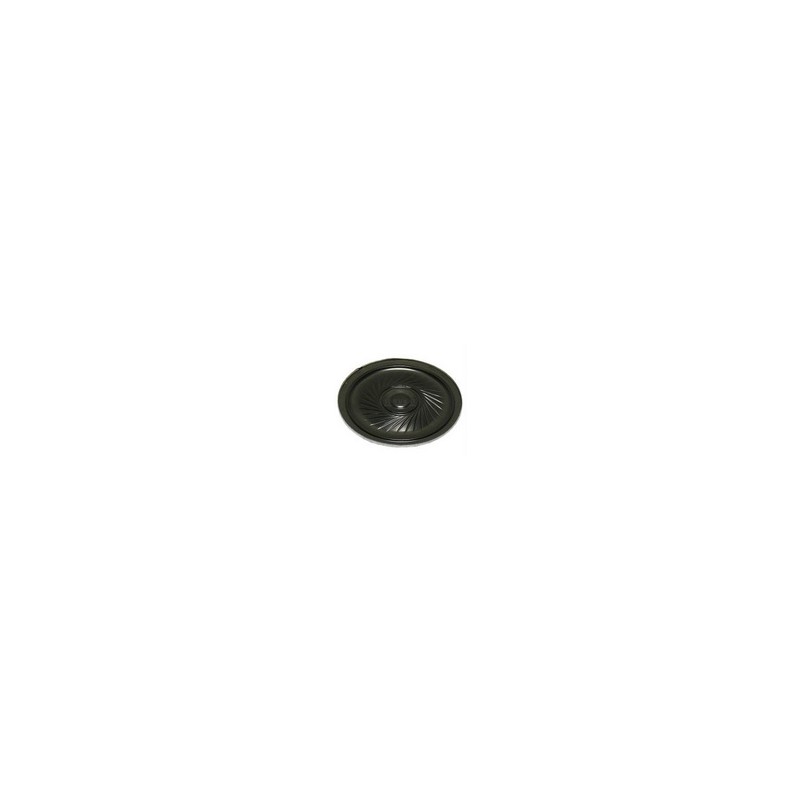

K 40 8 Ohm

Visaton miniature speaker series K, SL and R

Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

miniature speakers by Visaton

K 40 8 Ohm

108780 K 40 8 Ohm 2840 2840 Visaton miniature speaker series K, SL and R. Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

Specifications

manufacturer
Manufacturer's name 2840
Voice coil-∅[mm] 13,5
W [g] 10
Cut-out diameter [mm] 36,5
Height of winding [mm] 1,8
Resonant frequency [Hz] 520
Sound pressure level [dB] 83
Frequency response [Hz] 350...6000
Music power rating [W] 2
Rated power [W] 1
Impedance [Ω] 8
Data Sheet

Unit price

4,59 €

Stock: 0
Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
