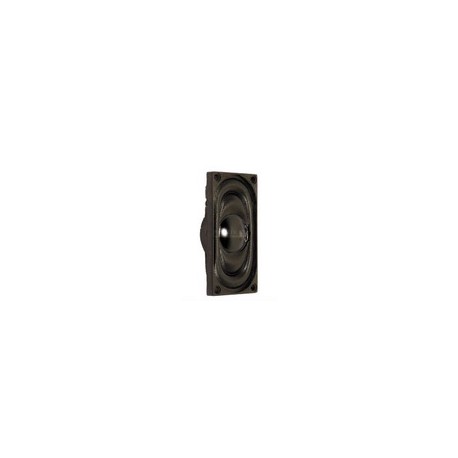

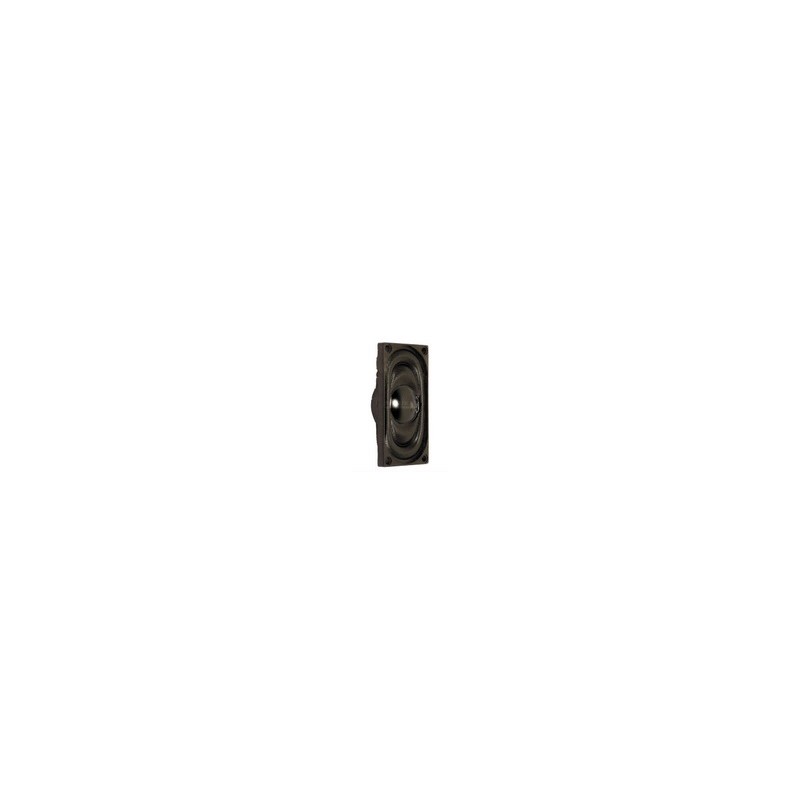

K 20.40 8 Ohm

Visaton miniature speaker series K, SL and R

Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

miniature speakers by Visaton

K 20.40 8 Ohm

108775 K 20.40 8 Ohm 2941 2941 Visaton miniature speaker series K, SL and R. Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

Specifications

manufacturer
Manufacturer's name 2941
Voice coil-∅[mm] 12
W [g] 7

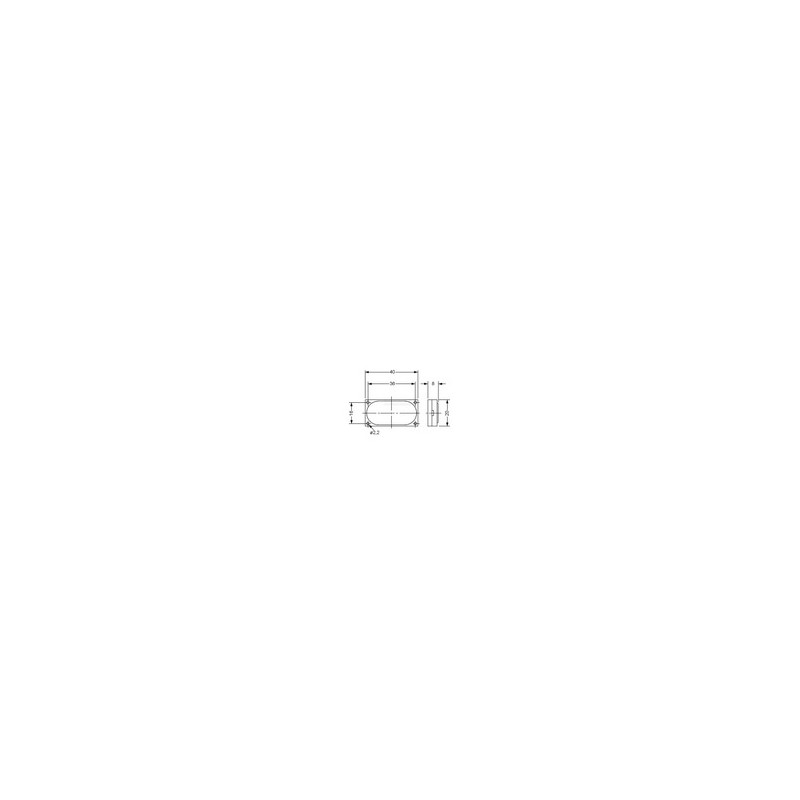

Cut-out diameter [mm] 38x18
Height of winding [mm] 1
Resonant frequency [Hz] 600
Sound pressure level [dB] 76
Frequency response [Hz] 300...20000
Music power rating [W] 2
Rated power [W] 1
Impedance [Ω] 8
Data Sheet

Unit price

5,19 €

Stock: 20
Further delivery:
CW 49/2024

Minimum order quantity 5 units or
multiples of 5.
