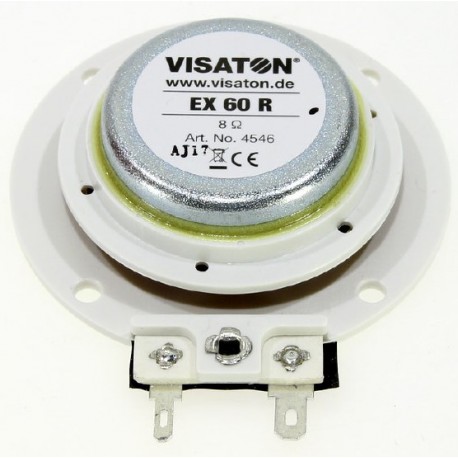

EX 60 R 8 Ohm

Electro dynamical exciter series EX by Visaton

These exciters are suitable for stimulating bending waves on plates and can be mounted to the surface of the plate by gluing or screwing. Suited for signal output in applications where normal speakers cannot be installed for optical reasons or due to environmental influences or vandalism. We offer the types EX 30 S 8 Ohm, EX 45 S 4 Ohm, EX 45 S 8 Ohm, EX 60 S 4 Ohm, EX 60 S 8 Ohm, EX 60 R 8 Ohm and EX 80 S 8 Ohm of this series by Visaton as well as the following gluing pads for fitting: Pad EX 60 S (suited for EX 60 S 4 Ohm and EX 60 S 8 Ohm), Pad EX 60 R (suited for EX 60 R 8 Ohm).

EX 60 R 8 Ohm

EX 60 R 8 Ohm

111672 EX 60 R 8 Ohm 4546 4546 Electro dynamical exciter series EX by Visaton. These exciters are suitable for stimulating bending waves on plates and can be mounted to the surface of the plate by gluing or screwing. Suited for signal output in applications where normal speakers cannot be installed for optical reasons or due to environmental influences or vandalism. We offer the types EX 30 S 8 Ohm, EX 45 S 4 Ohm, EX 45 S 8 Ohm, EX 60 S 4 Ohm, EX 60 S 8 Ohm, EX 60 R 8 Ohm and EX 80 S 8 Ohm of this series by Visaton as well as the following gluing pads for fitting: Pad EX 60 S (suited for EX 60 S 4 Ohm and EX 60 S 8 Ohm), Pad EX 60 R (suited for EX 60 R 8 Ohm).

Specifications

manufacturer
Manufacturer's name 4546
Voice coil-∅[mm] 32,5
Impedance [Ω] 8
Power, max. [W] 25
Data Sheet

Unit price

35,99 €

Stock: 4
Further delivery:
CW 49/2024
