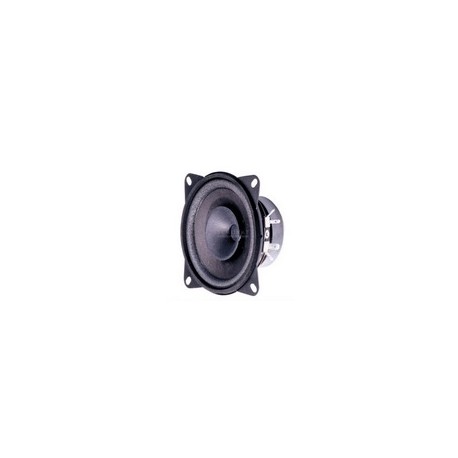

FR 10 HM 8 Ohm

Visaton fullrange speaker series BF/FRWS/FRS/FR/SC

These speakers are characterized by a balanced frequency response and a very high efficiency. Their temperature range is from -25 to 100°C. We offer various types of this Visaton series as well as matching protective grids.

fullrange speakers by Visaton

FR 10 HM 8 Ohm

108794 FR 10 HM 8 Ohm 4899 4899 Visaton fullrange speaker series BF/FRWS/FRS/FR/SC. These speakers are characterized by a balanced frequency response and a very high efficiency. Their temperature range is from -25 to 100°C. We offer various types of this Visaton series as well as matching protective grids.

Specifications

manufacturer
Manufacturer's name 4899
Voice coil-∅[mm] 14
W [g] 340
Cut-out diameter [mm] 94
Height of winding [mm] 5
Height of front pole-plate [mm] 2
Resonant frequency [Hz] 120
Sound pressure level [dB] 86
Frequency response [Hz] 95...22000
Music power rating [W] 30
Rated power [W] 20
Impedance [Ω] 8
Data Sheet

Unit price

6,69 €

Stock: 0
Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
