CSRV0207FTDT1203 120k

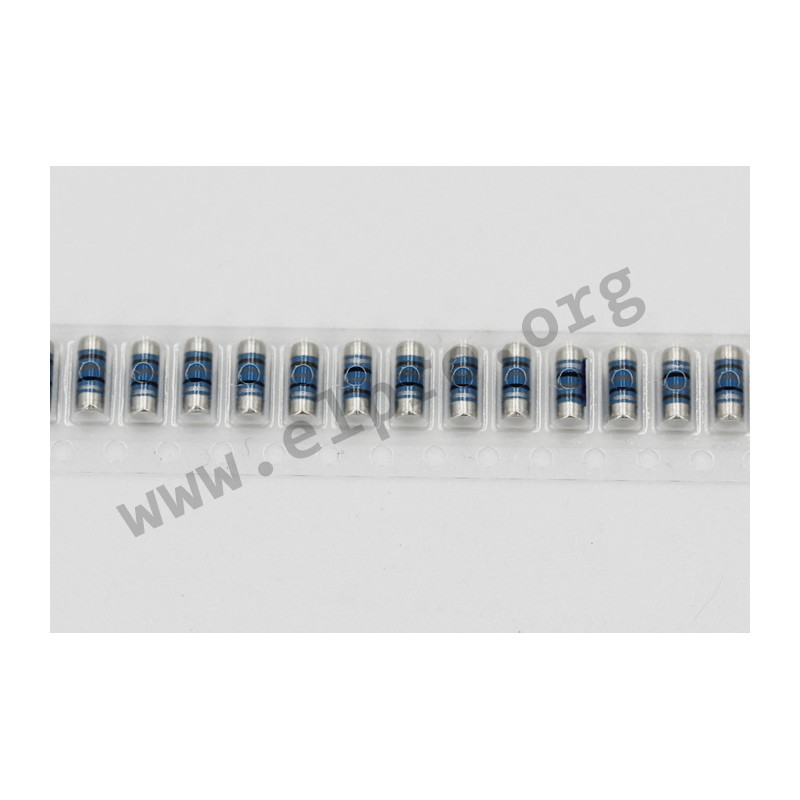

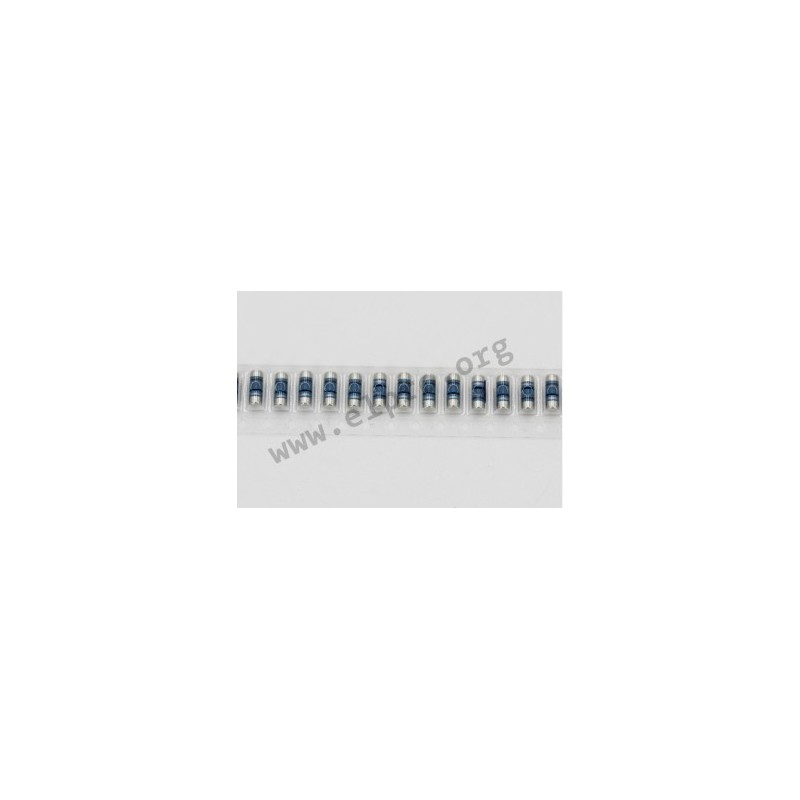

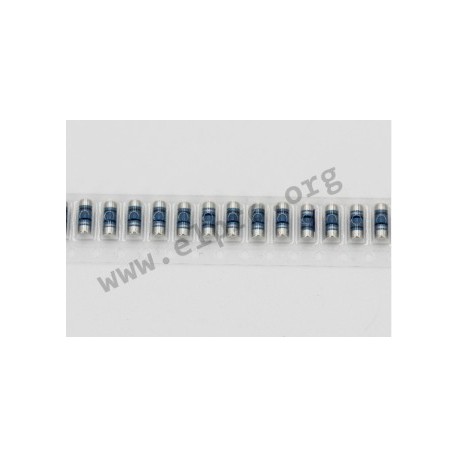

Viking resistor series CSRV0207

Metal film resistors in a MiniMelf 0207 housing with 1W, thin film technology and an excellent overall stability. These resistors have a tolerance of 1% and comply with AEC-Q200. They have an Sn termination on an Ni barrier layer and a temperature coefficient of ±50ppm/°C. We offer various types of this Viking series.

  • rated current: 3A
  • power: 1W
  • tolerance: ±1%
  • maximal operating voltage: 200V
  • temperature coefficient: ±50ppm/°C
  • operating temperature: -55 to +155°C
  • weight: 0,0809g

CSRV0207FTDT1203 120k

243727 CSRV0207FTDT1203 120k CSRV0207FTDT1203 CSRV0207FTDT1203 Viking resistor series CSRV0207. Metal film resistors in a MiniMelf 0207 housing with 1W, thin film technology and an excellent overall stability. These resistors have a tolerance of 1% and comply with AEC-Q200. They have an Sn termination on an Ni barrier layer and a temperature coefficient of ±50ppm/°C. We offer various types of this Viking series. rated current: 3A power: 1W tolerance: ±1% maximal operating voltage: 200V temperature coefficient: ±50ppm/°C operating temperature: -55 to +155°C weight: 0,0809g

Specifications

manufacturer
Manufacturer's name CSRV0207FTDT1203
Resistance [Ω] 120.000
Power [W] 1
Tolerance [%] ±1
Data Sheet

Unit price

0,049 €

Stock: 6000
Further delivery:
CW 12/2025

Minimum order quantity 100 units or
multiples of 100.
