CSRV0204FTDV1803 180k

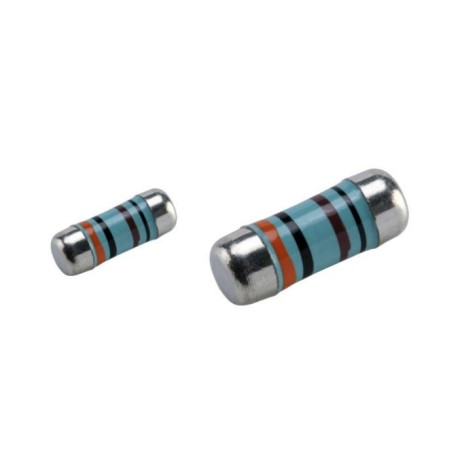

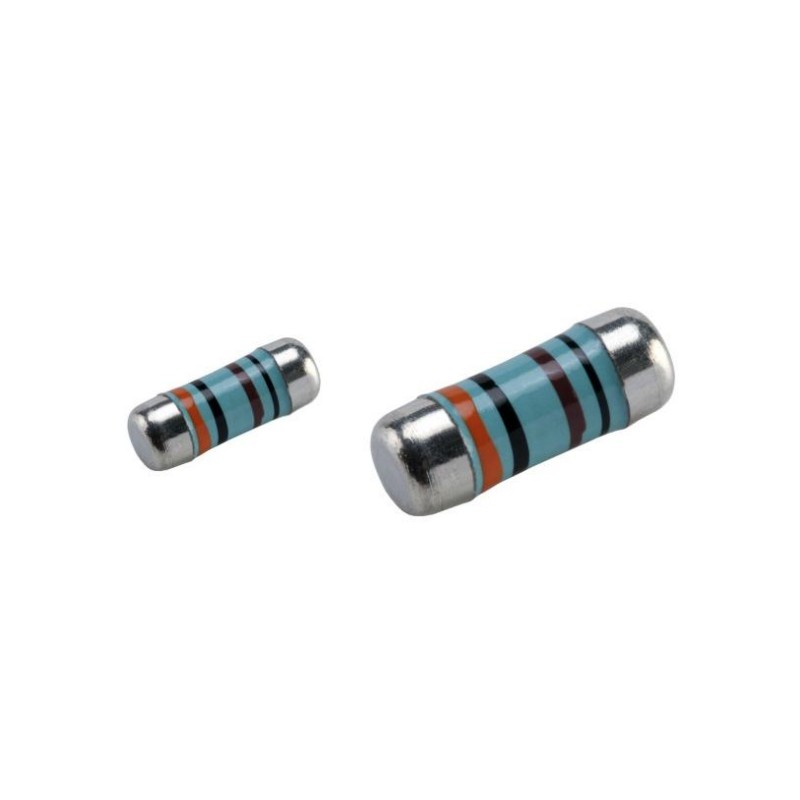

Viking MiniMelf resistor series CSRV0204

Metal film resistors in a MiniMelf housing (0204) with 0,25W and an excellent overall stability. These devices have an Sn termination on an Ni barrier layer and comply with AEC-Q200. They have a low temperature coefficient (Tc = ±50ppm/°C) and a tolerance of 1%. We offer various types of this Viking series.

  • power: 0,25W
  • resistance tolerance: ±1%
  • maximal operating voltage: 200V
  • rated current: 3A
  • temperature coefficient: ±50ppm/°C
  • operating temperature: -55 to +155°C
  • weight: 0,0187g
  • taped
CSRV0204FTDV1803, Viking MiniMelf resistors, 1%, 0,25W, CSRV0204 series

CSRV0204FTDV1803 180k

244198 CSRV0204FTDV1803 180k CSRV0204FTDV1803 CSRV0204FTDV1803 Viking MiniMelf resistor series CSRV0204. Metal film resistors in a MiniMelf housing (0204) with 0,25W and an excellent overall stability. These devices have an Sn termination on an Ni barrier layer and comply with AEC-Q200. They have a low temperature coefficient (Tc = ±50ppm/°C) and a tolerance of 1%. We offer various types of this Viking series. power: 0,25W resistance tolerance: ±1% maximal operating voltage: 200V rated current: 3A temperature coefficient: ±50ppm/°C operating temperature: -55 to +155°C weight: 0,0187g taped

Specifications

manufacturer
Manufacturer's name CSRV0204FTDV1803
Case 0204
Resistance [kΩ] 180
Resistance tolerance [%] 1
Power [W] 0,25
Data Sheet

Unit price

0,0161 €

Stock: 6000
Further delivery:
CW 13/2025

Minimum order quantity 100 units or
multiples of 100.
