ARM05BTCW2201A 2,2k

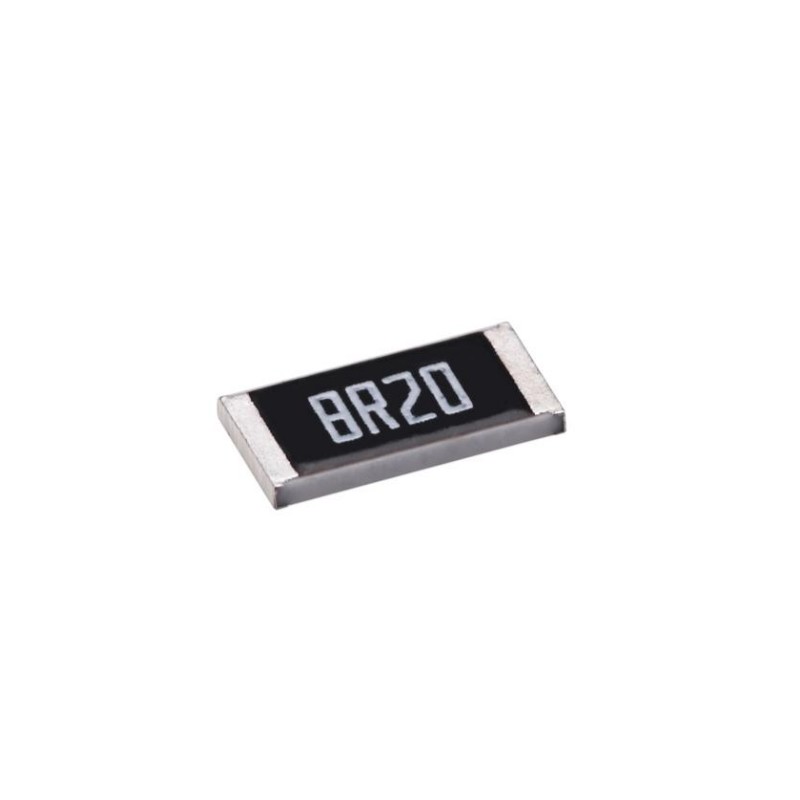

Viking SMD resistor series ARM05B

Metal thin film chip resistor in an 0805 SMD housing with 0,125W and a tolerance of 0,1%. These resistors comply with AEC-Q200 and have a low temperature coefficient (Tc = ±25ppm/°C). They have an advanced sulfur resistance according to ASTM B 809 and are suitable for direct PCB mounting. We offer various types of this Viking series.

  • power: 0,125W
  • resistance tolerance: ±0,1%
  • maximal operating voltage: 100V
  • temperature coefficient: ±25x16-6/°C
  • operating temperature: -55 to +155°C
  • taped

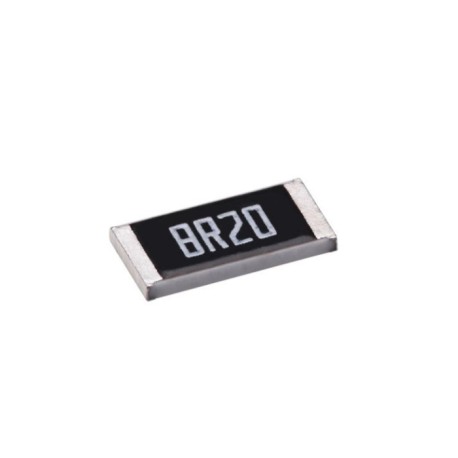

ARM05BTCW2201A, Viking SMD resistors, 0805 housing, 0,1%, 0,125W, ARM05B series

ARM05BTCW2201A 2,2k

244005 ARM05BTCW2201A 2,2k ARM05BTCW2201A ARM05BTCW2201A Viking SMD resistor series ARM05B. Metal thin film chip resistor in an 0805 SMD housing with 0,125W and a tolerance of 0,1%. These resistors comply with AEC-Q200 and have a low temperature coefficient (Tc = ±25ppm/°C). They have an advanced sulfur resistance according to ASTM B 809 and are suitable for direct PCB mounting. We offer various types of this Viking series. power: 0,125W resistance tolerance: ±0,1% maximal operating voltage: 100V temperature coefficient: ±25x16-6/°C operating temperature: -55 to +155°C taped

Specifications

manufacturer
Manufacturer's name ARM05BTCW2201A
Case 0805
Resistance [kΩ] 2,2
Resistance tolerance [%] 0,1
Power [W] 0,125
Data Sheet

Unit price

0,055 €

Stock: 5000
Further delivery:
CW 10/2025

Minimum order quantity 100 units or
multiples of 100.
