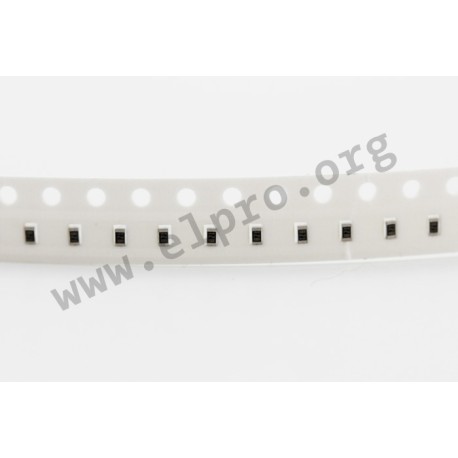

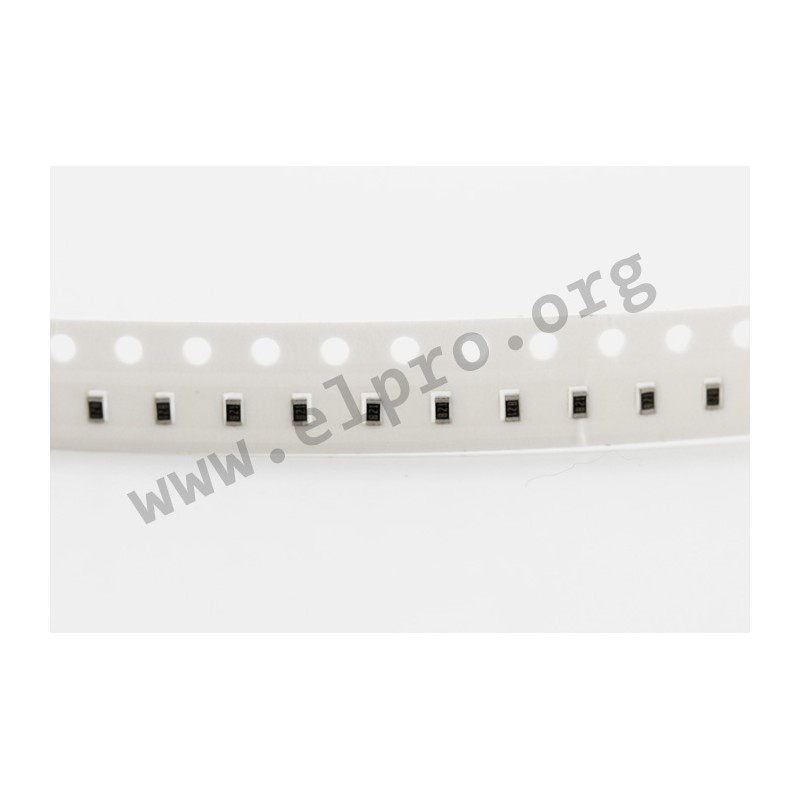

ARM03BTCX6801A 6,8k

Viking SMD resistor series ARM03B

Metal thin film chip resistors in an 0603 SMD housing with 0,1W and a low tolerance (0,1%). These resistors comply with AEC-Q200 and have an advanced sulfur resistance according to ASTM B 809. They are suitable for direct PCB mounting (SMD) and have a temperature coefficient of ±25ppm/°C. We offer various types of this Viking series.

  • power: 0,1W
  • resistance tolerance: ±0,1%
  • maximal operating voltage: 100V
  • temperature coefficient: ±25x10-6/°C
  • operating temperature: -55 to +155°C
  • taped
ARM03BTCX6801A, Viking SMD resistors, 0603 housing, 0,1%, 0,1W, ARM03B series

ARM03BTCX6801A 6,8k

243917 ARM03BTCX6801A 6,8k ARM03BTCX6801A ARM03BTCX6801A Viking SMD resistor series ARM03B. Metal thin film chip resistors in an 0603 SMD housing with 0,1W and a low tolerance (0,1%). These resistors comply with AEC-Q200 and have an advanced sulfur resistance according to ASTM B 809. They are suitable for direct PCB mounting (SMD) and have a temperature coefficient of ±25ppm/°C. We offer various types of this Viking series. power: 0,1W resistance tolerance: ±0,1% maximal operating voltage: 100V temperature coefficient: ±25x10-6/°C operating temperature: -55 to +155°C taped

Specifications

manufacturer
Manufacturer's name ARM03BTCX6801A
Case 0603
Resistance [kΩ] 6,8
Resistance tolerance [%] 0,1
Power [W] 0,1
Data Sheet

Unit price

0,055 €

Stock: 5000
Further delivery:
CW 11/2025

Minimum order quantity 100 units or
multiples of 100.
