> Power supplies>Power supplies>Switching power supplies for illumination, LED>Tridonic LED power supplies, 35,7W, not dimmable, IP20, constant current, LC 36W 700-850mA flexC SRSN C4 series>87501089

Manufacturers

87501089

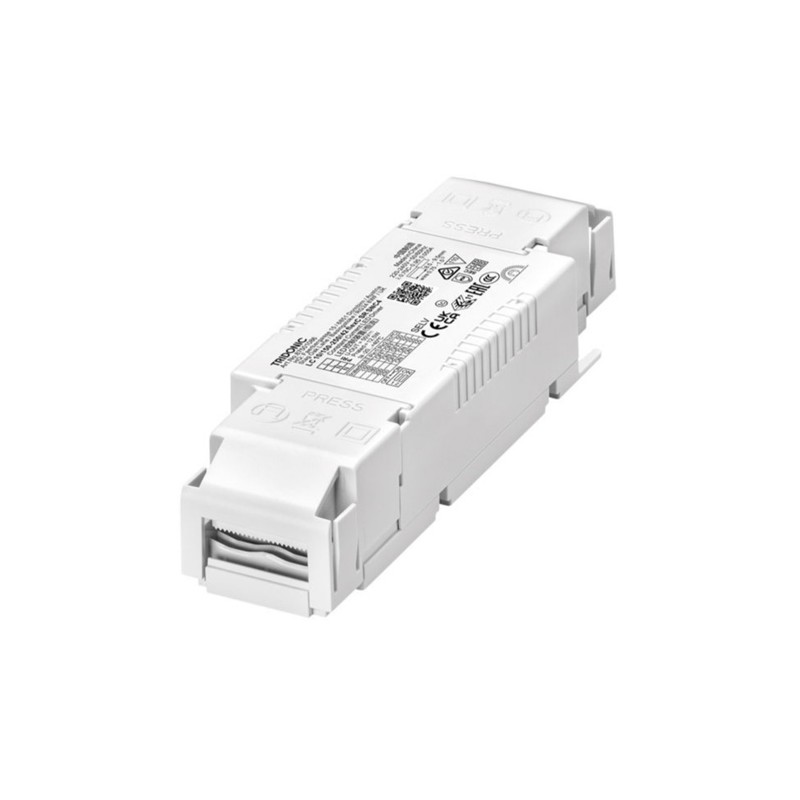

Tridonic LED power supplies series LC 36W 700-850mA flexC SRSN C4

LED power supplies with a Dali-2 push-dimm connection and a output power of 35,7W. These power supplies for lights in a plastic housing have a programmable and choosable output current, as well as they are suitable for DC application. We offer the type 87501089 of the LC 36W 700-850mA flexC SRSN C4 series of Tridonic Deutschland.

  • operation type: CC
  • output power: 35,7W
  • output current: 0,7A
  • output voltage: 24 to 42V

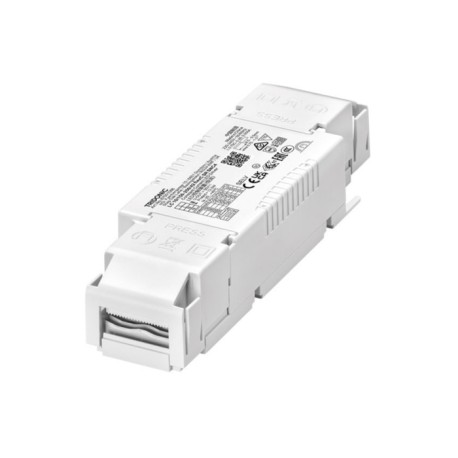

87501089, Tridonic LED power supplies, 35,7W, not dimmable, IP20, constant current, LC 36W 700-850mA flexC SRSN C4 series

87501089

250791 87501089 87501089 Tridonic LED power supplies series LC 36W 700-850mA flexC SRSN C4. LED power supplies with a Dali-2 push-dimm connection and a output power of 35,7W. These power supplies for lights in a plastic housing have a programmable and choosable output current, as well as they are suitable for DC application. We offer the type 87501089 of the LC 36W 700-850mA flexC SRSN C4 series of Tridonic Deutschland. operation type: CC output power: 35,7W output current: 0,7A output voltage: 24 to 42V

Specifications

Output voltage [V] 24...42
Input voltage range [V] 198...264
Efficiency [%] 90,5
Output current [A] 0,7
Output power [W] 35,7
Data Sheet

Unit price

8,59 €

Stock: 6
Further delivery:
CW 23/2025
