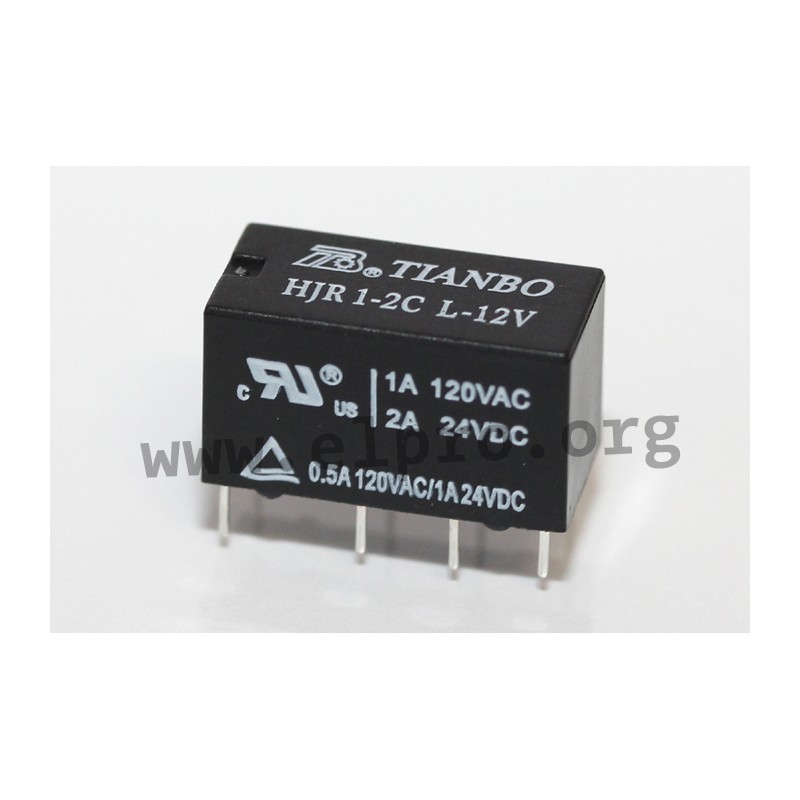

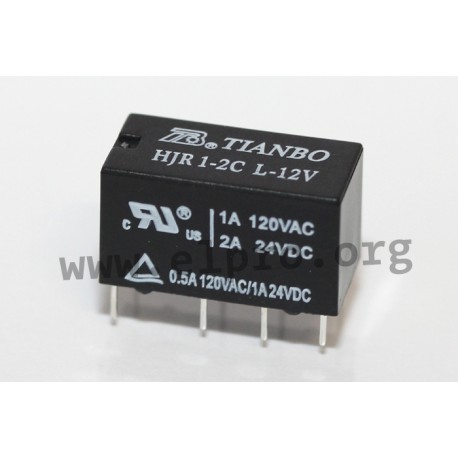

HJR1-2C L-05V DC

rated current: 2A

* wash tight construction RTIII (IP67)
* low height

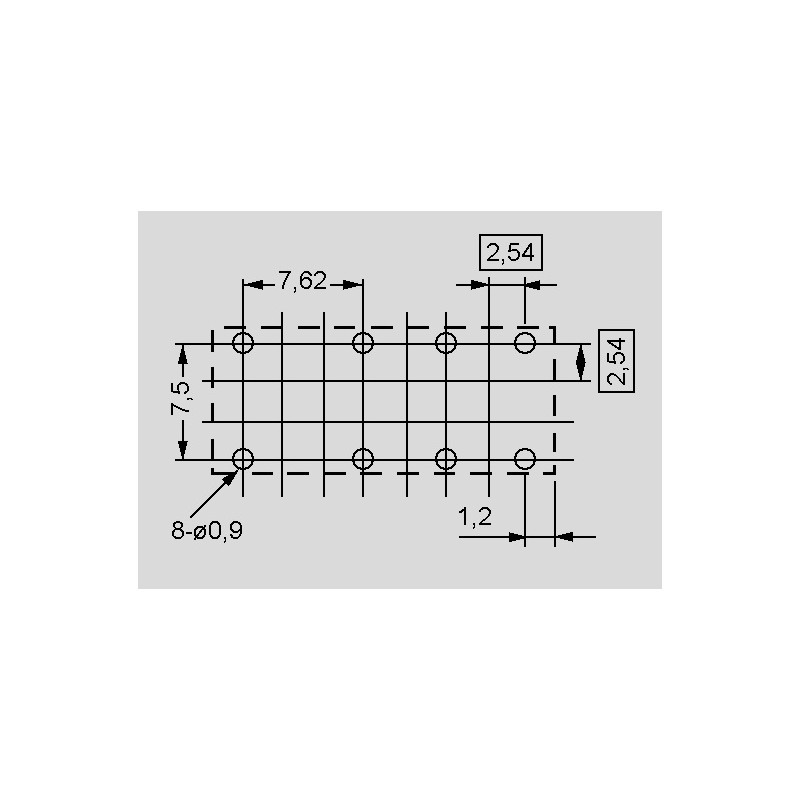

* PCB mounting or insertable in a 16-pole DIP/DIL socket

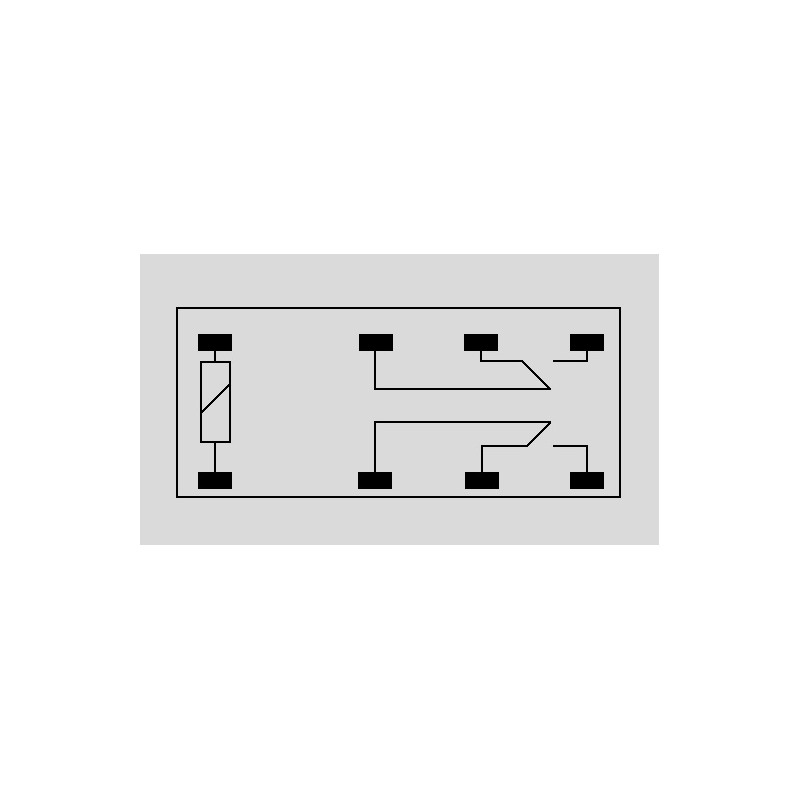

* contact: DPDT
* contact material: AgNiAu
* rated current: 2A
* max. switching current: 2A
* max. switching voltage: 240V AC, 60V DC
* max. switching power: 120VA/60W
* operate/release time: 6/4ms
* testing voltage coil/contact: 1000V AC
* testing voltage contact/contact: 500V AC
* lifetime mechanical: 1x107 operations
* lifetime electrical: 1x105 operations

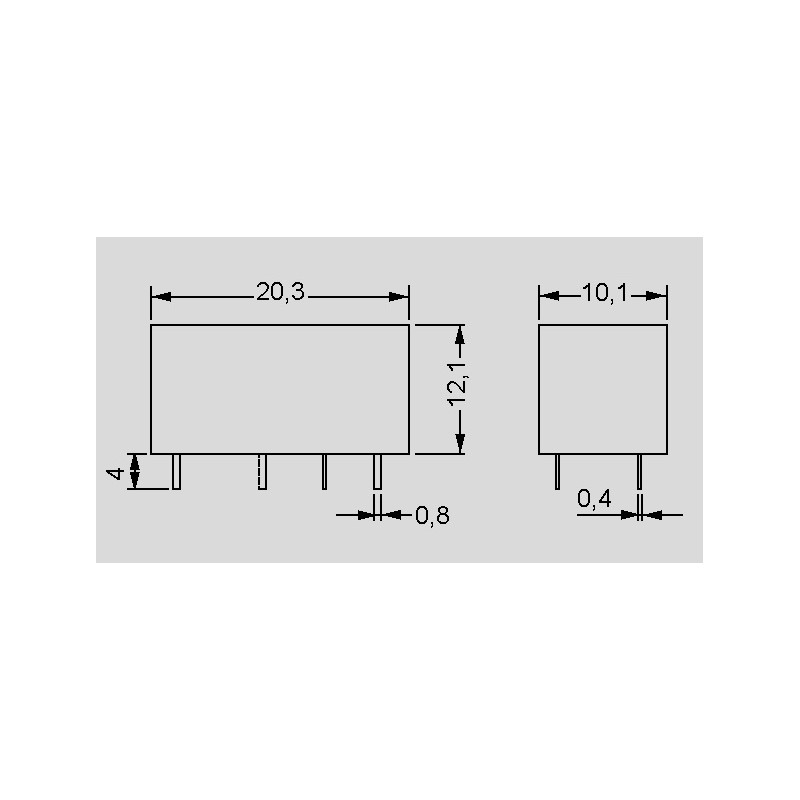

* housing: 20,3x12,1x10,1mm
* operating temperature: -30...+70°C
* by Tianbo
* weight, approx.: 5g
HJR1-2C_

HJR1-2C L-05V DC

38813 HJR1-2C L-05V DC HJR1-2C-L-05VDC HJR1-2C-L-05VDC rated current: 2A. * wash tight construction RTIII (IP67)* low height* PCB mounting or insertable in a 16-pole DIP/DIL socket* contact: DPDT* contact material: AgNiAu* rated current: 2A* max. switching current: 2A* max. switching voltage: 240V AC, 60V DC* max. switching power: 120VA/60W* operate/release time: 6/4ms* testing voltage coil/contact: 1000V AC* testing voltage contact/contact: 500V AC* lifetime mechanical: 1x107 operations* lifetime electrical: 1x105 operations* housing: 20,3x12,1x10,1mm* operating temperature: -30...+70°C* by Tianbo* weight, approx.: 5g

Specifications

manufacturer
Manufacturer's name HJR1-2C-L-05VDC
Nominal capacity [W] 0,2
Switching current [A] 2
Response voltage [V] 3,8...8,5
Release voltage [V] ≥ 0,5
Data Sheet

Unit price

0,644 €

Stock: 2100
Next incoming goods:
CW 06/2025
2000 units

Further delivery:
CW 16/2025

Minimum order quantity 5 units or
multiples of 5.
