> Passive elements>Fuses>Thermal cutoffs>Therm-O-Disc thermal cutoffs, micro, axial, 10A, E4A series>G4 84°C

Manufacturers

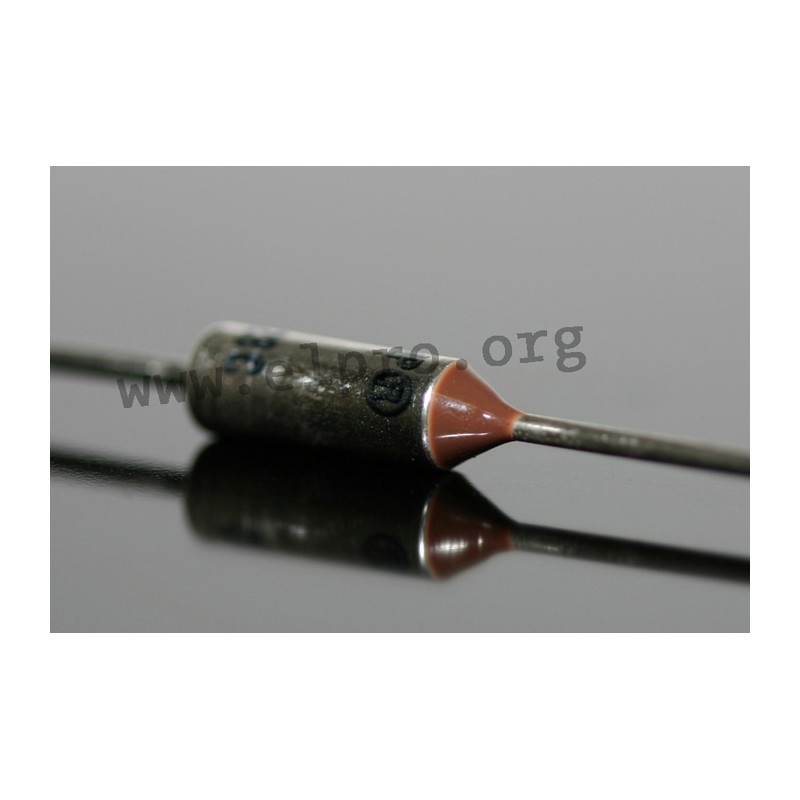

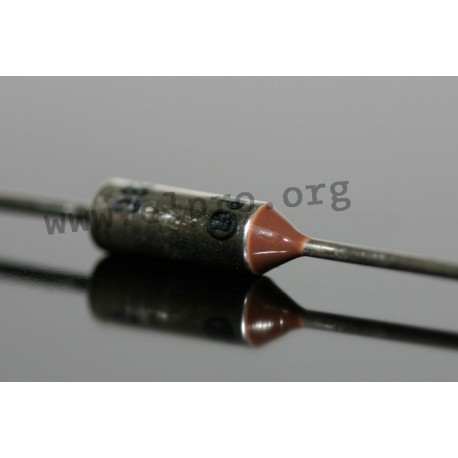

G4 84°C

axial, 10A

• for installation on or in the heating device of electric household appliances, transformers and all types of devices
• switches off devices if the premissible operating temperature is exceeded
• after activating, the fuse must be replaced
• secured in dust and dirt proof enclosure
• reacts to surrounding temperatures and is conditionally current sensitive during rated loads
• contact: NC
• rated current
VDE, CSA: 10A
UL: 8A
• rated voltage: 250V AC
G4 series

G4 84°C

27395 G4 84°C G4 84°C axial, 10A. * for installation on or in the heating device of electric household appliances, transformers and all types of devices* switches off devices if the premissible operating temperature is exceeded* after activating, the fuse must be replaced* secured in dust and dirt proof enclosure* reacts to surrounding temperatures and is conditionally current sensitive during rated loads* contact: NC* rated current VDE, CSA: 10AUL: 8A* rated voltage: 250V AC

Discontinued items. Only remainder of stock available.

Specifications

Design axial
Nominal voltage [V] 250
Nominal temperature [°C] 84
Limiting temperature [°C] 125
Rated current [A] 10
Continuous operating temperature [°C] 69
Data Sheet

Unit price

0,32 €

Stock: 14
