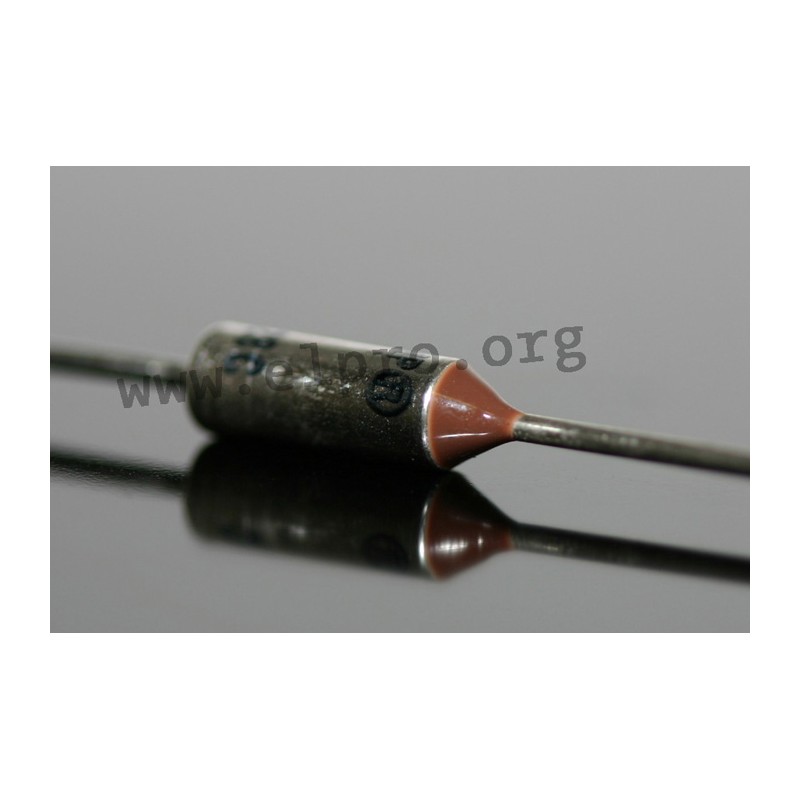

G4 229°C

axial, 10A

* for installation on or in the heating device of electric household appliances, transformers and all types of devices
* switches off devices if the premissible operating temperature is exceeded
* after activating, the fuse must be replaced
* secured in dust and dirt proof enclosure
* reacts to surrounding temperatures and is conditionally current sensitive during rated loads
* contact: NC
* rated current
VDE, CSA: 10A
UL: 8A
* rated voltage: 250V AC

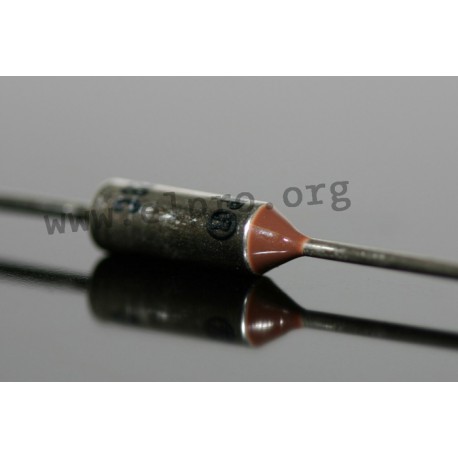

G4 series

G4 229°C

27369 G4 229°C G4 229°C axial, 10A. * for installation on or in the heating device of electric household appliances, transformers and all types of devices* switches off devices if the premissible operating temperature is exceeded* after activating, the fuse must be replaced* secured in dust and dirt proof enclosure* reacts to surrounding temperatures and is conditionally current sensitive during rated loads* contact: NC* rated current VDE, CSA: 10AUL: 8A* rated voltage: 250V AC

Discontinued items. Only remainder of stock available.

Specifications

Design axial
Nominal voltage [V] 250
Nominal temperature [°C] 229
Limiting temperature [°C] 450
Rated current [A] 10
Continuous operating temperature [°C] 200
