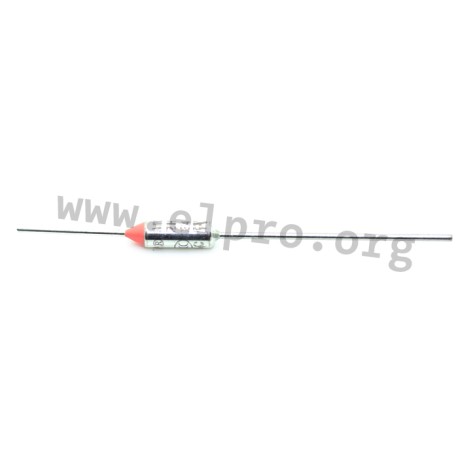

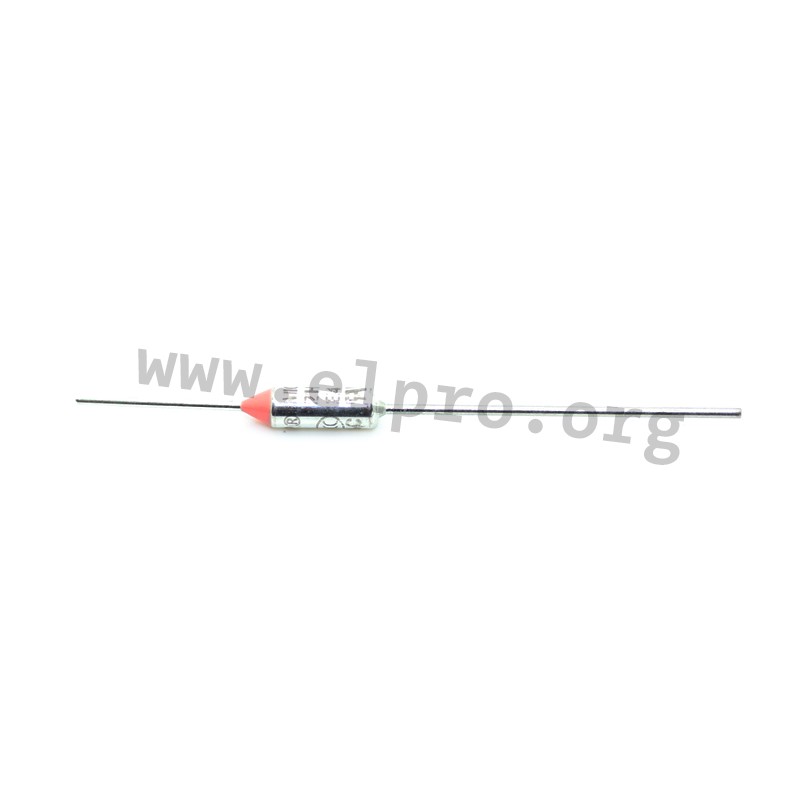

E4A00216C

Micro thermal cutoffs

10A resp. 8A thermal fuses in a secured, dust and dirt proofed enclosure for the installation on or in the to be protected devices like transformers or electrical appliances. These fuses interrupt the electrical circuit when the temperature reaches a specific threshold. They need to be replaced when triggered.

  • contact: NC
  • rated current VDE, CSA: 10A
  • rated current UL: 8A
  • rated voltage: 250V AC
770.216, Therm-O-Disc thermal cutoffs, micro, axial, 10 (8)A, E4A series

E4A00216C

113488 E4A00216C 770.216 770.216 Micro thermal cutoffs. 10A resp. 8A thermal fuses in a secured, dust and dirt proofed enclosure for the installation on or in the to be protected devices like transformers or electrical appliances. These fuses interrupt the electrical circuit when the temperature reaches a specific threshold. They need to be replaced when triggered. contact: NC rated current VDE, CSA: 10A rated current UL: 8A rated voltage: 250V AC

Specifications

manufacturer
Manufacturer's name 770.216
Nominal temperature [°C] 216
Limiting temperature [°C] 375
Continuous operating temperature [°C] 191
Data Sheet

Unit price

0,596 €

Stock: 275
Further delivery:
CW 07/2025

Minimum order quantity 25 units or
multiples of 25.
