E4A00192C

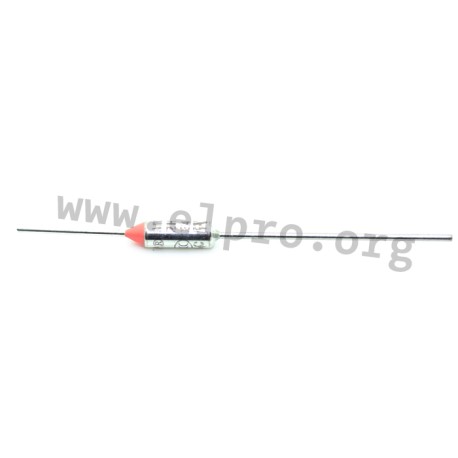

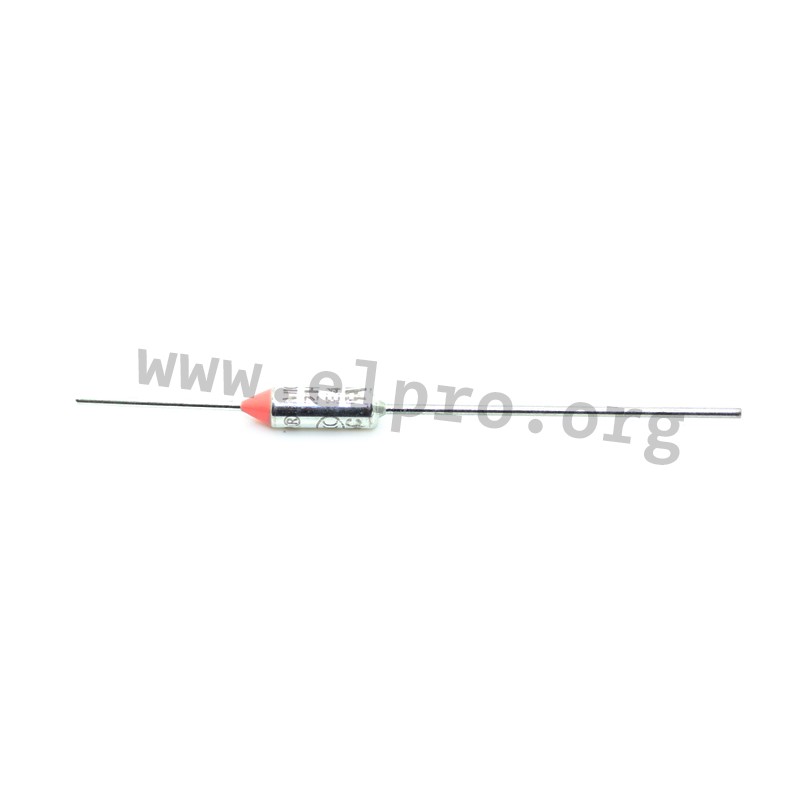

Micro thermal cutoffs

10A resp. 8A thermal fuses in a secured, dust and dirt proofed enclosure for the installation on or in the to be protected devices like transformers or electrical appliances. These fuses interrupt the electrical circuit when the temperature reaches a specific threshold. They need to be replaced when triggered.

  • contact: NC
  • rated current VDE, CSA: 10A
  • rated current UL: 8A
  • rated voltage: 250V AC
770.192, Therm-O-Disc thermal cutoffs, micro, axial, 10 (8)A, E4A series

E4A00192C

113487 E4A00192C 770.192 770.192 Micro thermal cutoffs. 10A resp. 8A thermal fuses in a secured, dust and dirt proofed enclosure for the installation on or in the to be protected devices like transformers or electrical appliances. These fuses interrupt the electrical circuit when the temperature reaches a specific threshold. They need to be replaced when triggered. contact: NC rated current VDE, CSA: 10A rated current UL: 8A rated voltage: 250V AC

Specifications

manufacturer
Manufacturer's name 770.192
Nominal temperature [°C] 192
Limiting temperature [°C] 210
Continuous operating temperature [°C] 167
Data Sheet

Unit price

0,596 €

Stock: 100
Further delivery:
CW 07/2025

Minimum order quantity 25 units or
multiples of 25.
