E4A00167C

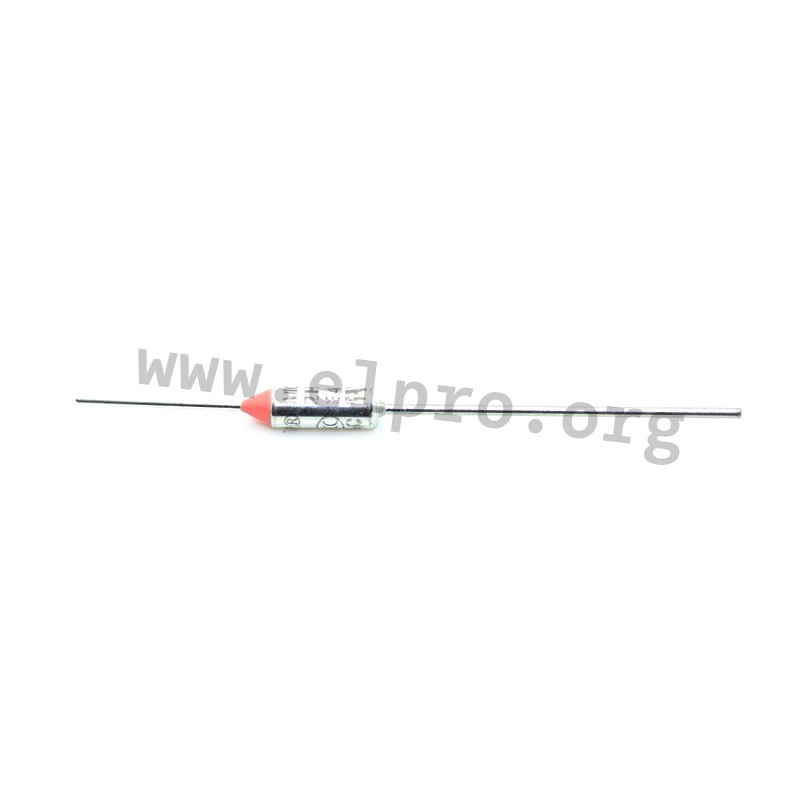

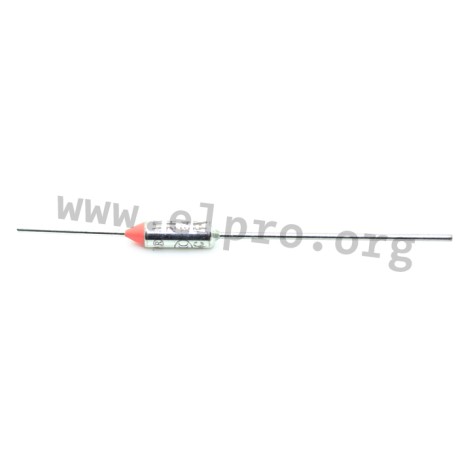

Micro thermal cutoffs

10A resp. 8A thermal fuses in a secured, dust and dirt proofed enclosure for the installation on or in the to be protected devices like transformers or electrical appliances. These fuses interrupt the electrical circuit when the temperature reaches a specific threshold. They need to be replaced when triggered.

  • contact: NC
  • rated current VDE, CSA: 10A
  • rated current UL: 8A
  • rated voltage: 250V AC
770.167, Therm-O-Disc thermal cutoffs, micro, axial, 10 (8)A, E4A series

E4A00167C

113486 E4A00167C 770.167 770.167 Micro thermal cutoffs. 10A resp. 8A thermal fuses in a secured, dust and dirt proofed enclosure for the installation on or in the to be protected devices like transformers or electrical appliances. These fuses interrupt the electrical circuit when the temperature reaches a specific threshold. They need to be replaced when triggered. contact: NC rated current VDE, CSA: 10A rated current UL: 8A rated voltage: 250V AC

Specifications

manufacturer
Manufacturer's name 770.167
Nominal temperature [°C] 167
Limiting temperature [°C] 210
Continuous operating temperature [°C] 142
Data Sheet

Unit price

0,596 €

Stock: 275
Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
