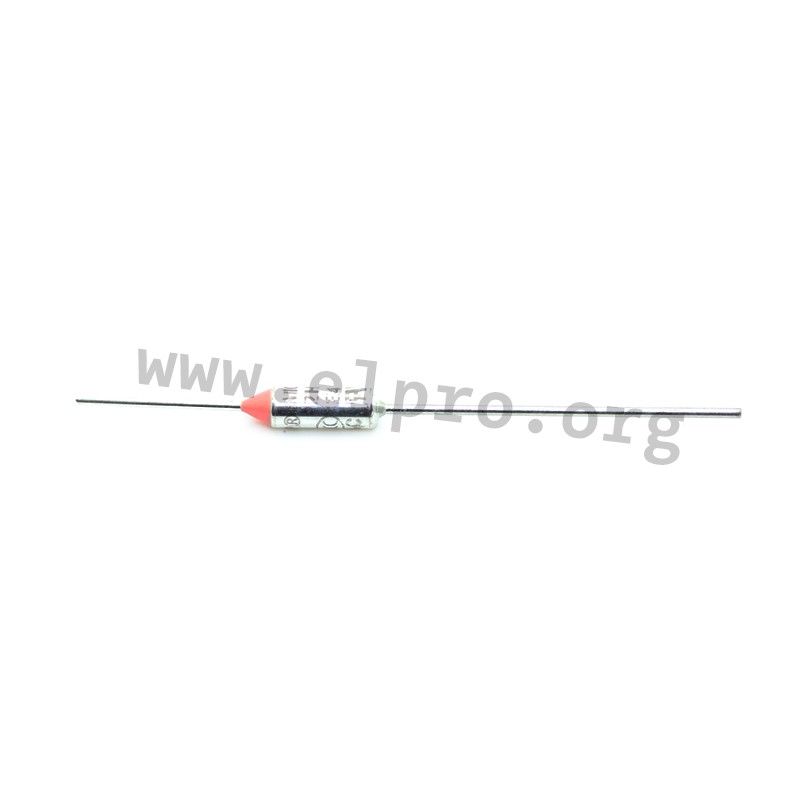

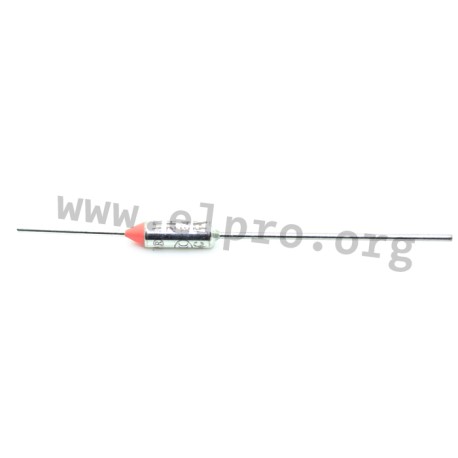

E4A00098C

Micro thermal cutoffs

10A resp. 8A thermal fuses in a secured, dust and dirt proofed enclosure for the installation on or in the to be protected devices like transformers or electrical appliances. These fuses interrupt the electrical circuit when the temperature reaches a specific threshold. They need to be replaced when triggered.

  • contact: NC
  • rated current VDE, CSA: 10A
  • rated current UL: 8A
  • rated voltage: 250V AC
770.098, Therm-O-Disc thermal cutoffs, micro, axial, 10 (8)A, E4A series

E4A00098C

113481 E4A00098C 770.098 770.098 Micro thermal cutoffs. 10A resp. 8A thermal fuses in a secured, dust and dirt proofed enclosure for the installation on or in the to be protected devices like transformers or electrical appliances. These fuses interrupt the electrical circuit when the temperature reaches a specific threshold. They need to be replaced when triggered. contact: NC rated current VDE, CSA: 10A rated current UL: 8A rated voltage: 250V AC

Specifications

manufacturer
Manufacturer's name 770.098
Nominal temperature [°C] 98
Limiting temperature [°C] 140
Continuous operating temperature [°C] 73
Data Sheet

Unit price

0,596 €

Stock: 525
Further delivery:
CW 17/2025

Minimum order quantity 25 units or
multiples of 25.
