V 23092-A1024-A201

rated current: 6A

* ultra-slim: 5mm
* cadmium-free contacts
* sensitive coil 170mW
* 4kV coil contact, 6/8mm clearance/creepage
* protection class II (VDE0631)
* contact: SPDT
* contact material: AgSnO2
* rated current: 6A
* max. switching current: 10A
* rated voltage: 250V AC
* max. switching voltage: 400V AC
* max. switching power: 1500VA
* creepage/clearance: 6/8mm
* operate/release time: 12/5ms
* testing voltage
coil/contact: 4000Vrms
opening contact: 1000Vrms
* lifetime
mechanical: 10x106 operations
electrical (5A/250V AC): 10x103 operations
* operating temperature: -40...+85°C
* solderability: 260°/5s
* weight approx.: 6g

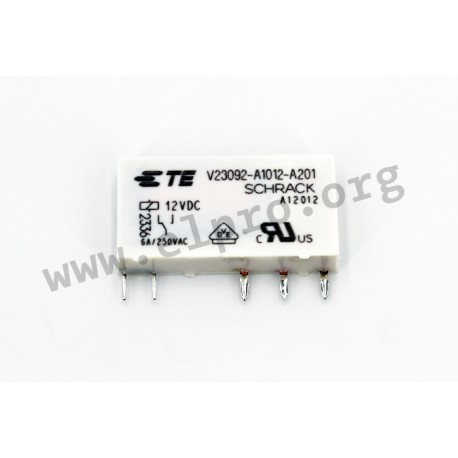

2-1393236-1, TE Connectivity PCB relays, 6A, 1 changeover contact, Schrack, SNR series

V 23092-A1024-A201

12053 V 23092-A1024-A201 2-1393236-1 2-1393236-1 rated current: 6A. * ultra-slim: 5mm* cadmium-free contacts* sensitive coil 170mW* 4kV coil contact, 6/8mm clearance/creepage* protection class II (VDE0631)* contact: SPDT* contact material: AgSnO2* rated current: 6A* max. switching current: 10A* rated voltage: 250V AC* max. switching voltage: 400V AC* max. switching power: 1500VA* creepage/clearance: 6/8mm* operate/release time: 12/5ms* testing voltage coil/contact: 4000Vrmsopening contact: 1000Vrms* lifetimemechanical: 10x106 operationselectrical (5A/250V AC): 10x103 operations* operating temperature: -40...+85°C* solderability: 260°/5s* weight approx.: 6g

Specifications

manufacturer
Manufacturer's name 2-1393236-1
Rated current [mA] 7,1
Switching current [A] 6
Nominal resistance [Ω] 3390
Response voltage [V] 16,8...53,7
Max. switching voltage [V] 240
Max. switching power [VA] 1500
Data Sheet

Unit price

4,29 €

Stock: 822
Further delivery:
CW 19/2025

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
