RZ01-1C4-D012

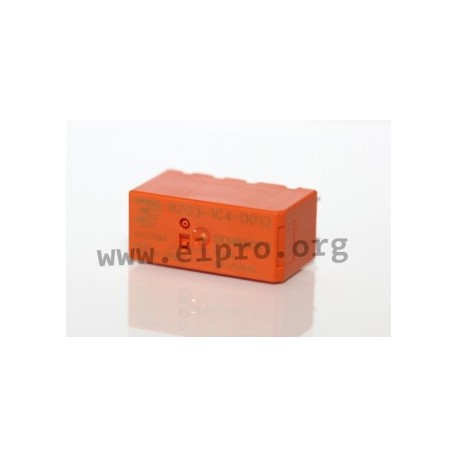

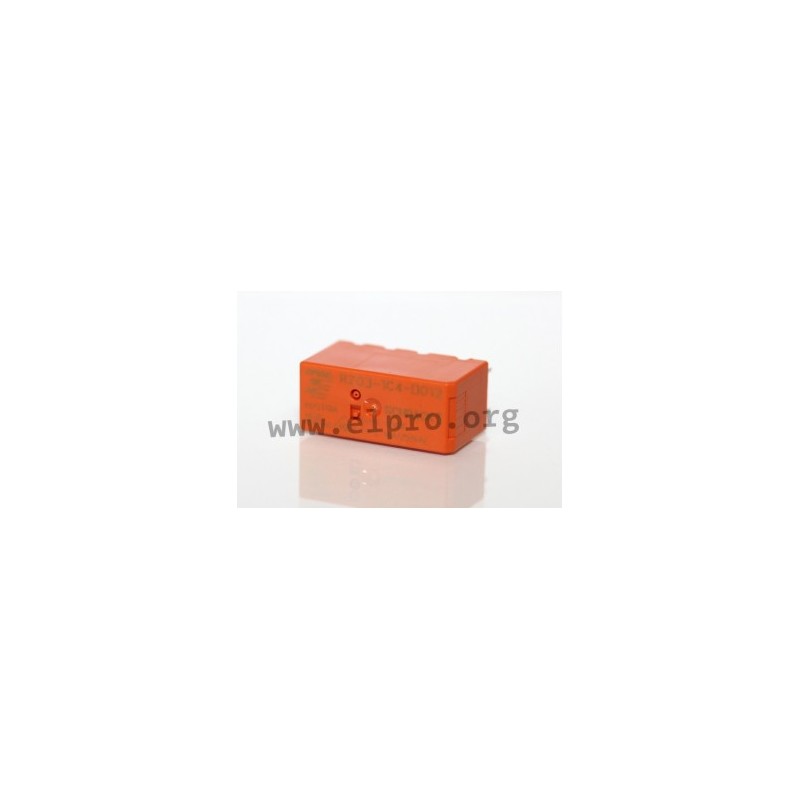

TE Connectivity PCB relay series RZ

  • relays in a compact enclosure (29x12,7x15,7mm)
  • with a high sensivity coil (400mW) and 1 changeover (RZ-_1C_) or 1 normally open contact (RZ_-1A_)
  • compliant with protection class RTII (IEC 61810)
  • surge voltage of 5kV AC between coil and contacts
  • contact material: AgNi 90/10 (RZ_-_4) resp. AgSnO2 (RZ_-_3)
  • switching current: 12 or 16A
1-1415899-0, TE Connectivity PCB relays, 12 to 16A, 1 changeover or 1 normally open contact, RZ series

RZ01-1C4-D012

38822 RZ01-1C4-D012 1-1415899-0 1-1415899-0 TE Connectivity PCB relay series RZ. relays in a compact enclosure (29x12,7x15,7mm) with a high sensivity coil (400mW) and 1 changeover (RZ-_1C_) or 1 normally open contact (RZ_-1A_) compliant with protection class RTII (IEC 61810) surge voltage of 5kV AC between coil and contacts contact material: AgNi 90/10 (RZ_-_4) resp. AgSnO2 (RZ_-_3) switching current: 12 or 16A

Specifications

manufacturer
Manufacturer's name 1-1415899-0
Coil resistance [Ω] 360
Response voltage [V] 8,4
Release voltage [V] 1,2
Nominal capacity [mW] 400
Data Sheet

Unit price

1,31 €

Stock: 230
Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
