RZ01-1A4-D024

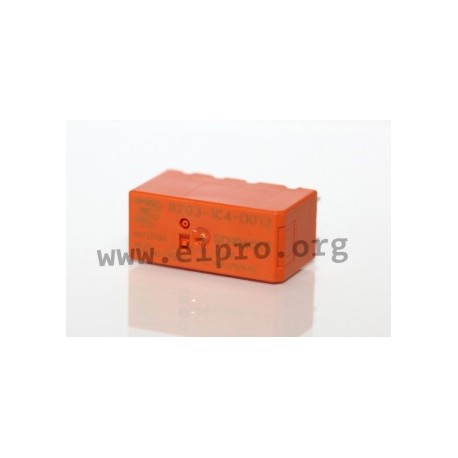

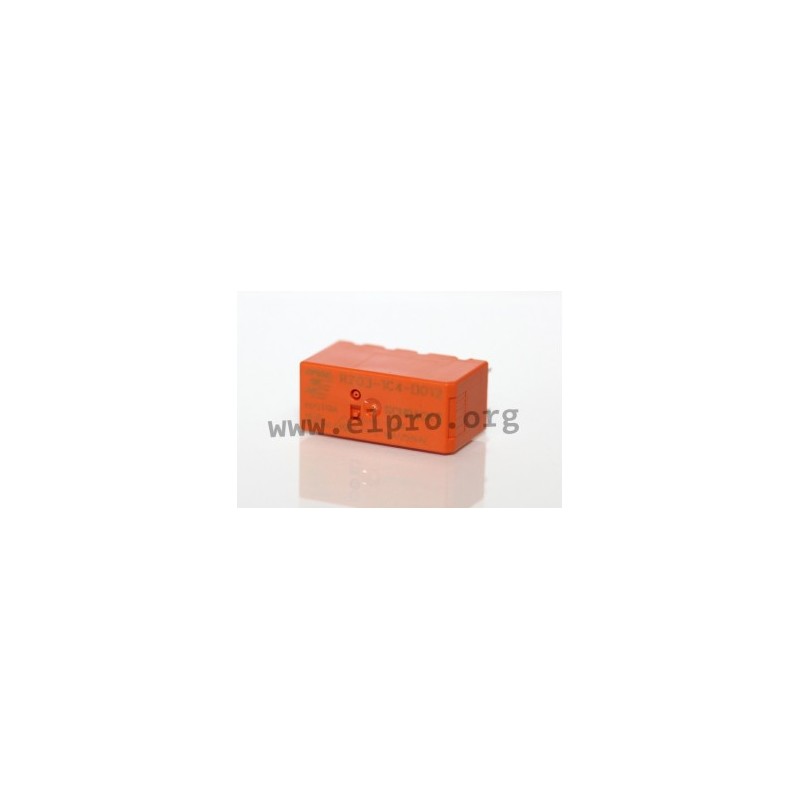

TE Connectivity PCB relay series RZ

  • relays in a compact enclosure (29x12,7x15,7mm)
  • with a high sensivity coil (400mW) and 1 changeover (RZ-_1C_) or 1 normally open contact (RZ_-1A_)
  • compliant with protection class RTII (IEC 61810)
  • surge voltage of 5kV AC between coil and contacts
  • contact material: AgNi 90/10 (RZ_-_4) resp. AgSnO2 (RZ_-_3)
  • switching current: 12 or 16A
0-1415899-5, TE Connectivity PCB relays, 12 to 16A, 1 changeover or 1 normally open contact, RZ series

RZ01-1A4-D024

38821 RZ01-1A4-D024 0-1415899-5 0-1415899-5 TE Connectivity PCB relay series RZ. relays in a compact enclosure (29x12,7x15,7mm) with a high sensivity coil (400mW) and 1 changeover (RZ-_1C_) or 1 normally open contact (RZ_-1A_) compliant with protection class RTII (IEC 61810) surge voltage of 5kV AC between coil and contacts contact material: AgNi 90/10 (RZ_-_4) resp. AgSnO2 (RZ_-_3) switching current: 12 or 16A

Specifications

manufacturer
Manufacturer's name 0-1415899-5
Coil resistance [Ω] 1440
Response voltage [V] 16,8
Release voltage [V] 2,4
Nominal capacity [mW] 400
Data Sheet

Unit price

1,54 €

Stock: 55
Further delivery:
CW 06/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
